CGS365HQ0 01 – COOKTOP, LITERATURE

CGS365HQ0 01 – COOKTOP, LITERATURE

Written by

in

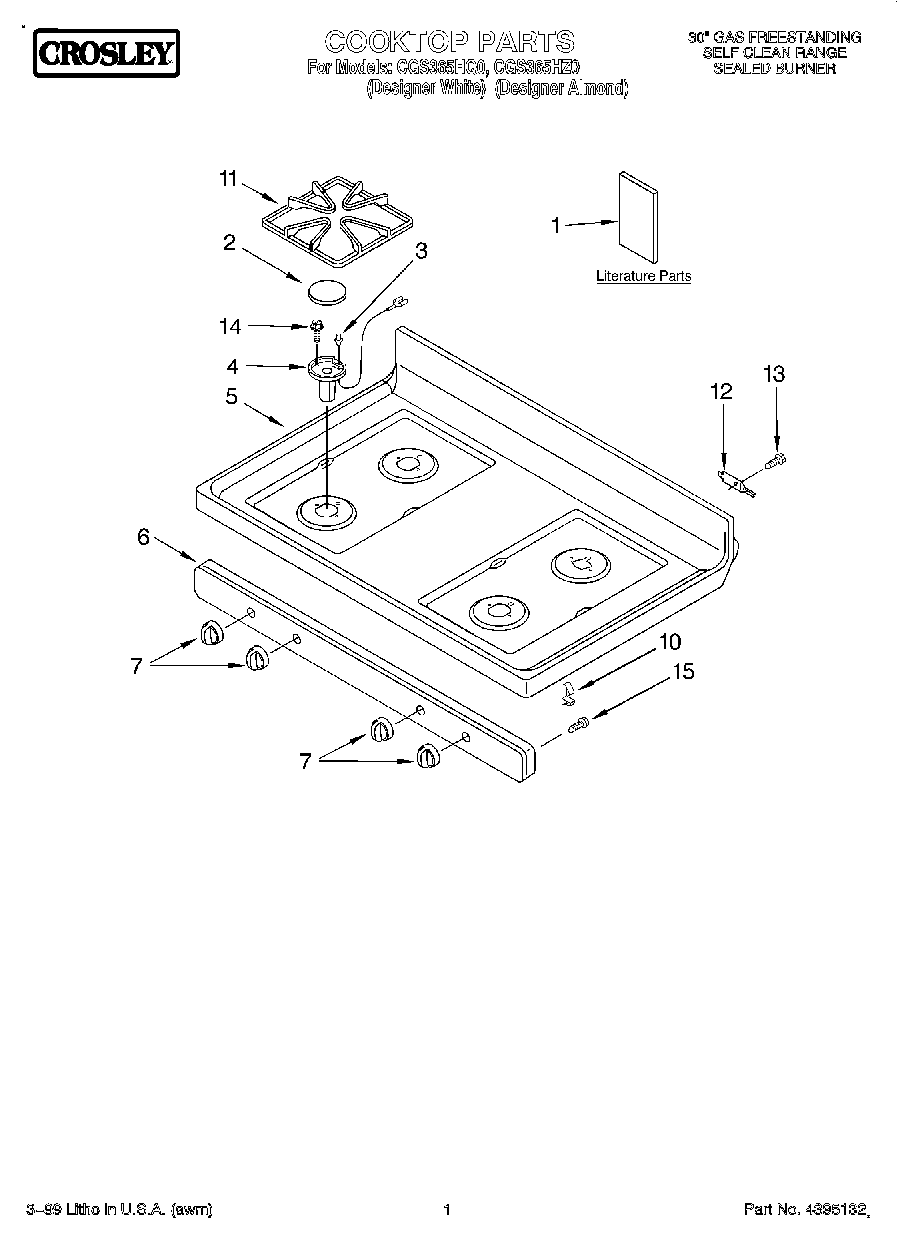

CGS365HQ0 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Tech Sheet)
1Guide, Use & Care
1Literature Parts (Instructions, Installation)
1Literature (Installation, Instructions (Template))
2(Cap, Burner Small (1)) (Gray)
2Cap, Burner (Large (3) (Black))
2Cap, Burner Large (3) (Gray)
2Cap, Burner (Small (1) (Black))
3W11032529 Whirlpool Surface Igniter
3W11122877 Whirlpool Surface Igniter
3W11117434 Whirlpool Surface Igniter
3W11087383 Whirlpool Surface Igniter
4Burner, 6,500 BTU (RR)
4WP8053360 Whirlpool Burner Head
5Cooktop (White)
5Cooktop (Almond)
6Panel, Manifold (Almond Model)
6WP8523854 Whirlpool Manifold Panel
7WP3186135 Whirlpool Control Knob
7Knob, Surface (4) (Almond)
10Clip – Mounting
11W10837340 Whirlpool Grate Kit
11WPW10268483 Whirlpool Grate Kit
12WP3195060 Whirlpool Cooktop Pin
13SCREW
14WP3400861 Whirlpool Screw
15WP3196557 Whirlpool Screw
