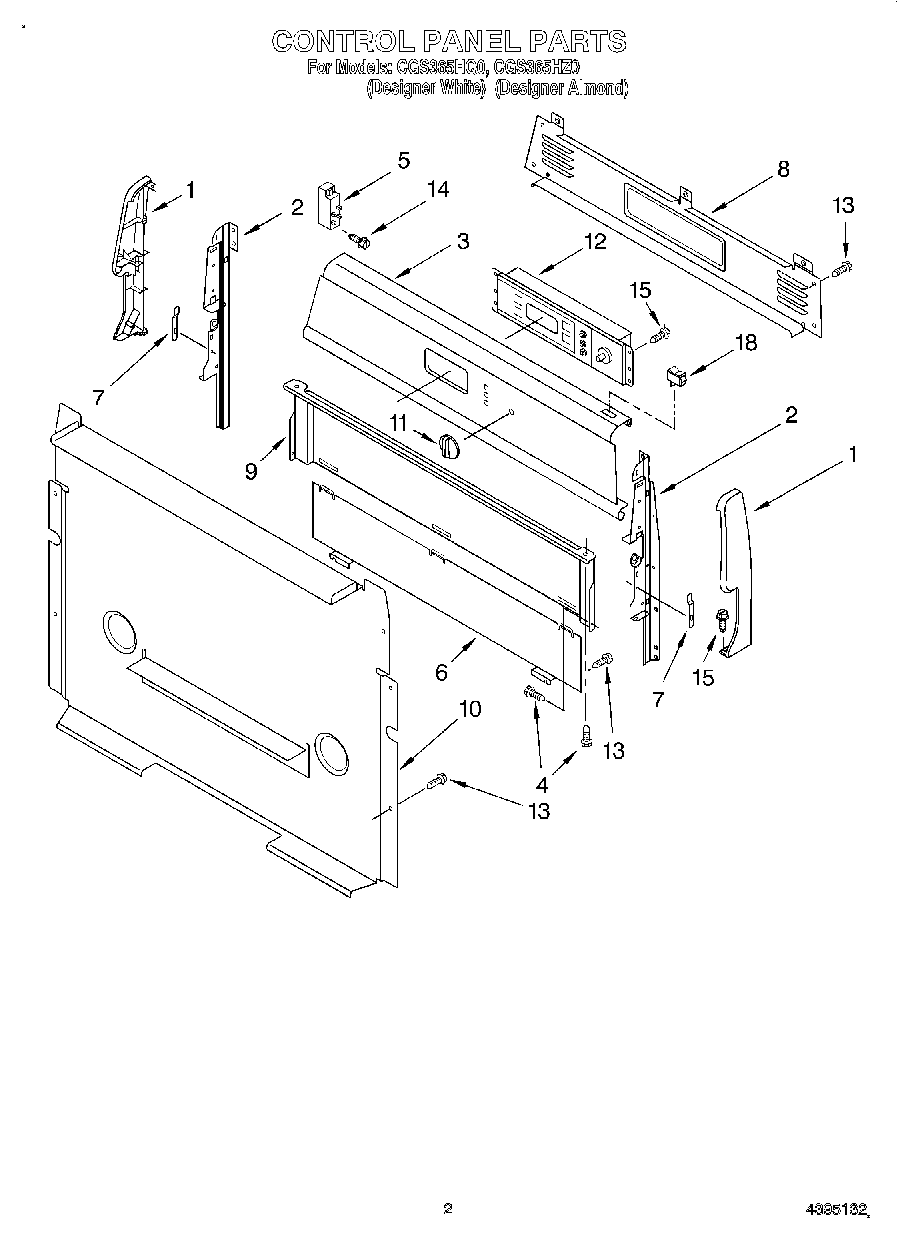

CGS365HQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Almond Left Hand)
1Endcap (Almond Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Almond)
3Panel, Backguard (White)
4Screw
5WP8053421 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11Knob, 150 Control (Almond)
11Knob, 150 Control (White)
12Control, Range (White)
12Control, Range (Almond)
13SCREW
14WPY706189 Whirlpool Stove Screw
15WP3196557 Whirlpool Screw
183149360 Whirlpool Light Switch
18Switch, Rocker (Almond)
