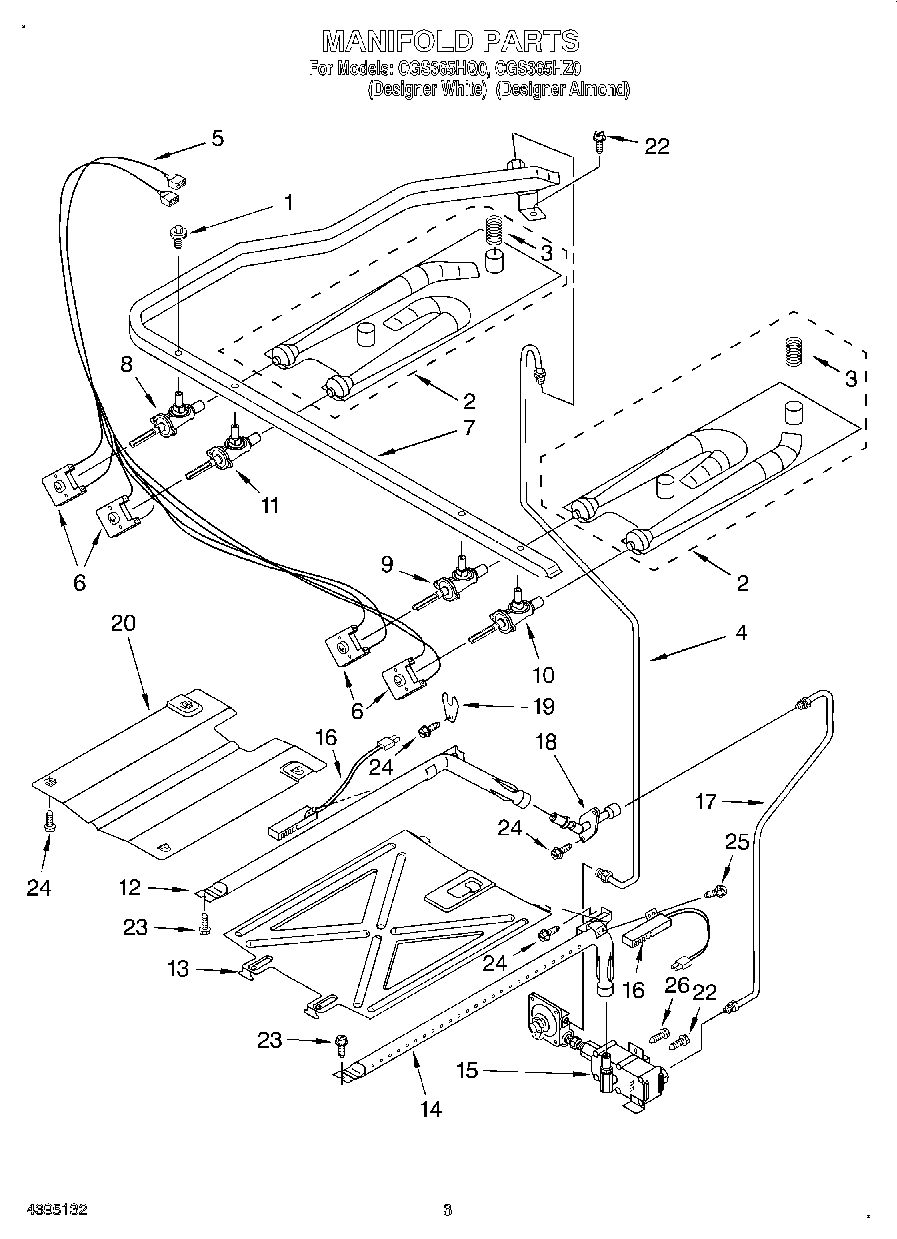

CGS365HQ0 03 – MANIFOLD

Products

Position	Product
1	WP3186217 Whirlpool Screw
2	Plate, Venturi (Includes No. 3) (Right Hand)
2	Plate, Venturi (Includes No. 3) (Left Hand)
3	Spring, Seal (4)
4	Tubing (Manifold to Regulator)
5	Harness, Igniter
6	Switch, Spark
7	Pipe, Manifold
8	Valve, 7,500 BTU (LR)
10	Valve, 6,500 BTU (RR)
11	Valve, 9500 BTU (LF)
12	Burner, Broiler
13	Spreader, Flame (Oven)
14	Burner, Bake
15	Valve, Gas Combo
16	WP3186491 Whirlpool Oven Igniter
17	Tubing (Valve To Broiler Fitting)
18	Fitting, Broiler
19	Cover, Igniter
20	W10137062 Whirlpool Burner Baffle
23	3196265 Whirlpool Oven Screw
24	SCREW
25	W11684507 Whirlpool Screw
26	Spuds, Natural Gas (Kit of 4)
26	Spuds, LP Gas (Kit of 4)
26	WP3196183 Whirlpool Screw
