CGS365HQ0 06 – DOOR, OPTIONAL

CGS365HQ0 06 – DOOR, OPTIONAL

Written by

in

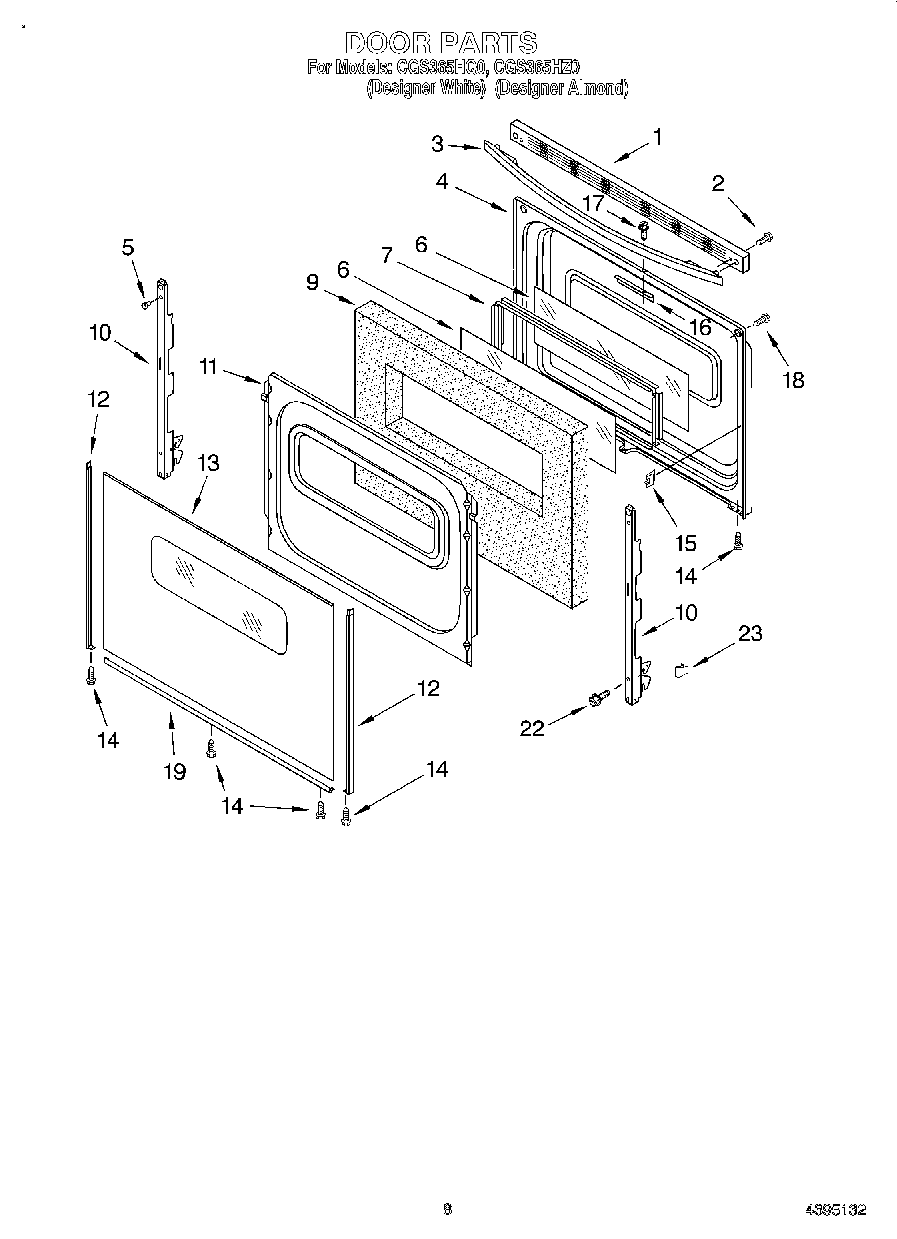

CGS365HQ0 06 – DOOR, OPTIONAL

Products

Position	Product
1	WPW10016370 Whirlpool Door Trim
1	Trim, Door Top (Almond)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Almond)
4	Liner, Door
5	238614 Whirlpool Bumper Hinge
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
9	Insulation, Door
10	WP8053807 Whirlpool Oven Door Hinge
11	9761499 Whirlpool Oven Retainer
13	Glass, Outer Door (Almond)
13	WP9762476 Whirlpool Door Glass
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	8184860 Whirlpool Oven Door Trim
19	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
22	WP3196175 Whirlpool Screw
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Green)
23	18 Ga. 80~c Rating (Red)
23	Wire (14 Ga. 200 c Brown)
23	1
23	8212471 Whirlpool Oven Paint
23	Grease
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	WPL 8053586
23	72113 Whirlpool Touch-Up Paint
23	3196896 Whirlpool Clip
23	WPL 8053527
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	350942 Whirlpool Spray Paint
23	WPL 72112
23	Platinum (Uncut)
23	Enamal, Toast (1 Qt. Uncut)
23	Paint, Spray (13 Oz.) (Platinum)
23	Toast
23	Golden Harvest (Uncut)
23	Golden Harvest
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	511873 Whirlpool Refrigerator Paint
23	WPL 799832
23	16515 Whirlpool Clip
23	3400964 Whirlpool Oven Clip
23	WP3196925 Whirlpool Clip Assembly
23	814381 Whirlpool Pin
23	Paint, Spray 13 Oz. (Avocado)
23	paint, spray 13 oz. (coffee)
23	Paint, Touch-Up 1/2 Oz. (Coffee)
23	72109 Whirlpool Dacor Avocado Touch-Up Paint
23	285006 Whirlpool Spray
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25` Roll (Black 14 Ga.)
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPW10208653 Whirlpool Insulation
23	350930 Whirlpool White Spray Paint
