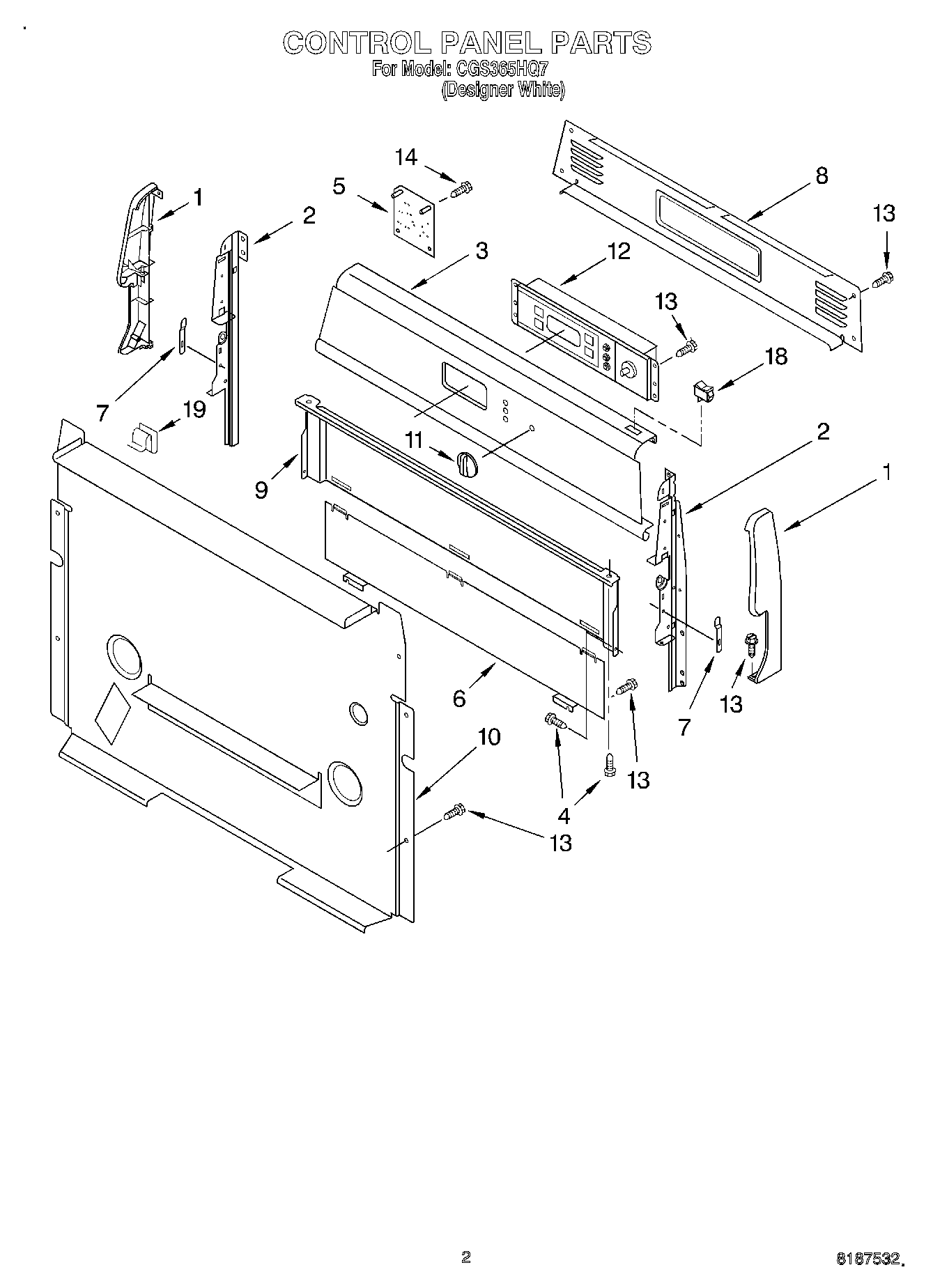

CGS365HQ7 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (White)
4	Screw
5	WPW10331686 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	3196200 Whirlpool Clip
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
11	Knob, 150 Control (White)
12	Control, Range (White)
13	SCREW
14	WP3196557 Whirlpool Screw
18	3149360 Whirlpool Light Switch
19	WP8273564 Whirlpool Clip
