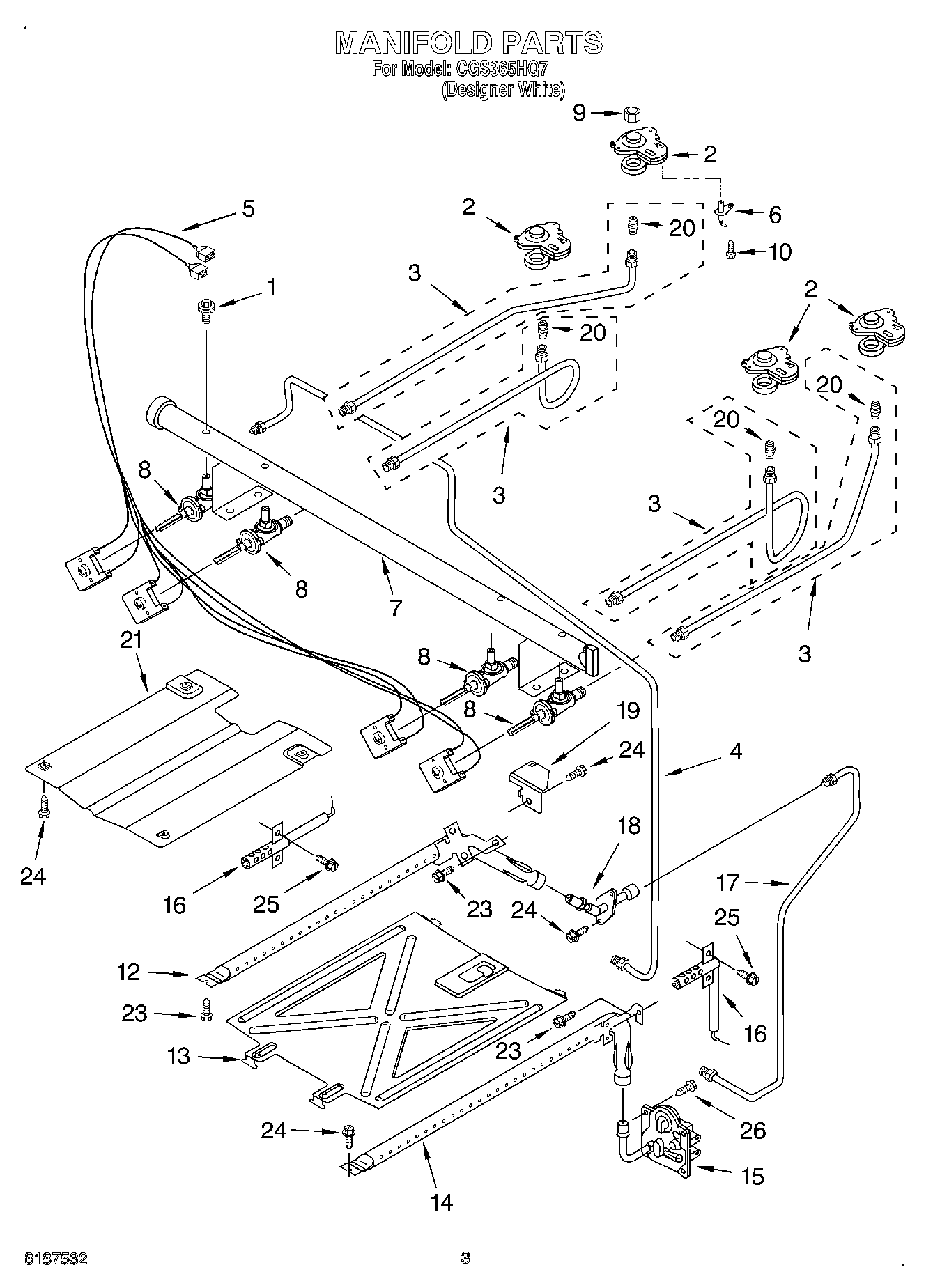

CGS365HQ7 03 – MANIFOLD

Products

PositionProduct
1WP8273096 Whirlpool Screw
2WP8273700 Whirlpool Base Burner
2Burner Base (Small (1))
3Tubing, Burner W/Orifice (Right Rear)
3Tubing, Burner W/Orifice (Left Rear)
3Tubing, Burner W/Orifice (Left Front)
3Tubing, Burner W/Orifice (Right Front)
4Tubing (Manifold to Regulator)
5Harness, Igniter (Incl. Switches)
6WP8523793 Whirlpool Oven Surface Igniter
7Pipe, Manifold
8Valve
9Nut (4)
10WP8273062 Whirlpool Screw
12WP8054078 Whirlpool Broiler Burner
13Spreader, Flame (Oven)
148190618 Whirlpool Gas Range Oven Burner Assembly with Spark Igniter
15WPW10293048 Whirlpool Gas Valve
16WP8054129 Whirlpool Oven Igniter
17Tubing (Broiler Fitting To Valve)
18Fitting, Broiler
19Cover, Igniter
20WP8273067 Whirlpool Orifice
20WP8273066 Whirlpool Orifice
20WP8273065 Whirlpool Orifice
21W10137062 Whirlpool Burner Baffle
233196265 Whirlpool Oven Screw
24SCREW
25W11684507 Whirlpool Screw
26Spuds, LP Gas (Kit of 4)
26WP3400016 Whirlpool Screw Assembly
