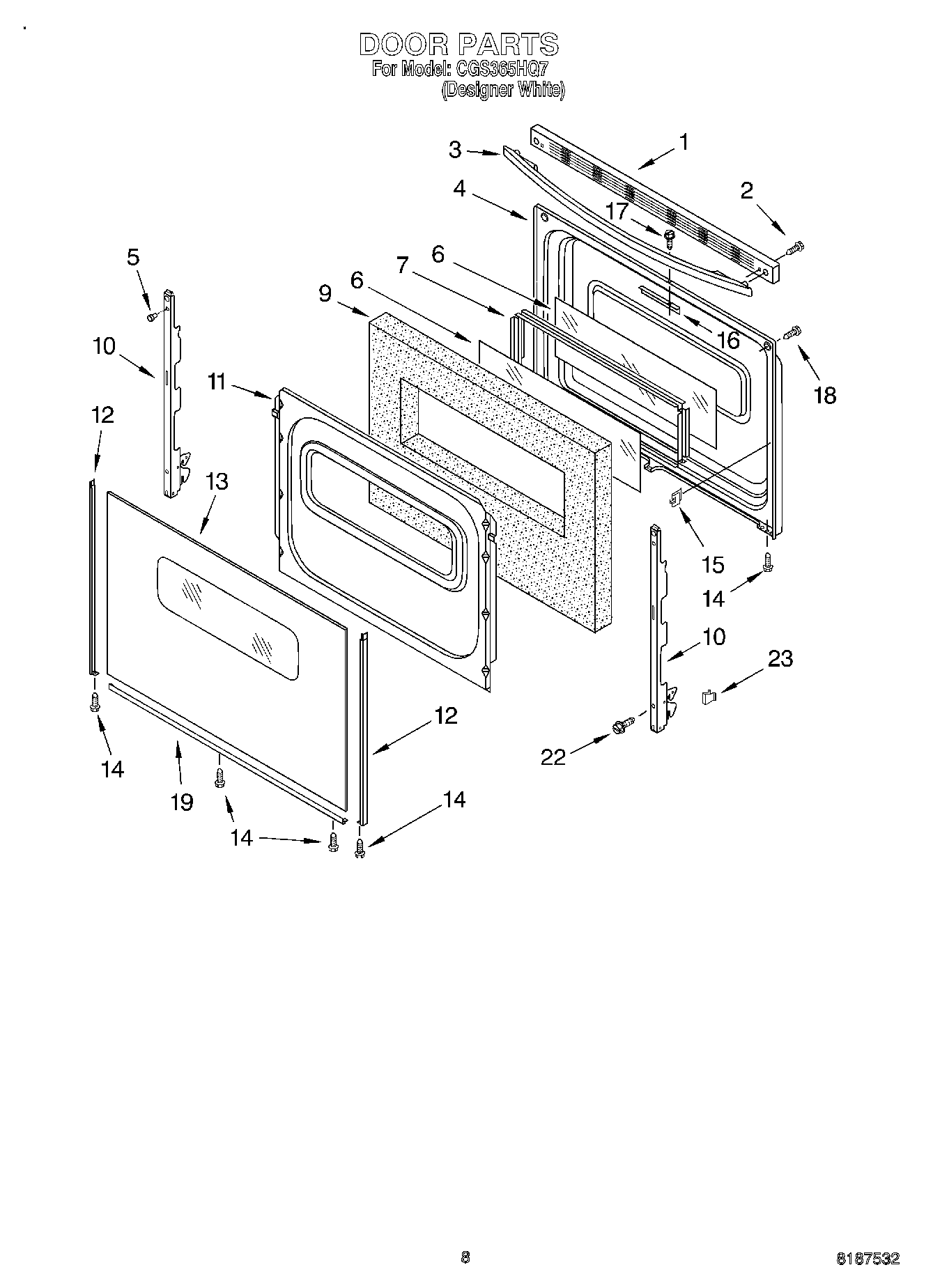

CGS365HQ7 06 – DOOR, OPTIONAL

Products

Position	Product
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	238614 Whirlpool Bumper Hinge
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
9	WPW10278991 Whirlpool Insulation
10	WP8053807 Whirlpool Oven Door Hinge
11	9761499 Whirlpool Oven Retainer
13	WP9762476 Whirlpool Door Glass
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
22	WP3196175 Whirlpool Screw
23	1
23	8212471 Whirlpool Oven Paint
23	3196696 Whirlpool Clip
23	Grease
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	WPL 8274195
23	350942 Whirlpool Spray Paint
23	3196896 Whirlpool Clip
23	WPL 8053527
23	WPL 8273897
23	WPL 8273966
23	WPL 8273967
23	Wire (14 Ga. 200 c Brown)
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire, 25` Roll (Black 14 Ga.)
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPW10208653 Whirlpool Insulation
23	WPL 799832
23	511873 Whirlpool Refrigerator Paint
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25“ Roll (White 14 GA.)
23	285006 Whirlpool Spray
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	16515 Whirlpool Clip
23	3400964 Whirlpool Oven Clip
23	WP3196925 Whirlpool Clip Assembly
23	814381 Whirlpool Pin
23	350930 Whirlpool White Spray Paint
