CGS365HQ8 06 – DOOR PARTS, MISCELLANEOUS PARTS

CGS365HQ8 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

CGS365HQ8 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI21450A5
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	Grease
	WPL ARI21451A1
	WPL ARI21449A1
	WPL ARI21448A5
	WPL ARI21447A1
	WPL ARI21446A5
	WPL ARI21445A3
	WPL ARI21444A4
	WPL 8524207
	WPL 8523424
	TIE,WIRE
	8523599 Whirlpool Oven Wire Harness
	3196896 Whirlpool Clip
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	285006 Whirlpool Spray
	8528351 Whirlpool Clip
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	814381 Whirlpool Pin
	FOIL, ALUMINUM OVEN (18“ X 25 )

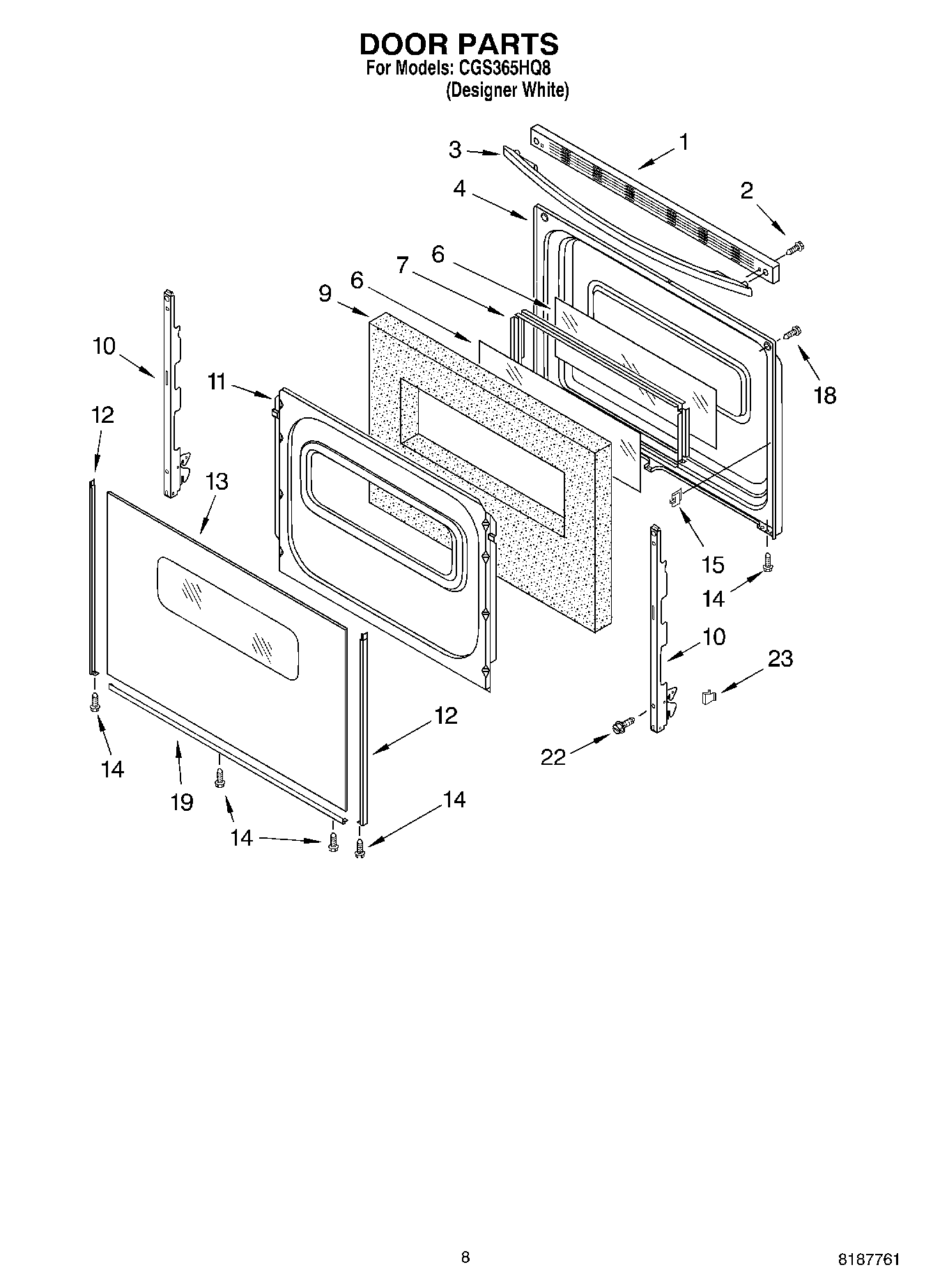

1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
9	WPW10278991 Whirlpool Insulation
10	WP8053807 Whirlpool Oven Door Hinge
11	9761499 Whirlpool Oven Retainer
12	WP8523166 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	WP9762476 Whirlpool Door Glass
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP8523175 Whirlpool Door Trim Assembly
22	WP3196175 Whirlpool Screw
23	WP3196925 Whirlpool Clip Assembly
