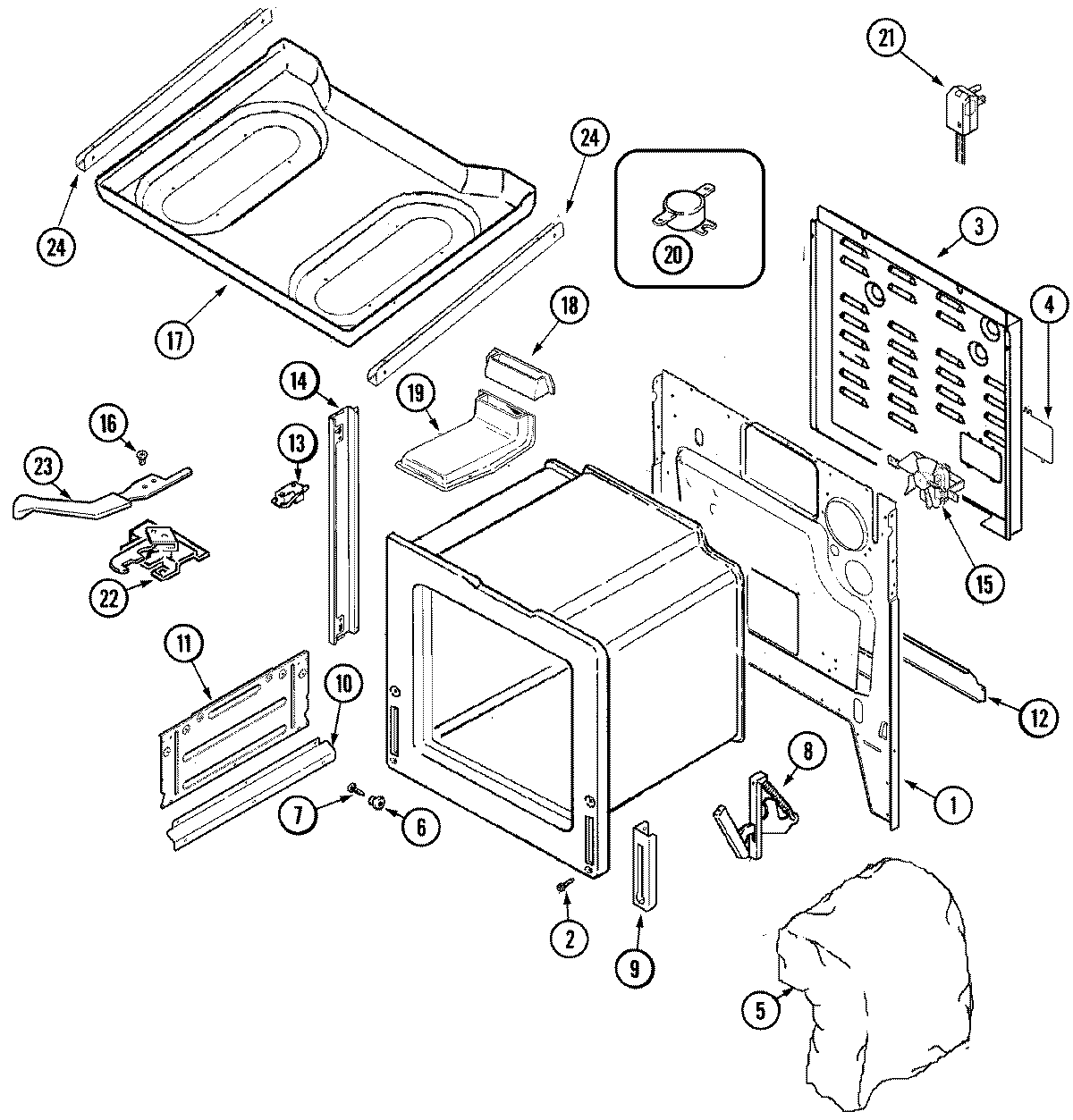

| 1 | MAY 74004174 |
| 2 | SCREW (10-24X5/16-NI) |
| 3 | MAY 74004183 |
| 3 | MAY 74005265 |
| 4 | MAY 74004184 |
| 4 | COVER, TERMINAL BLOCK |
| 5 | MAY 74003503 |
| 5 | MAY 74003381 |
| 6 | MAY 8004P024-60 |
| 7 | MAY 74001449 |
| 8 | WP74011140 Whirlpool Oven Hinge |
| 9 | MAY 74004173 |
| 9 | SCREW |
| 10 | MAY 74004176 |
| 11 | MAY 74004177 |
| 12 | MAY 74004175 |
| 13 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 13 | MAY 7403P361-60 |
| 14 | MAY 74004217 |
| 15 | MAY 74004947 |
| 15 | MAY 71001851 |
| 16 | SCREW, LEVER |
| 17 | MAY 74004826 |
| 17 | MAY 74004293 |
| 17 | GASKET, WINDOW |
| 18 | MAY 74004294 |
| 19 | MAY 74002367 |
| 20 | MAY 7403P249-60 |
| 21 | MAY 74004295 |
| 22 | MAY 74003502 |
| 22 | MAY 74001084 |
| 22 | MAY 74003139 |
| 23 | MAY 74001057 |
