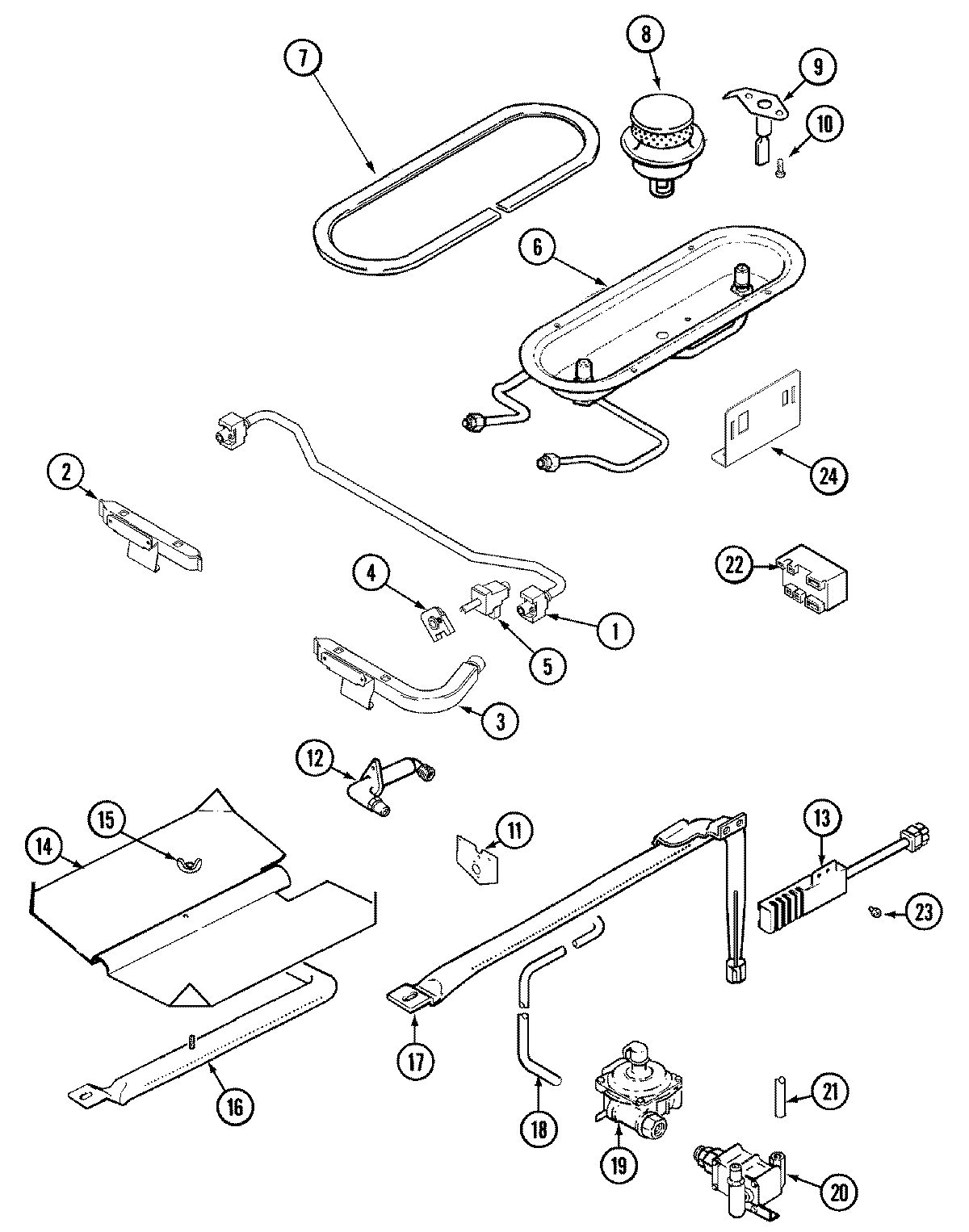

CGS3760ADA 03 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1	MAY 74004299
1	MAY 74004298
2	MAY 74004411
3	MAY 74004412
4	MAY 74002533
4	WP7403P287-60 Whirlpool Igniter Switch
5	MAY 74004409
5	MAY 74004303
5	MAY 74004302
6	MAY 74004413
6	MAY 74004306
6	MAY 74004304
7	MAY 74006056
8	WP3412D021-09 Whirlpool Burner Assembly
8	MAY 74003966
9	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
9	MAY 74004410
10	MAY Y707113
11	MAY 74004307
12	MAY 7507P088-60
13	MAY 7432P075-60
14	MAY 3601F217-45
15	NUT, WING
16	MAY 74004076
17	MAY 3807F446-45
17	MAY 74003960
18	MAY 74004309
18	MAY 7103P130-60
19	WP74006429 Whirlpool Regulator
20	WP74006427 Whirlpool Oven Valve
21	MAY 74004408
22	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
23	MAY 4005F421-45
23	SCREW (10-24X5/16-NI)
24	MAY 74004297
