CGS3760ADQ 02 – DOOR/DRAWER

CGS3760ADQ 02 – DOOR/DRAWER

Written by

in

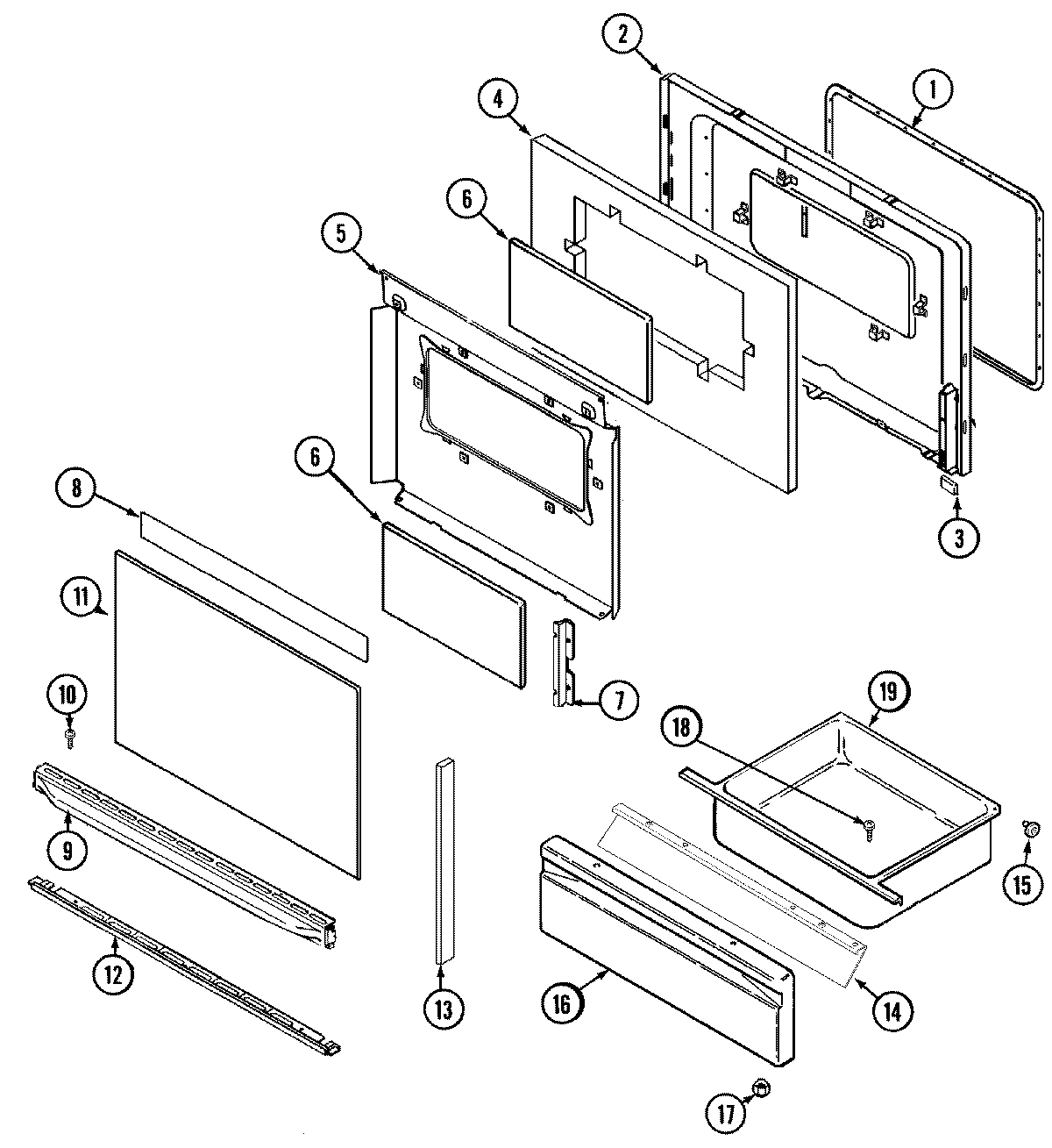

CGS3760ADQ 02 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2LINING, OVEN DOOR
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74005042
9WP74009541 Whirlpool Screw Assembly
11MAY 74005041
12MAY 74005043
12SCREW
13MAY 74005044
13MAY 74004075
14LINING, DRAWER PANEL
14SCREW (8ABX1/2“-BLK)
15WP74004078 Whirlpool Door Roller
15MAY 74004079
15WP488130 Whirlpool Air Conditioner Nut
16PANEL, DRAWER (BSQ)
17WPW10131078 Whirlpool Nut Assembly
19MAY 71003042
