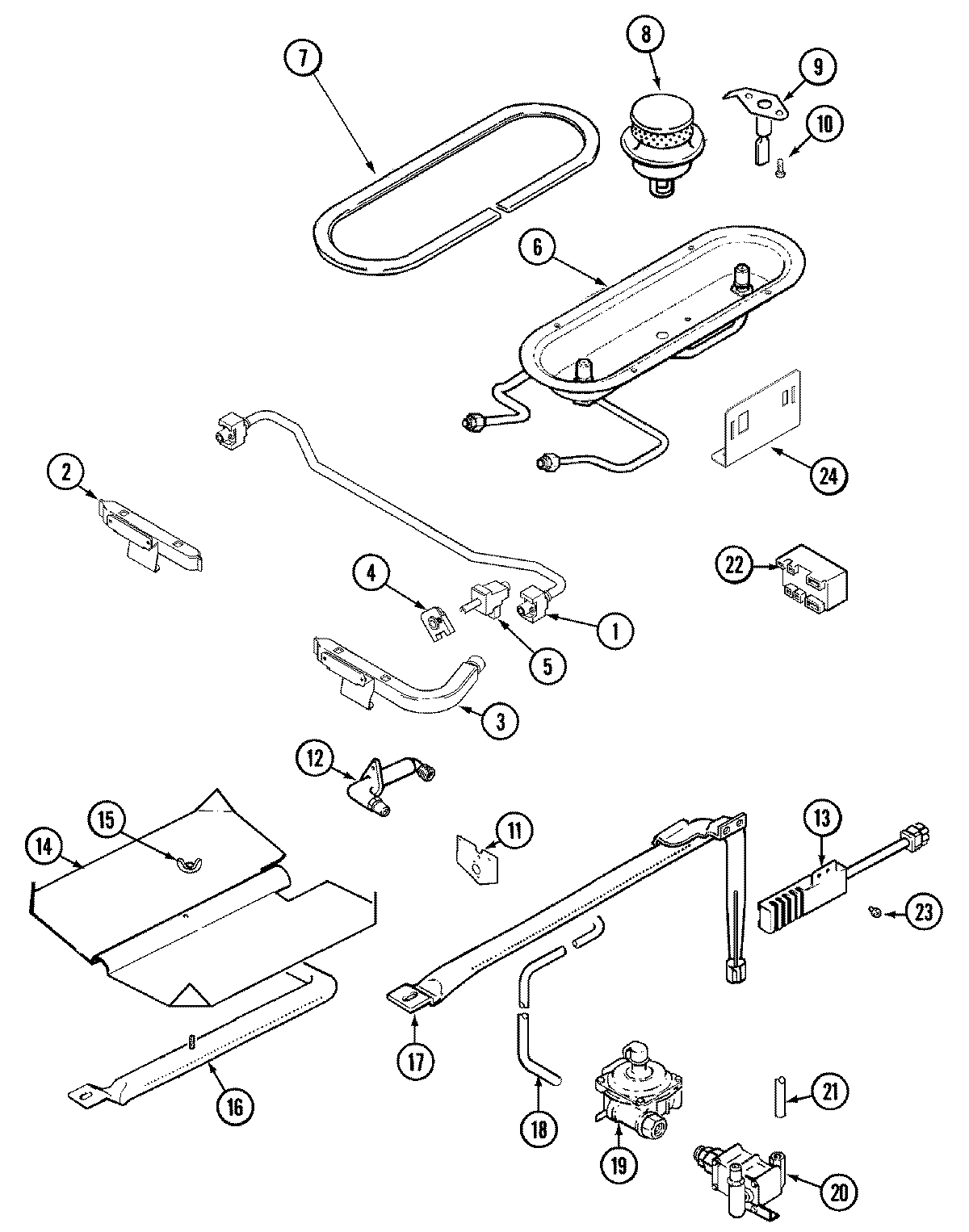

CGS3760ADW 03 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
NI	WP74009534 Whirlpool 3.5 Wire
NI	WP74009533 Whirlpool Wire 3.5
NI	WP74007593 Whirlpool Orifice
1	MAY 74004298
1	MAY 74004299
2	MAY 74004411
3	MAY 12002322
3	MAY 74004412
4	WP74009532 Whirlpool Igniter Switch
4	WP7403P287-60 Whirlpool Igniter Switch
4	MAY 74002533
5	MAY 74004303
5	MAY 74004409
5	MAY 74009530
5	MAY 74009535
5	MAY 74004302
6	MAY 74004413
6	MAY 74004304
6	MAY 74004306
7	MAY 74006056
8	WP3412D024-26 Whirlpool Oven Surface Burner Head
8	WP3412D021-26 Whirlpool Burner
9	MAY 74004410
9	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
10	MAY Y707113
11	MAY 74004307
12	MAY 7507P088-60
13	MAY 7432P075-60
14	MAY 3601F217-45
14	MAY 74009231
15	NUT, WING
16	MAY 74004076
17	MAY 3807F446-45
17	MAY 74003960
18	MAY 7103P130-60
18	MAY 74004309
19	WP74006429 Whirlpool Regulator
20	WP74006427 Whirlpool Oven Valve
20	MAY 74007621
21	MAY 74004408
22	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
23	SCREW (10-24X5/16-NI)
23	MAY 4005F421-45
24	MAY 74004297
