CGS3760ADW 04 – OVEN/BASE

CGS3760ADW 04 – OVEN/BASE

Written by

in

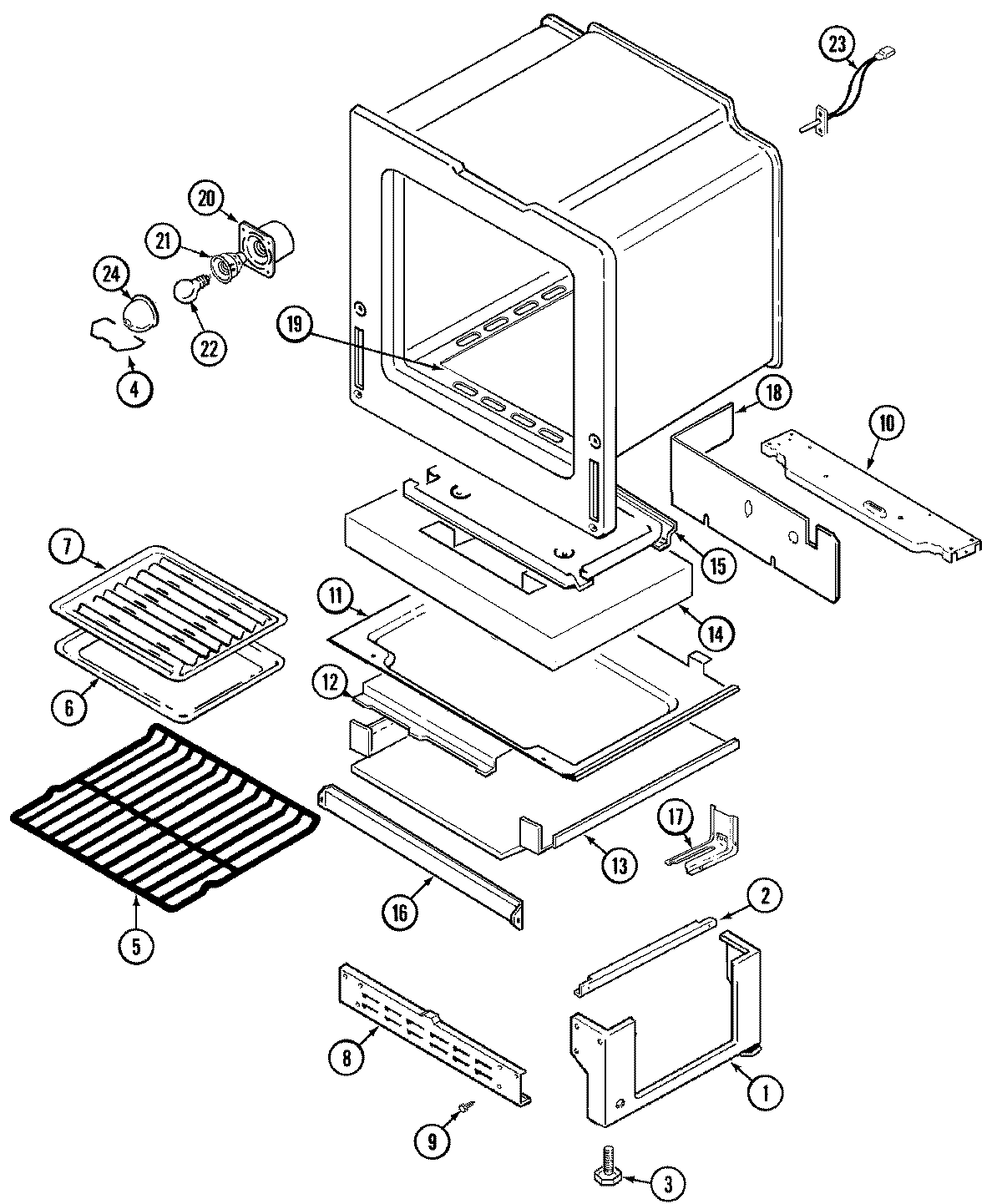

CGS3760ADW 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003405
2RUNNER, DRAWER
3W11665456 Whirlpool Range Level Foot
4MAY 74003391
5WPW10282492 Whirlpool Oven Rack
6MAY Y3401F02019
7MAY Y3413F01619
8MAY 4020F001-80
10MAY 74004167
11MAY 74004296
12MAY 3604F204-51
13MAY 3604F205-51
13SCREW
14MAY 74003503
15MAY 74001651
16BAFFLE, OVEN FRONT
17MAY 74002311
17MAY 7101P344-60
18MAY 74003329
19MAY 5504M004-19
20MAY 74003388
21MAY 74003387
22RANGE ONLY 40W 120V APPL BULB
23MAY 74003413
24MAY 74003389
