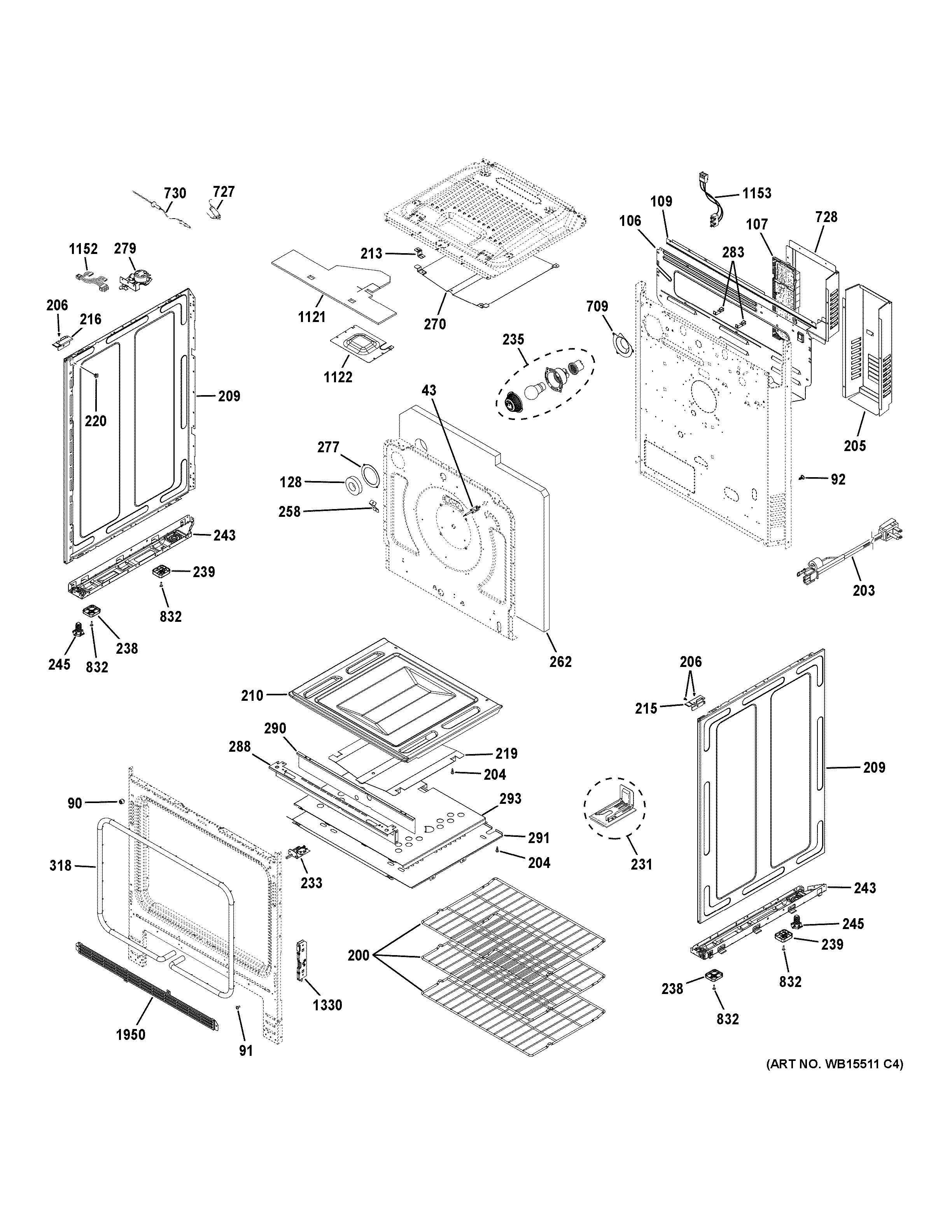

CGS700P2M2S1 BODY PARTS

CGS700P2M2S1 BODY PARTS

Written by

in

CGS700P2M2S1 BODY PARTS

Products

PositionProduct
43WB24X25557 GE Oven Sensor Assembly
90WB02X28738 GE Oven Front Frame Bumper
91WB01T10008 GE Oven Screw 10-32
92WB1X1261 GE Oven Screw
106WB34X28955 GE Back Cover
107WB27X32099 GE Machine Board with Frame
109WB34X28912 GE Oven Backguard Component
128LAMP INSULATION
200WB48X21508 GE Oven Rack
203WB18X28855 GE Oven Power Cord
204WB1K5062 GE Oven Screw
205WB34K10097 GE Oven Motor Cover
206WB01K10091 GE Oven Screw
209WB56X28847 GE Oven Side Panel
210WB35X37968 GE Heat Shield
213SUPPORT COOK TOP REAR
215FRONT SUPPORT RH
216FRONT SUPPORT LH
219OVEN DEFLECTOR
220GEN WB02K0008
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
238WB16X20448 GE Oven Spacer Base
239WB16X20449 GE Oven Base Spacer
243WB63X20216 GE Oven Support Base
243WB63X20215 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
258BRACE VENT
262WB35X28786 GE Oven Back Insulation
270WB34X28689 GE Deflector
277WB32K10044 GE Oven Light Gasket
279WB10X28793 GE Oven Automatic Latch
283WB02X21679 GE Oven Wire Clip
288BRACE
290GEN WB34K0012
291WB63K16 GE Oven Bottom Guard
293WB63K10187 GE Bottom Inner Guard
318WB32X29539 GE Oven Gasket Assembly
709WB08K10018 GE Range Light Cover
727WB34K10121 GE Oven Probe Receptacle & Harness
728CONTROL COVER
730WB20T10024 GE Oven Thermistor Probe
832WR01X10065 GE Screw
1121WB35X28986 GE Latch Insulation
1122GEN WB34X21710
1152WB18X31606 GE Latch Harness
1153WB18X28690 GE Oven Direct Connect Harness
1330WB10X28563 GE Oven Receiver Hinge
1950WB01K10072 GE Oven Front Bottom Trim
