CGS700P2M2S1 DOOR & DRAWER PARTS

CGS700P2M2S1 DOOR & DRAWER PARTS

Written by

in

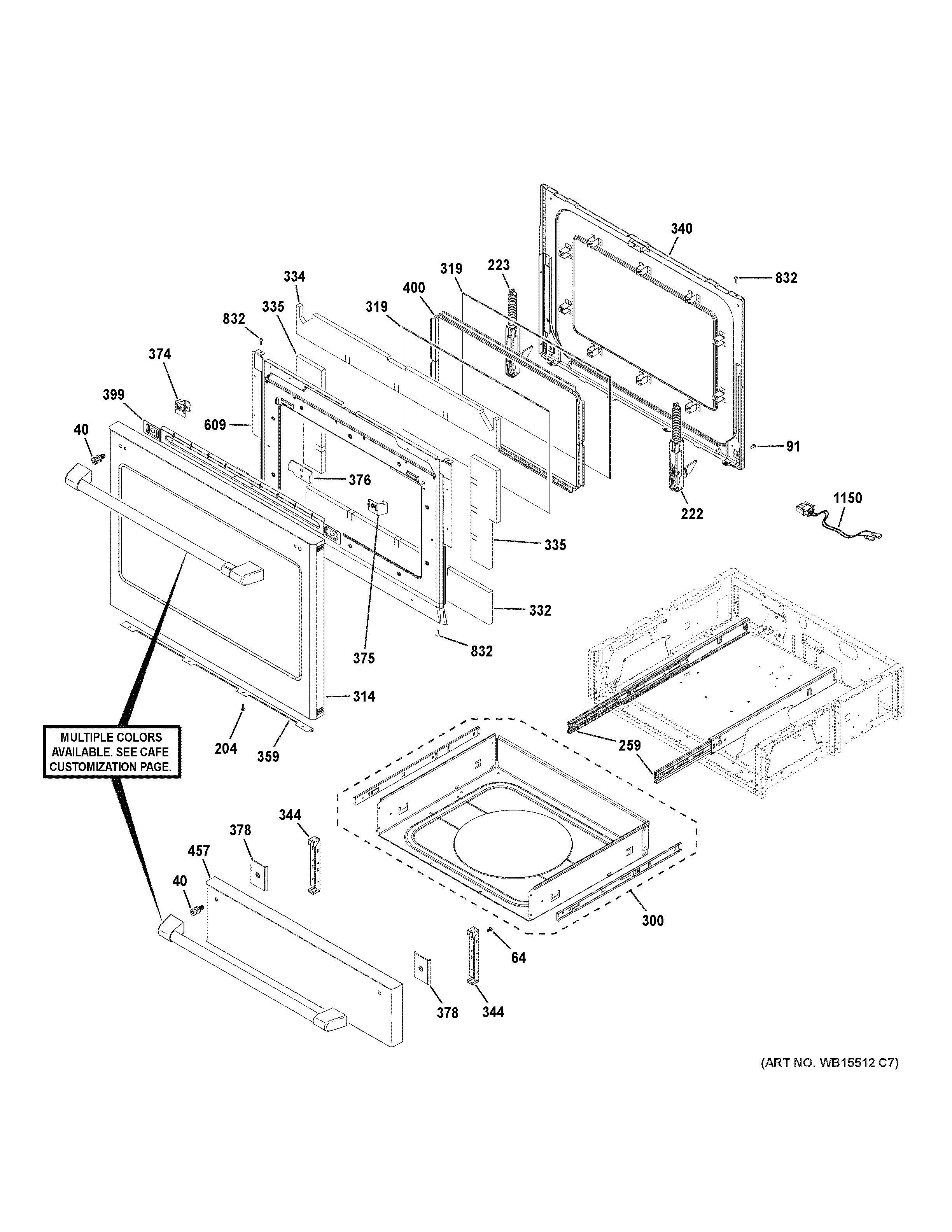

CGS700P2M2S1 DOOR & DRAWER PARTS

Products

PositionProduct
40WR01X11007 GE Refrigerator Fastener Door Handle
64SCREW M4X8
91WB01T10008 GE Oven Screw 10-32
204WB1K5062 GE Oven Screw
222WB10X30271 GE Oven Door Hinge
223WB10X26769 GE Oven Door Hinge
259WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
300WB49X26562 GE Oven Drawer Body Assembly Kit
314WB56X31647 GE Glass Pane Assembly, Stainless Steel
319WB57K10174 GE Range Crystal Window Door
332WB35K10221 GE Range Insulation
334WB35X20077 GE Door Insulation
335WB35K10222 GE Oven Insulation
340WB56X24760 GE Range Door Liner
344WB02X24742 GE Oven Drawer Bracket
359WB07X28885 GE Range Barrier Door
374WB34X31703 GE Bracket Fastener
375WB34X31701 GE Fastener Bracket
376WB34X31739 GE Bracket Backer
378WB01X31748 GE Anchor Nut
399WB34X31702 GE Panel Backer Vent
400WB34X28742 GE Window Frame Assembly
457WB56X31644 GE Oven Stainless Steel Drawer Panel
609WB34X24749 GE Door Guard
832WR01X10065 GE Screw
1150WB18X28724 GE Drawer Harness
