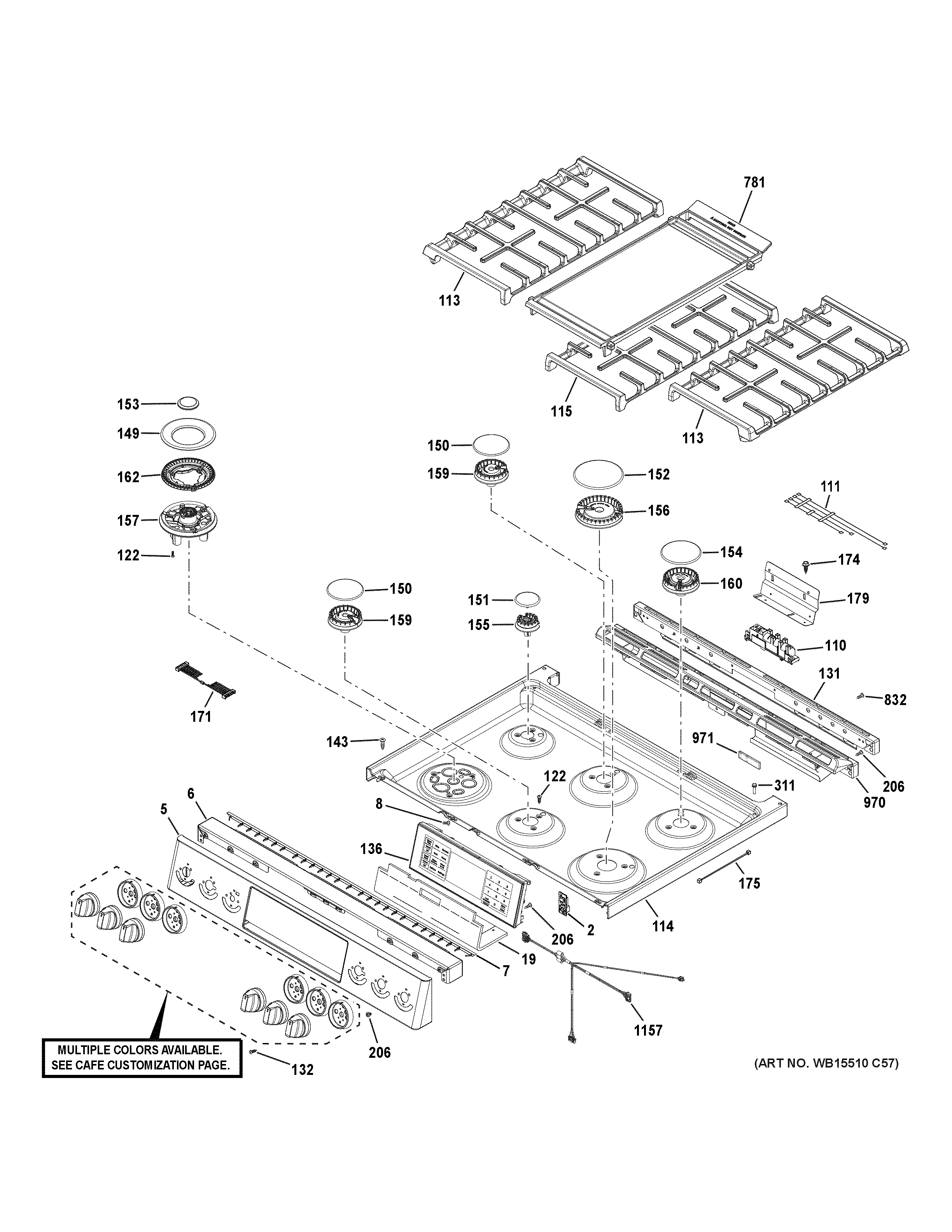

CGS700P3M4D1 CONTROL PANEL & COOKTOP

CGS700P3M4D1 CONTROL PANEL & COOKTOP

Written by

in

CGS700P3M4D1 CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB27X46666 GE Oven Wi-Fi/Bluetooth Board with Instructions
5WB36X31629 GE Dark Slate Manifold Panel
6WB36X28222 GE Oven Rear Manifold Panel
7WB35X28752 GE Oven Gasket Panel Assembly
8WB01K10002 GE Oven Screw 8-32
19WB35X28981 GE Oven Control Housing Insulation
110WB13X24741 GE Oven Spark Module
111WB18X33925 GE Electrode Top and Harness HV
113WB31X28754 GE Oven Grate Assembly
114WB62X28232 GE Range Top
115WB31X28256 GE Range Central Grate
122WB01X24735 GE Oven CKT Screw
131WB07X28825 GE Oven Trim Kit
132WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
136WB27X48967 GE Glass and Touch Board Assembly
143SCREW MTG END CAP
149WB29X28253 GE Oven Surface Burner Cap
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
152CAP BURNER ASM (15K)
153WB16X28252 GE Oven Burner Cap Inner
154WB29K10024 GE Burner Cap Oven
155WB16X24721 GE Oven Range Small Cooktop Burner V2
156WB16X24722 GE Oven Gas Range XL Surface Burner
157WB16X28656 GE Oven Surface Burner Base
159WB16X24724 GE Oven Medium Burner
160BURNER LARGE V2
162HEAD BURNER
171HARNESS INTERFACE
174WB01X31119 GE Screw 8-18
175WB18X25597 GE Ground Harness
179BRACKET SPARK MODULE
206WB01K10091 GE Oven Screw
311BUMPER
781WB31X28254 GE Oven Cast Griddle
832WR01X10065 GE Screw
970WB07X28819 GE Oven Vent Trim
971VENT TRIM GASKET
1157WB18X41891 GE Wire Jumper Harness
