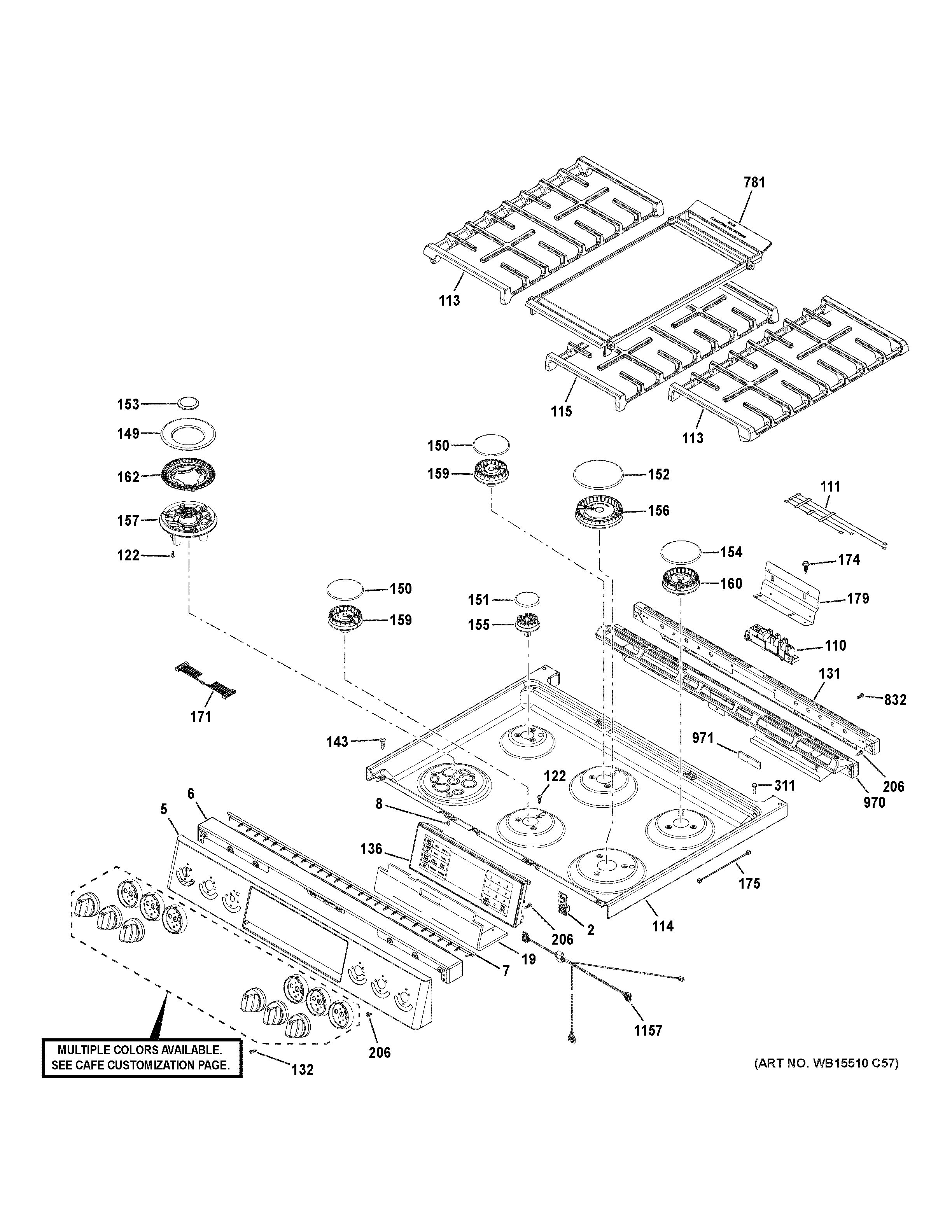

CGS700P3M5D1 CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB27X46666 GE Oven Wi-Fi/Bluetooth Board with Instructions
5	WB36X31629 GE Dark Slate Manifold Panel
6	WB36X28222 GE Oven Rear Manifold Panel
7	WB35X28752 GE Oven Gasket Panel Assembly
8	WB01K10002 GE Oven Screw 8-32
19	WB35X28981 GE Oven Control Housing Insulation
110	WB13X24741 GE Oven Spark Module
111	WB18X33925 GE Electrode Top and Harness HV
113	WB31X28754 GE Oven Grate Assembly
114	WB62X28232 GE Range Top
115	WB31X28256 GE Range Central Grate
122	WB01X24735 GE Oven CKT Screw
131	WB07X28825 GE Oven Trim Kit
132	WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
136	WB27X48967 GE Glass and Touch Board Assembly
143	SCREW MTG END CAP
149	WB29X28253 GE Oven Surface Burner Cap
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB16X28654 GE Oven Burner Cap Cover
152	CAP BURNER ASM (15K)
153	WB16X28252 GE Oven Burner Cap Inner
154	WB29K10024 GE Burner Cap Oven
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24722 GE Oven Gas Range XL Surface Burner
157	WB16X28656 GE Oven Surface Burner Base
159	WB16X24724 GE Oven Medium Burner
160	BURNER LARGE V2
162	HEAD BURNER
171	HARNESS INTERFACE
174	WB01X31119 GE Screw 8-18
175	WB18X25597 GE Ground Harness
179	BRACKET SPARK MODULE
206	WB01K10091 GE Oven Screw
311	BUMPER
781	WB31X28254 GE Oven Cast Griddle
832	WR01X10065 GE Screw
970	WB07X28819 GE Oven Vent Trim
971	VENT TRIM GASKET
1157	WB18X41891 GE Wire Jumper Harness
