CGS750P2M1S1 LOWER OVEN

CGS750P2M1S1 LOWER OVEN

Written by

in

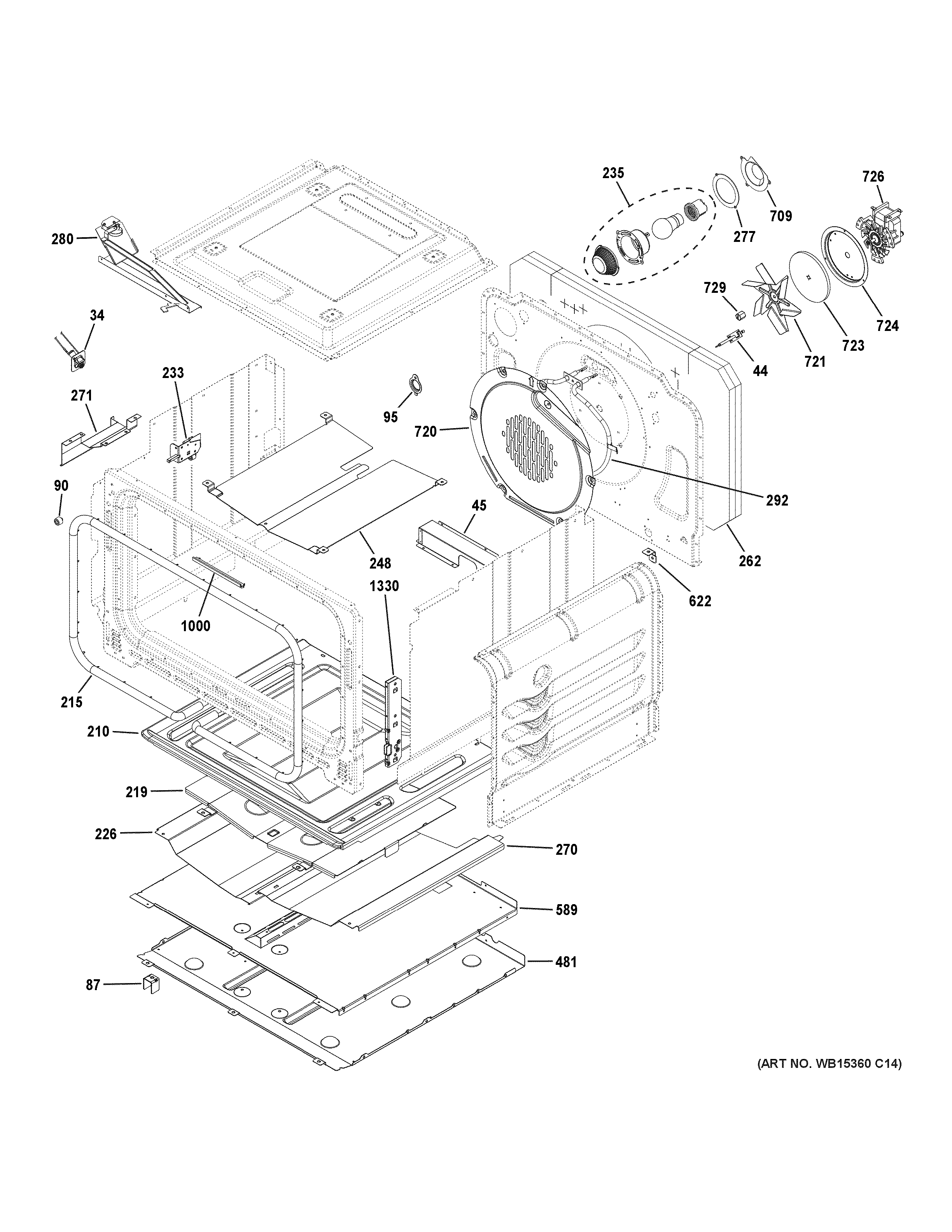

CGS750P2M1S1 LOWER OVEN

Products

PositionProduct
34WB34K10134 GE Oven Receptacle Assembly
44WB24X25557 GE Oven Sensor Assembly
45WB34X20526 GE Oven Cover Shutter
87WB56X20457 GE Bottom Floor Barrier
90WB02X28738 GE Oven Front Frame Bumper
95WB02K10337 GE Cover Cap
210WB34X24912 GE Oven Bottom
215WB32X29538 GE Oven Gasket Assembly
219WB34X42148 GE Oven Deflector
226WB34X20443 GE Oven Deflector
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
248WB34X29028 GE Deflector
262WB35X28789 GE Oven Back Insulation
270WB34X20444 GE Oven Deflector
271WB34X21619 GE Latch Cover
277WB32K10044 GE Oven Light Gasket
280WB10X28795 GE Automatic Latch
292WB44X10051 GE Oven Convection Element
481WB63X20441 GE Bottom
589WB63X21725 GE Bottom Duct
622WB2K3 GE Angle Support
709WB08K10018 GE Range Light Cover
720WB34X28701 GE Oven Fan Cover
721WB2X8351 GE Oven Blade Fan
723WB35K10013 GE Fan Insulation
724WB02K10034 GE Range Fan Support
726WB26X28953 GE Oven Convection Fan Motor
729WB02T10017 GE Oven Nut
1000WB03X31672 GE Oven Stainless Steel Control Knob
1330WB10X28563 GE Oven Receiver Hinge
