CGS750P4M3W2 UPPER OVEN

CGS750P4M3W2 UPPER OVEN

Written by

in

CGS750P4M3W2 UPPER OVEN

Products

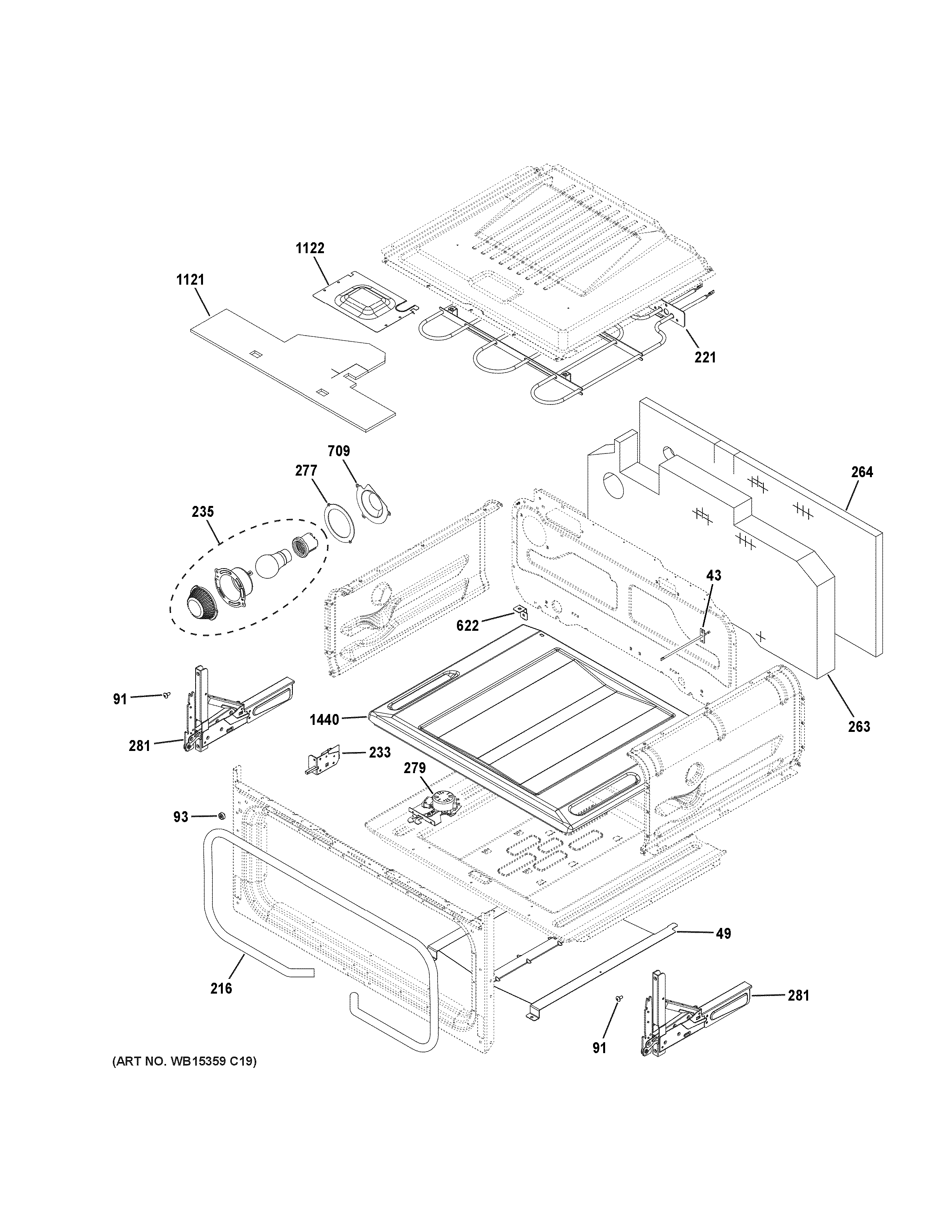

PositionProduct
43SENSOR ASM
49WB34X28907 GE Bake Deflector Upper
91WB01T10008 GE Oven Screw 10-32
93WB02X28737 GE Oven Front Frame Bumper
216WB35X29666 GE Oven Gasket
221BROIL ELEMENT
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
263WB35X28788 GE Oven Back Insulation
264WB35X28790 GE Oven Back Insulation
277WB32K10044 GE Oven Light Gasket
279WB10X28794 GE Oven Automatic Latch
281WB10X28782 GE Oven Right-Hand Hinge Assembly
622WB2K3 GE Angle Support
709WB08K10018 GE Range Light Cover
1121WB35X28986 GE Latch Insulation
1122GEN WB34X21710
1440WB63X24934 GE Oven Bottom
