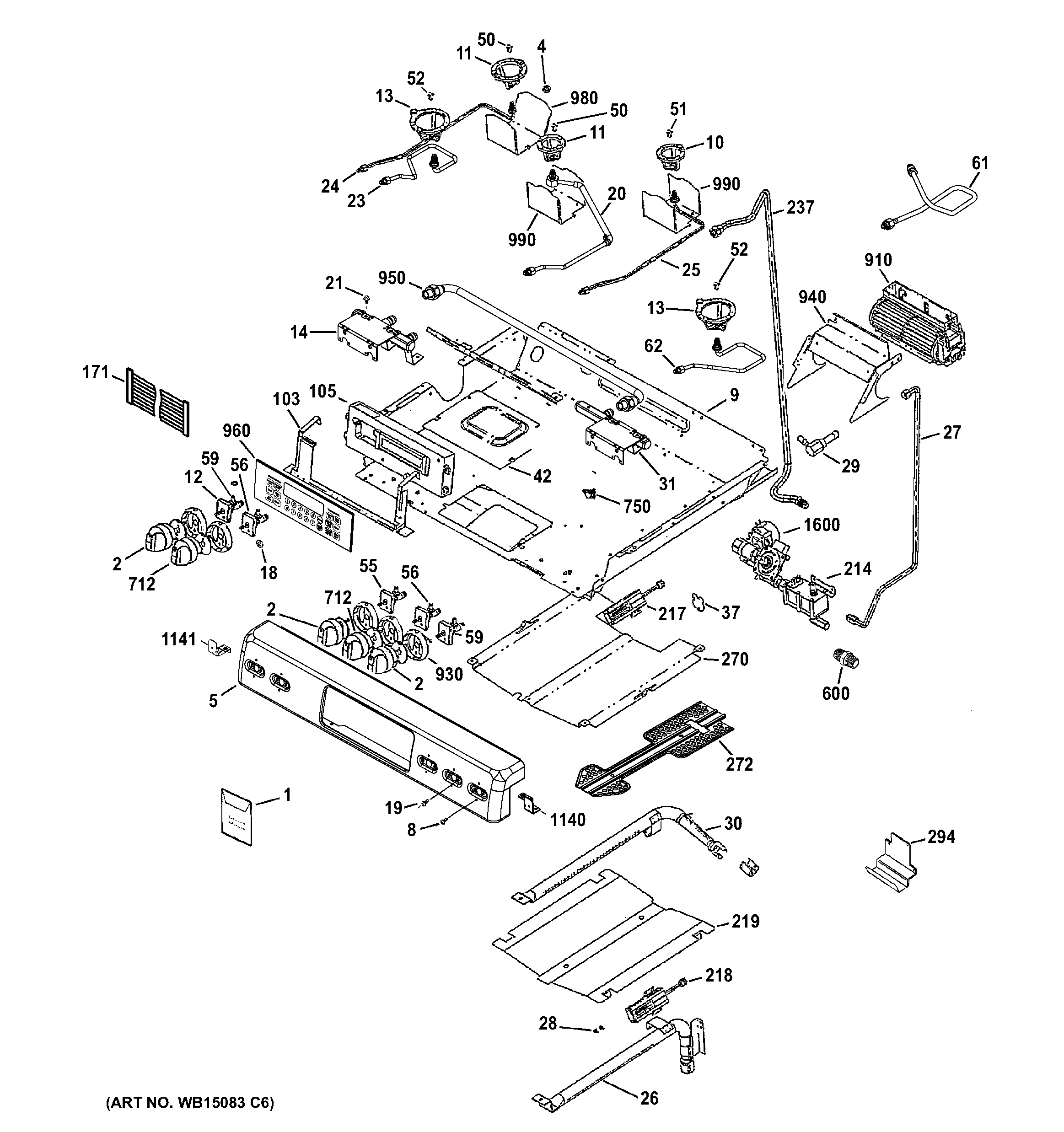

CGS975SED3SS CONTROL PANEL, GAS & BURNER PARTS

CGS975SED3SS CONTROL PANEL, GAS & BURNER PARTS

Written by

in

CGS975SED3SS CONTROL PANEL, GAS & BURNER PARTS

Products

PositionProduct
1WB06K10006 GE Helpful Hint
1GEN 49-85183-3
1MINI MANUAL WASHER
1WB02T10111 GE Cleaner Stainless Steel
1GEN 31-10851
1GEN WB28K10853
2WB21X20913 GE Oven Pressure Regulator
2WB03K10265 GE Oven Control Knob
4WB01K10037 GE Oven Economic Nut
5WB36K11029 GE Manifold Assembly
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10136
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB18K10094
13WB02K10363 GE Oven Cooktop Bracket XL
13WB2K24 GE Oven Valve Cover
14GEN WB28K10849
19WR01X10389 GE Refrigerator Screw 8-18 AB PHR 1/2 S
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K10852
21WB1K83 GE Oven Screw
23GEN WB28K10851
24NG ORIFICE & TUBE LR
25GEN WB28K10862
26WB16K10081 GE Oven Bake Burner
27WB28X24773 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29WB28K10798 GE Dual Cavity Elbow
30WB16K10086 GE Range Broil Burner
31GEN WB28K10848
37WB34K14 GE Igniter Cover
42WB63K10133 GE Burner Box Cover
50GLASS & PANEL DOOR ASM_
55WB21K10096 GE Oven Burner Valve 270
56WB21K10080 GE Oven Burner Valve 270 Hi-Cap
59WB21K10119 GE Oven Burner Valve 270
62GEN WB28K10850
105GEN WB27K10426
171WB18T10386 GE Oven Touch Glass Wire Harness
214WB19K10079 GE Oven Control Valve Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219DEFLECTOR OVEN
237WB28K10830 GE Manifold Tube
270WB49K10025 GE Range Deflector
272GEN WB49K10046
294WB63K10054 GE Terminal Cover
712WB03K10266 GE Oven Control Knob
750WB24K10046 GE Oven Limit Switch Bimetal
910WB26K10018 GE Oven Blower Tangential 60MM
930WB04K10037 GE Oven Bezel Knob
940WB34K10096 GE Upper Half Oven Duct
950GEN WB28K10847
960WB27K10427 GE Oven Touch Control Board Assembly
980WB02K10167 GE Flow Deviator Assembly
990WB02K10168 GE Deflector
1140WB02K10249 GE Manifold Panel Support
1140WB02K10250 GE Manifold Support Panel
1600WB19K10059 GE Oven Valve Lockout
