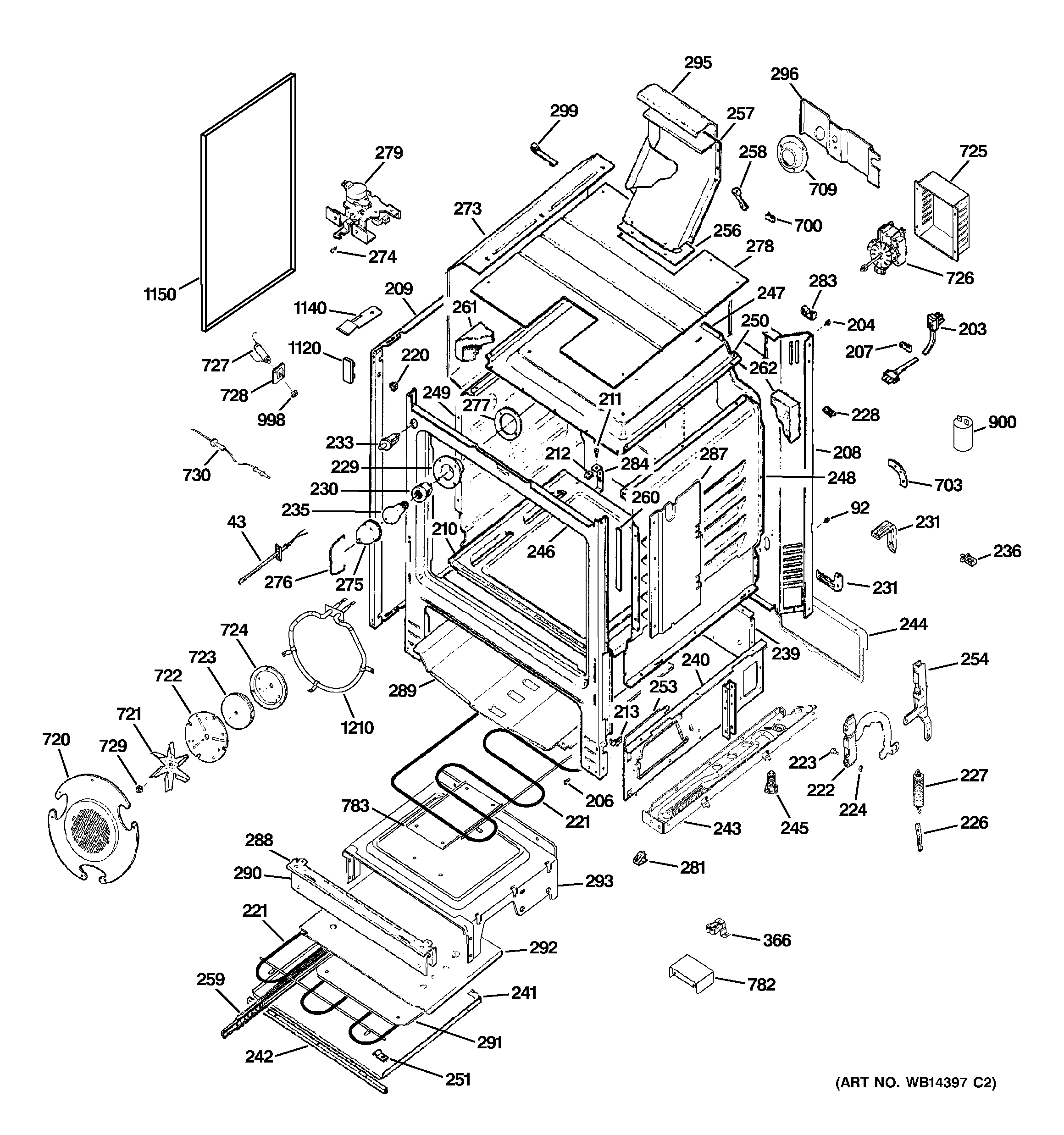

CGS980SEM1SS BODY PARTS

CGS980SEM1SS BODY PARTS

Written by

in

CGS980SEM1SS BODY PARTS

Products

PositionProduct
43TEMPERATURE SENSOR
92WB1X1261 GE Oven Screw
203GEN WB18K10031
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
206WR01X10065 GE Screw
207WB2K36 GE Oven Clamp Cable
208GEN WB63K10130
208WB35K10039 GE Motor Insulation
209GEN WB63K10134
210WB35X37973 GE Oven Bottom and Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB44K10014 GE Oven Top Heating Element
221WB44K10015 GE Oven Bottom Heating Element
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K0005
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231GEN WB02K0012
231WB2K20 GE Oven Bracket Assembly
233WB24K10068 GE Oven Plunger Switch
235RANGE ONLY 40W 120V APPL BULB
236WB02K10068 GE Wire Clip
239PANEL REAR BROIL
240WB63K10056 GE Oven Broil Side Panel
240WB63K10055 GE Oven Broil Side Panel
241WB63K10060 GE Rack Bottom Panel
242GEN WB63K0005
243WB63K10232 GE Oven Support Base
243WB63K10233 GE Oven Support Base
244WB63K10167 GE Drawer Back
245WB02X10521 GE Oven Leveling Leg
246GEN WB63K10131
247WB53K10015 GE Oven Top
248GEN WB53K0002
249GEN WB53K10008
250GEN WB63K10132
251WB02K10023 GE Oven Heating Element Clamp
253WB02K10108 GE Access Spring Cover
253WB02K10109 GE Access Cover Spring
254GEN WB01K0053
254SUPPORT ASM RIVET LF
254SUPPORT ASM RIVET RT
256GEN WB32K0001
257WB38K10017 GE Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K10025 GE Oven Slide and Bearing Assembly
259WB39K10026 GE Oven Slide and Bearing Assembly
260WB32K2 GE Oven Gasket Seal
261WB35K10143 GE Oven Insulation Wrap
262GEN WB35K10012
273GEN WB53K0011
273GEN WB53K0012
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278GEN WB53K10030
279GEN WB02K10166
281WB02K10073 GE Oven Clip Capillary
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
287GEN WB34K0031
287WB34K30 GE Radiation Guard
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
290GEN WB34K0012
291WB49K10011 GE Bottom Deflector
292WB35K10054 GE Oven Top Insulation Drawer
293GEN WB63K10058
295WB35K10099 GE Vent Insulation
296WB34K13 GE Oven B Panel Cover
299GEN WB02K0038
366WB02K10110 GE Oven Catch
700RETAINER-INSULATION
703BRACKET OVEN
709GEN WB08K0004
720WB34K10037 GE Oven Front Fan Cover
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10013 GE Fan Insulation
724WB02K10170 GE Oven Fan Support
725WB34K10097 GE Oven Motor Cover
726GEN WB26K10007
727PROBE COVER
728GEN WB02X8309
729WB2X8454 GE Oven Nut
730WB20T10024 GE Oven Thermistor Probe
782GEN WB34K10071
783GEN WB49K10012
900GEN WB02K
