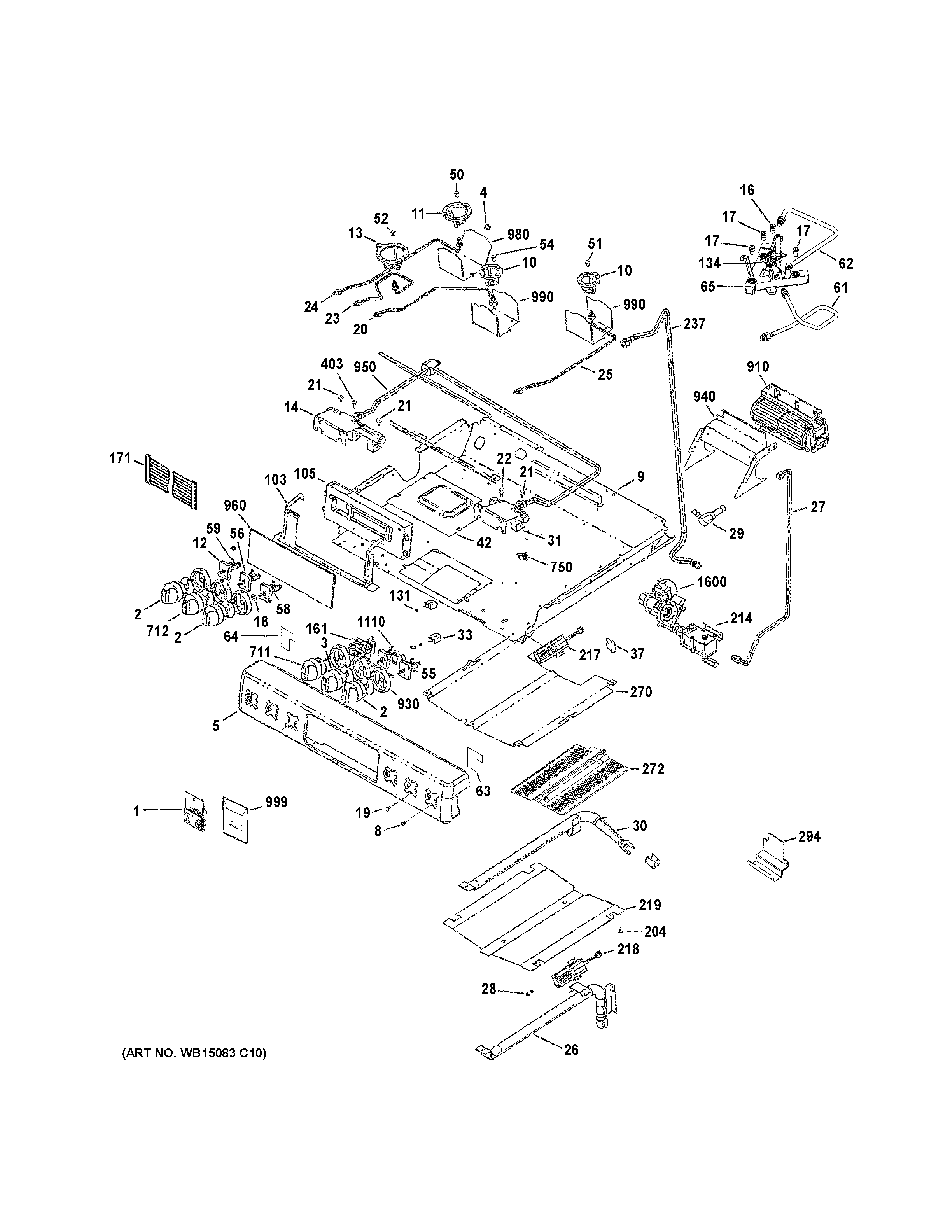

CGS985SET7SS CONTROL PANEL, GAS & BURNER PARTS

Products

Position	Product
1	WB28K10797 GE Oven LP Conversion Kit
2	WB03X23083 GE Oven Knob Assembly
3	KNOB ASSEMBLY
4	WB01K10037 GE Oven Economic Nut
5	WB36X23080 GE Range Backsplash
8	WB01K10002 GE Oven Screw 8-32
9	GEN WB63K10136
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02K10361 GE Oven Orifice Holder
12	WB18K10077 GE Oven Switch Harness
13	WB02K10363 GE Oven Cooktop Bracket XL
14	MANIFOLD PIPE ASM
16	WB28K10694 GE Oven Spud Orifice
17	WB28K10693 GE Oven Orifice Spud
18	WB2K24 GE Oven Valve Cover
19	WB1K8 GE Oven Thermostat Screw
20	WB28K10871 GE Oven Natural Gas Orifice and Tube Center
21	WB1K83 GE Oven Screw
22	WB01K10067 GE Oven Screw 1/4" HD 20
23	WB28K10740 GE Oven Flame Orifice Holder
24	NG ORIFICE & TUBE LR
25	WB28K10741 GE Oven Right Rear Orifice Holder
26	WB16K10081 GE Oven Bake Burner
27	WB28X24773 GE Oven Burner Supply Tube
28	WB1X1293 GE Oven Screw
29	WB28K10798 GE Dual Cavity Elbow
30	WB16K10086 GE Range Broil Burner
31	WB28K10686 GE Manifold Pipe Assembly
33	WB25K10010 GE Oven Light Indicator Pilot
37	WB34X24753 GE Igniter Cover
42	WB63K10133 GE Burner Box Cover
50	WB28K10023 GE Oven Orifice
51	WB28K10834 GE Oven Orifice Assembly
52	WB28K10842 GE Oven LP Orifice Spud
54	WB28K10215 GE Oven Orifice
55	WB21K10096 GE Oven Burner Valve 270
56	WB21K10080 GE Oven Burner Valve 270 Hi-Cap
58	WB21K10097 GE Oven Burner Valve
59	WB21K10119 GE Oven Burner Valve 270
61	WB28K10698 GE Oven Main Dual Tube Valve
62	TUBE SIMMER DUAL VALVE
63	FOIL MANIFOLD
64	FOIL MANIFOLD
65	WB28K10785 GE Oven Top Burner Injector Assembly
103	WB02K10169 GE Control Bracket
105	WB27K10421 GE Oven Control (ERC3HP)
131	WB25K10009 GE Oven Lens
134	ELECTRODE TOP
161	WB20K10017 GE Oven Thermostat
171	WB18T10386 GE Oven Touch Glass Wire Harness
204	WB1K5062 GE Oven Screw
214	WB19K10079 GE Oven Control Valve Assembly
217	WB13X25261 GE Oven Igniter Glowbar
218	WB13K21 GE Oven Igniter with 7 Leads
219	DEFLECTOR OVEN
237	WB28K10830 GE Manifold Tube
270	WB49K10025 GE Range Deflector
272	WB49K10045 GE Broil Shield
294	WB63K10054 GE Terminal Cover
403	WB01K10065 GE Oven Screw 8 HD 12-24
711	WB03X23069 GE Oven Knob Assembly
712	WB03X23082 GE Range Burner Knob
750	WB24K10046 GE Oven Limit Switch Bimetal
910	WB26K10018 GE Oven Blower Tangential 60MM
930	WB04K10037 GE Oven Bezel Knob
940	WB34K10096 GE Upper Half Oven Duct
950	WB28K10684 GE Manifold Supply Tube
960	WB27K10389 GE Oven Glass & Touch Board Assembly
980	WB02K10167 GE Flow Deviator Assembly
990	WB02K10168 GE Deflector
999	GEN 3114981
999	PM INSTALL INSTRUCTIONS
999	GEN 4985232
999	GEN 31107773
999	WB18K10100 GE Right Front Filter Harness
1110	WB21K10141 GE Oven Dual Gas Valve Assembly
1600	WB19K10059 GE Oven Valve Lockout
