CGS985SET7SS DOOR & DRAWER PARTS

CGS985SET7SS DOOR & DRAWER PARTS

Written by

in

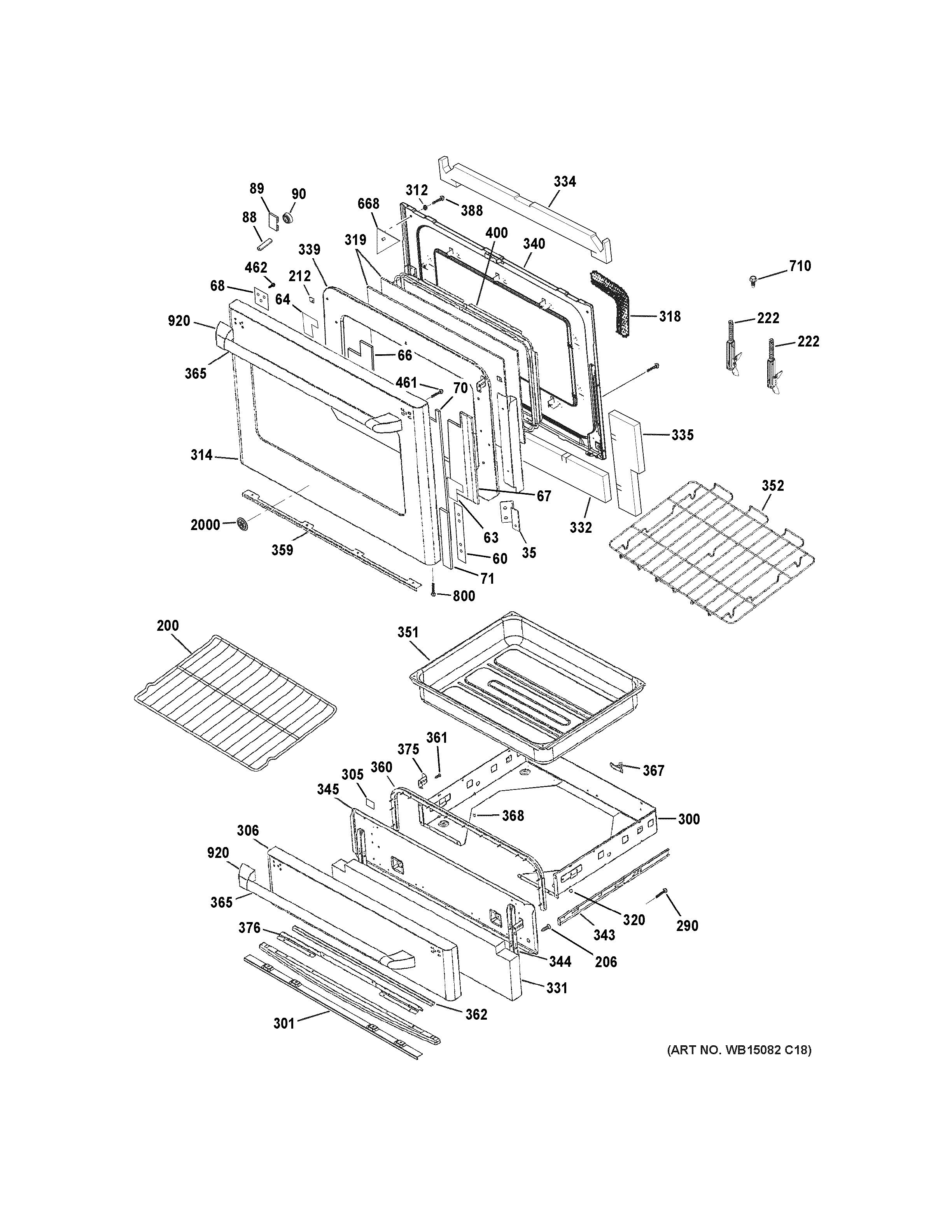

CGS985SET7SS DOOR & DRAWER PARTS

Products

PositionProduct
35GEN WB02K10357
60MANNIGLASS WITH FOIL
63FOIL MANIFOLD
64FOIL MANIFOLD
66MANNIGLASS WITH FOIL
67MANNIGLASS WITH FOIL
68INSULATION BRACKET DOOR
70FOIL GLASS DOOR
71INSULATION DOOR
88GEN WB02K0062
89PAD TRIM
90WB02X28737 GE Oven Front Frame Bumper
200WB48X21508 GE Oven Rack
206WB01K10091 GE Oven Screw
212WB1K2 GE Oven Speednut
222WB10X30271 GE Oven Door Hinge
222WB10X30484 GE Oven Door Hinge
290SCREW M4X8
300WB58K10010 GE Oven Frame Drawer & Slide Assembly
301GEN WB07K10378
305PAD
306WB56X23071 GE Range Drawer Cover
312WB1X119D GE Oven Range Washer
314WB56X23070 GE Oven Door Glass and Panel Assembly
318WB32K10052 GE Oven Gasket
319WB57K10174 GE Range Crystal Window Door
320GEN WB02K10343
331GEN WB35K10053
332WB35K10221 GE Range Insulation
334WB35X20077 GE Door Insulation
335WB35K10222 GE Oven Insulation
339WB34K10137 GE Door Insulation Guard
340WB55K10084 GE Door Liner Weld Assembly
343WB63X23060 GE Internal Slide Rail
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10024 GE Oven Drawer Liner
351WB48K10033 GE Oven Drawer Pan
352WB48K10010 GE Oven Baking Drawer Rack
359WB07X20288 GE Oven Barrier Door
360WB04K10017 GE Oven Drawer Gasket Assembly
361WR01X10065 GE Screw
362WB04K10018 GE Oven Lower Gasket
365WB15K10112 GE Range Stainless Steel Handle
367WB02K10111 GE Oven Strike
368WB02K10112 GE Oven Bumper Blue
375WB02K10175 GE Door Bracket
376WB63K10062 GE Oven Drawer Bracket
388WB01K10116 GE Oven Screw 10-16
400WB34K10141 GE Range Oven Glass Metal Frame
461WB1K63 GE Oven Screw
462WB01K10070 GE Oven Screw
668WB35X21691 GE Oven Door Insulation
710WB01T10008 GE Oven Screw 10-32
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
920WB07K10426 GE Oven Endcap Handle
2000GE BADGE GRAY
