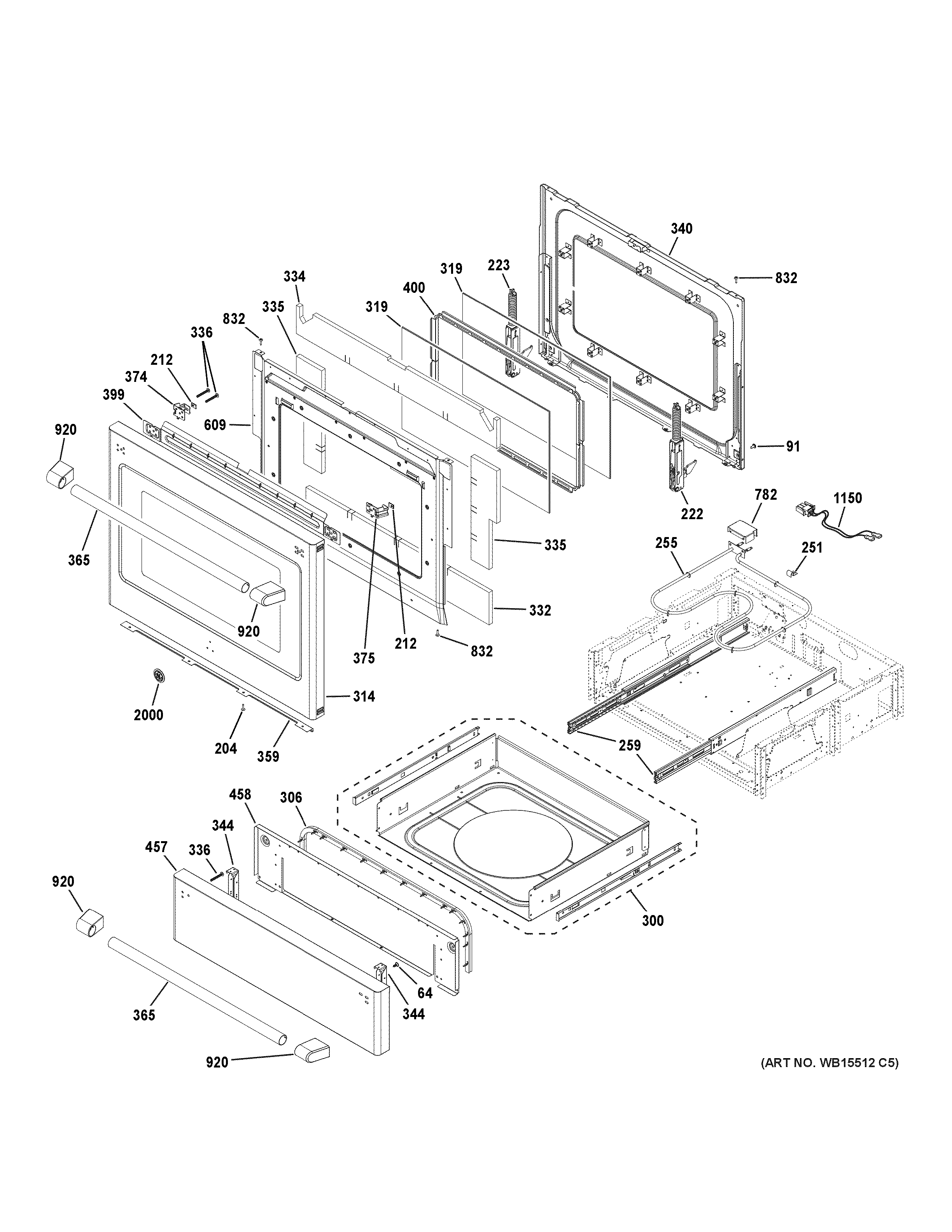

CGS986SEL1SS DOOR & DRAWER PARTS

CGS986SEL1SS DOOR & DRAWER PARTS

Written by

in

CGS986SEL1SS DOOR & DRAWER PARTS

Products

PositionProduct
64SCREW M4X8
91WB01T10008 GE Oven Screw 10-32
204WB1K5062 GE Oven Screw
212WB1K2 GE Oven Speednut
222WB10X30271 GE Oven Door Hinge
223WB10X26769 GE Oven Door Hinge
251WB02K10023 GE Oven Heating Element Clamp
255WB44K10011 GE Oven Heating Element
259WB39K10021 GE Oven Left Drawer Slide Assembly
259WB39K10020 GE Oven Right Drawer Slide Assembly
300WB49X26562 GE Oven Drawer Body Assembly Kit
306GEN WB04K10003
314WB56X28173 GE Oven Door Glass & Panel Assembly
319WB57K10174 GE Range Crystal Window Door
332WB35K10221 GE Range Insulation
334WB35X20077 GE Door Insulation
335WB35K10222 GE Oven Insulation
336WB01K10009 GE Oven Handle Mounting Screw 10-32
340WB56X24760 GE Range Door Liner
344WB02X24742 GE Oven Drawer Bracket
359WB07X28885 GE Range Barrier Door
365WB15X28757 GE Oven Stainless Steel Handle Tube
374BRACKET HANDLE
375BRACKET HANDLE
399PANEL VENT BACKER
400WB34X28742 GE Window Frame Assembly
457WB56X28813 GE Oven Drawer Panel
458WB56X30345 GE Drawer Liner
609WB34X24749 GE Door Guard
782WB34K10128 GE Heating Element Cover
832WR01X10065 GE Screw
920WB34X28700 GE Oven End Cap Handle
1150HARNESS DRAWER
2000WB02X29479 GE Oven Badge Assembly
