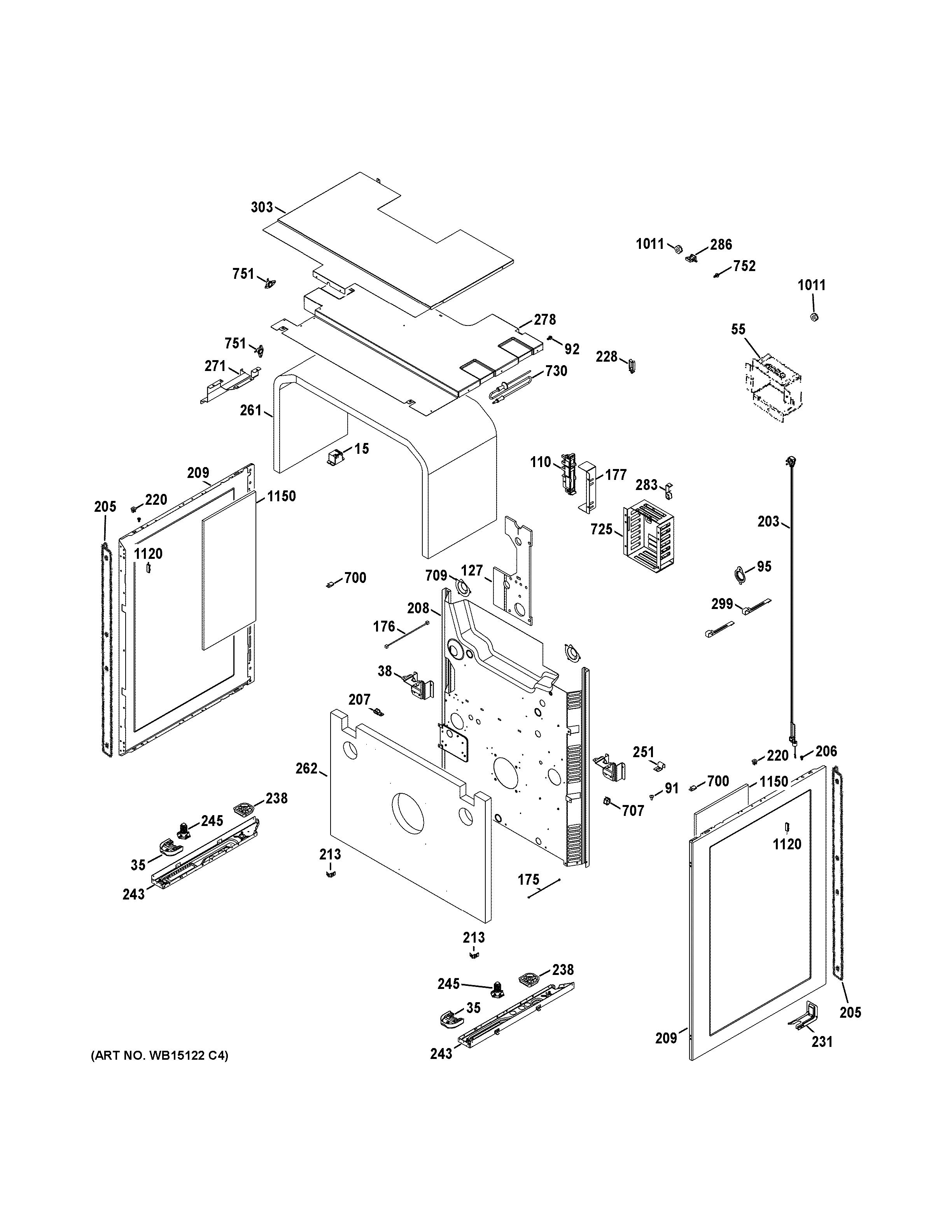

CGS990SET1SS BODY PARTS

Products

PositionProduct
15WB13K10050 GE Oven Relay
35WB02K10345 GE Base Spacer
38WB02K10313 GE Cavity Support Bracket
55WB21K10096 GE Oven Burner Valve 270
55COVER BACK BOX
91WB01T10008 GE Oven Screw 10-32
92WB1X1261 GE Oven Screw
95WB02K10337 GE Cover Cap
110WB13X26360 GE Oven Spark Module
127INSULATION COVER LAMP
175WB18K10083 GE Oven Ground Harness
176WB18K10042 GE Oven Harness Module
177WB13K10044 GE Spark Module Bracket
203WB18K10073 GE Oven Power Cord
205POST SIDE
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208RANGE BACK
209WB63K10119 GE Oven Side Panel, Black
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
228GEN WB02X7066
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
238WB02K10270 GE Spacer Base
243WB63K10268 GE Oven Support Base
243WB63K10267 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
251WB2K3 GE Angle Support
261WB35K10202 GE Oven Insulation Wrap
262WB35K10201 GE Oven Back Insulation
271COVER LATCH
278WB53K10047 GE Oven Top Insulation Guard
283WB02X21679 GE Oven Wire Clip
286WB02K10068 GE Wire Clip
299GEN WB02K0038
303GUARD TOP INSULATION
700RETAINER-INSULATION
707WB02K10267 GE Wire Clip
709WB08K10018 GE Range Light Cover
725WB34K10135 GE Motor Cover
730WB20T10024 GE Oven Thermistor Probe
751WB24K10091 GE Oven Limit Switch Bimetal
752WZ4X345D GE Screw Package 12 C92
1011WB01T10086 GE Keystone Nut 6-32
1120WB02K10178 GE Oven Bumper
1150WB35K10100 GE Range Side Insulation
