CGS990SET1SS GAS & BURNER PARTS

CGS990SET1SS GAS & BURNER PARTS

Written by

in

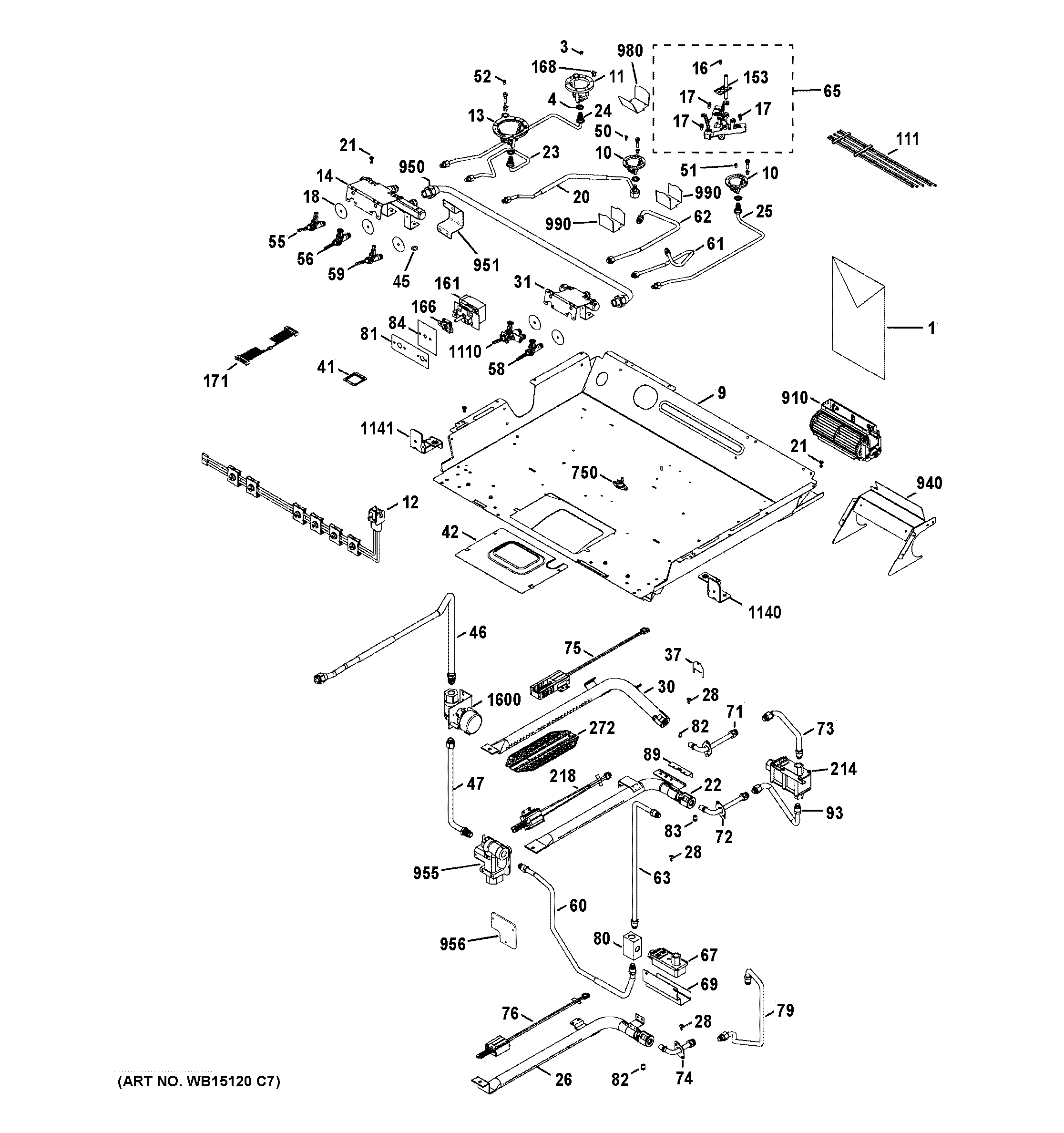

CGS990SET1SS GAS & BURNER PARTS

Products

Position	Product
1	PM OWNERS AND INSTALL
1	PM HELPFUL HINT
1	PM INSTALL INSTRUCTIONS
1	WB02T10111 GE Cleaner Stainless Steel
1	GEN 3110869
1	WB18K10100 GE Right Front Filter Harness
1	WB28K10800 GE Oven Conversion Kit LP
1	LP INSTALL INSTRUCTIONS
1	PM MINI MANUAL
3	WB28K10023 GE Oven Orifice
4	WB01K10037 GE Oven Economic Nut
9	GEN WB63K10136
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02K10361 GE Oven Orifice Holder
12	WB18K10074 GE Oven Harness Switch
13	WB02K10082 GE Oven Bracket XL Cooktop
14	MANIFOLD PIPE ASM
16	WB28K10694 GE Oven Spud Orifice
17	WB28K10693 GE Oven Orifice Spud
18	WB2K24 GE Oven Valve Cover
20	WB28K10696 GE Oven Orifice Holder Assembly
21	WB01K10067 GE Oven Screw 1/4" HD 20
22	WB16K10074 GE Oven Bake Burner
23	WB28K10740 GE Oven Flame Orifice Holder
24	NG ORIFICE & TUBE LR
25	WB28K10741 GE Oven Right Rear Orifice Holder
26	WB16K10073 GE Bake Burner
28	WB1X1293 GE Oven Screw
30	BURNER BROIL UPPER
31	WB28K10686 GE Manifold Pipe Assembly
37	WB34K14 GE Igniter Cover
41	WB63K10063 GE Burner Box Cover
42	WB63K10133 GE Burner Box Cover
45	GEN WB01X1378
46	TUBE MANIFOLD SUPPLY
47	WB28K10716 GE Supply Manifold Tube
50	WB28K10215 GE Oven Orifice
51	WB28K10834 GE Oven Orifice Assembly
52	WB28K10842 GE Oven LP Orifice Spud
55	WB21K10096 GE Oven Burner Valve 270
55	COVER BACK BOX
56	WB21K10080 GE Oven Burner Valve 270 Hi-Cap
58	WB21K10097 GE Oven Burner Valve
59	WB21K10119 GE Oven Burner Valve 270
60	WB28K10796 GE Oven Supply Tube Valve
61	WB28K10698 GE Oven Main Dual Tube Valve
62	TUBE SIMMER DUAL VALVE
63	WB28K10703 GE Range Supply Tube Valve
65	WB28K10785 GE Oven Top Burner Injector Assembly
67	WB21K10161 GE Oven Control Valve Assembly
69	WB02K10325 GE Valve Support Single
71	WB28K10706 GE Oven Upper Bake Elbow
72	WB28K10738 GE Oven Dual Cavity Elbow
73	WB28K10701 GE Oven Safety Tube Valve
74	WB28K10708 GE Oven Lower Bake Elbow
75	GLOWBAR IGNITER
76	WB13K10043 GE Oven Glow Bar Igniter
79	WB28K10795 GE Oven Broil Supply Burner Tube
80	WB02K10324 GE Range Inlet Supply
81	COVER THERMOSTAT
82	WB28K10712 GE Oven Hood Spud Orifice
83	HOOD SPUD ORIFICE
84	WB37K10012 GE Thermostat Cover
89	WB02K10326 GE L Support
93	WB28K10700 GE Burner Supply Tube Bake
111	WB18K10084 GE Oven HV Harness
153	ELECTRODE TOP
161	WB20K10036 GE Oven Control Thermostat
166	WB24K10090 GE Oven Thermostat Switch
168	WB01K10112 GE Range Oven Electrode Clip
171	WB18T10386 GE Oven Touch Glass Wire Harness
214	WB21K10160 GE Oven Control Valve Assembly
218	WB13X25262 GE Oven Glowbar Igniter
272	WB34K10136 GE Oven Broil Shield
750	WB24K10046 GE Oven Limit Switch Bimetal
910	WB26K10019 GE Oven Blower Service Kit
940	WB34K10096 GE Upper Half Oven Duct
950	WB28K10684 GE Manifold Supply Tube
951	GEN WB02X21734
955	WB19K10077 GE Oven Pressure Regulator
956	WB02K10352 GE Regulator Pressure Insulation
980	WB02K10167 GE Flow Deviator Assembly
990	WB02K10168 GE Deflector
1110	WB21K10141 GE Oven Dual Gas Valve Assembly
1140	WB02K10249 GE Manifold Panel Support
1141	WB02K10250 GE Manifold Support Panel
1600	WB19K10072 GE Oven Valve Lockout
