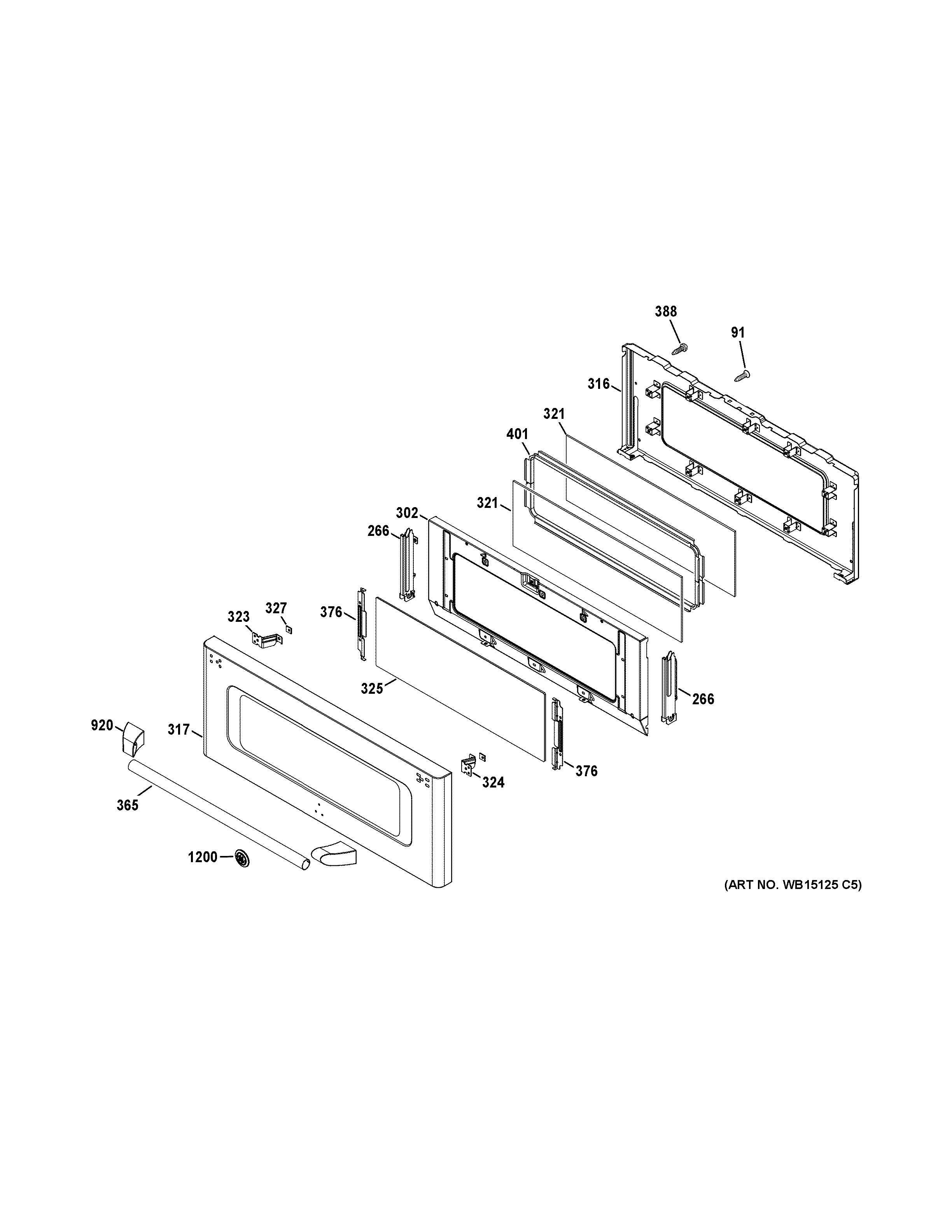

CGS990SET1SS UPPER DOOR

CGS990SET1SS UPPER DOOR

Written by

in

CGS990SET1SS UPPER DOOR

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
266WB10K10026 GE Oven Hinge Receiver
266WB10K10025 GE Oven Hinge Receiver
302GUARD INSULATION
316WB55K10081 GE Door Liner Assembly
317WB57K10153 GE Oven Glass and Trim Assembly
321WB57K10156 GE Oven Crystal Window
323WB02K10369 GE Door Bracket
324BRACKET DOOR
325WB57K10158 GE Crystal Window
327WB01K10093 GE Oven Speednut
365WB15K10112 GE Range Stainless Steel Handle
376WB02K10335 GE Door Inner Bracket
388WB01K10116 GE Oven Screw 10-16
401WB34X28740 GE Window Frame Assembly
920WB07K10426 GE Oven Endcap Handle
1200WB34K10151 GE Cafe Bad
