CGS990SET4SS LOWER OVEN

CGS990SET4SS LOWER OVEN

Written by

in

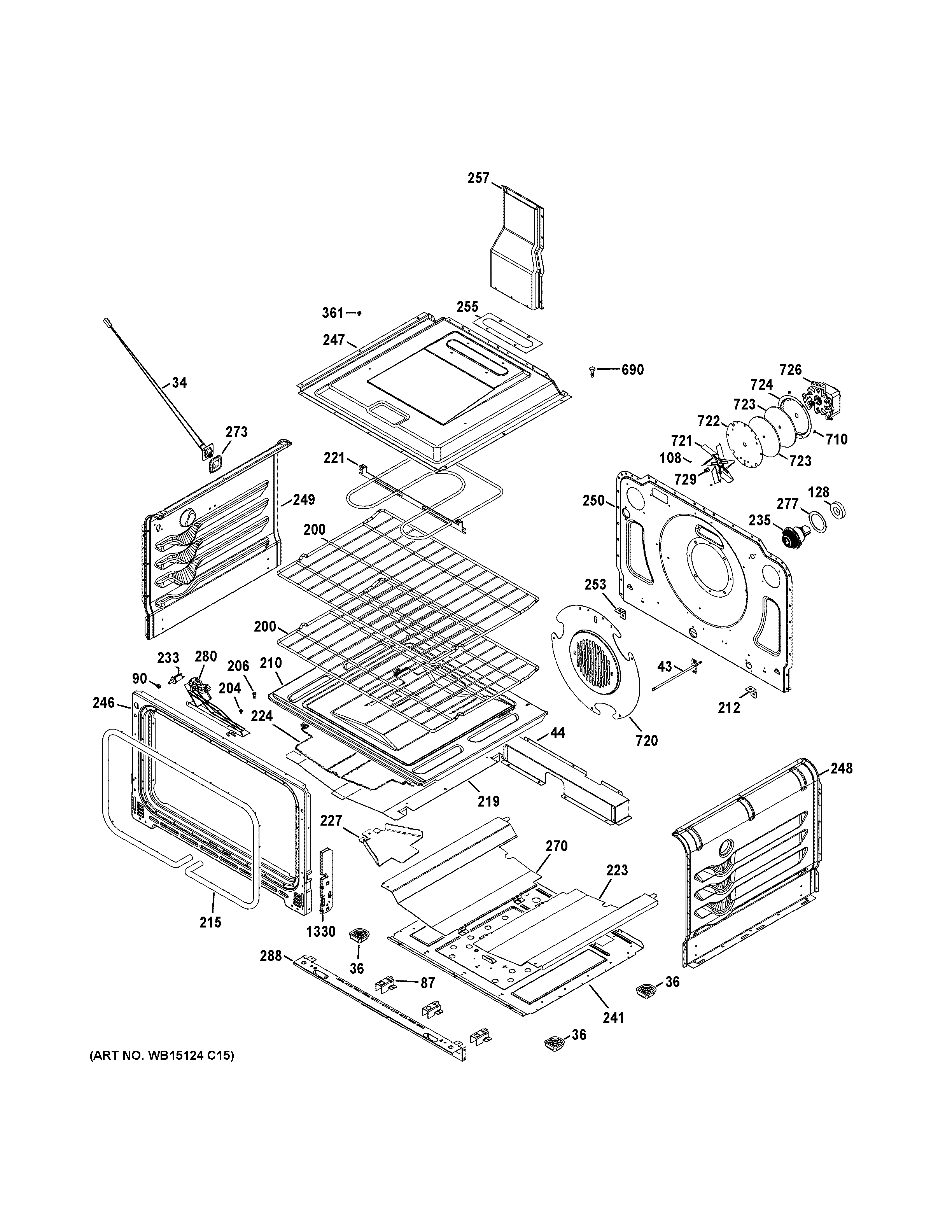

CGS990SET4SS LOWER OVEN

Products

PositionProduct
34WB34K10134 GE Oven Receptacle Assembly
36SPACER BASE
43TEMPERATURE SENSOR
44WB34K10133 GE Shutter Cover
87BRACKET DUCT
90WB02X28737 GE Oven Front Frame Bumper
108WB1X5364 GE Oven Mounting Screw
128LAMP INSULATION
200WB48X20783 GE Oven Rack
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
210WB35X37967 GE Oven Bottom and Deflector Assembly
212WB1K2 GE Oven Speednut
215WB32K10046 GE Oven Gasket
219WB35X37972 GE Oven Bottom Deflector Assembly
221WB44K10034 GE Oven Broil Element Assembly
223WB49K10031 GE Oven Deflector
224WB63X25413 GE Oven Deflector
227WB63X25414 GE Oven Bake Deflector
233WB24K10068 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
241WB63K10239 GE Range Bottom Assembly
246WB63K10251 GE Frame Weld Assembly
247WB53K10039 GE Oven Top
248WB53K10041 GE Oven Side
249OVEN SIDE
250OVEN BACK
253WB02K10023 GE Oven Heating Element Clamp
253CLAMP HEAT ELEMENT
255GASKET VENT
257WB38K10037 GE Vent Assembly
270WB49K10030 GE Oven Deflector
273GEN WB02X8309
277WB32K10044 GE Oven Light Gasket
280WB02K10318 GE Oven Lower Latch Assembly
288WB63K10208 GE Brace
361WB01K10047 GE Drawer Screw 10-32 HXW 9/16
690WZ5X158D GE Screw Package of 12
710WB1X536 GE Oven Screw
720WB34K10132 GE Fan Cover
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10038 GE Fan Insulator Range
724WB02K10034 GE Range Fan Support
726WB26K10003 GE Oven Convection Fan Motor
729WB02T10017 GE Oven Nut
1330WB10K10029 GE Oven Receiver Hinge
