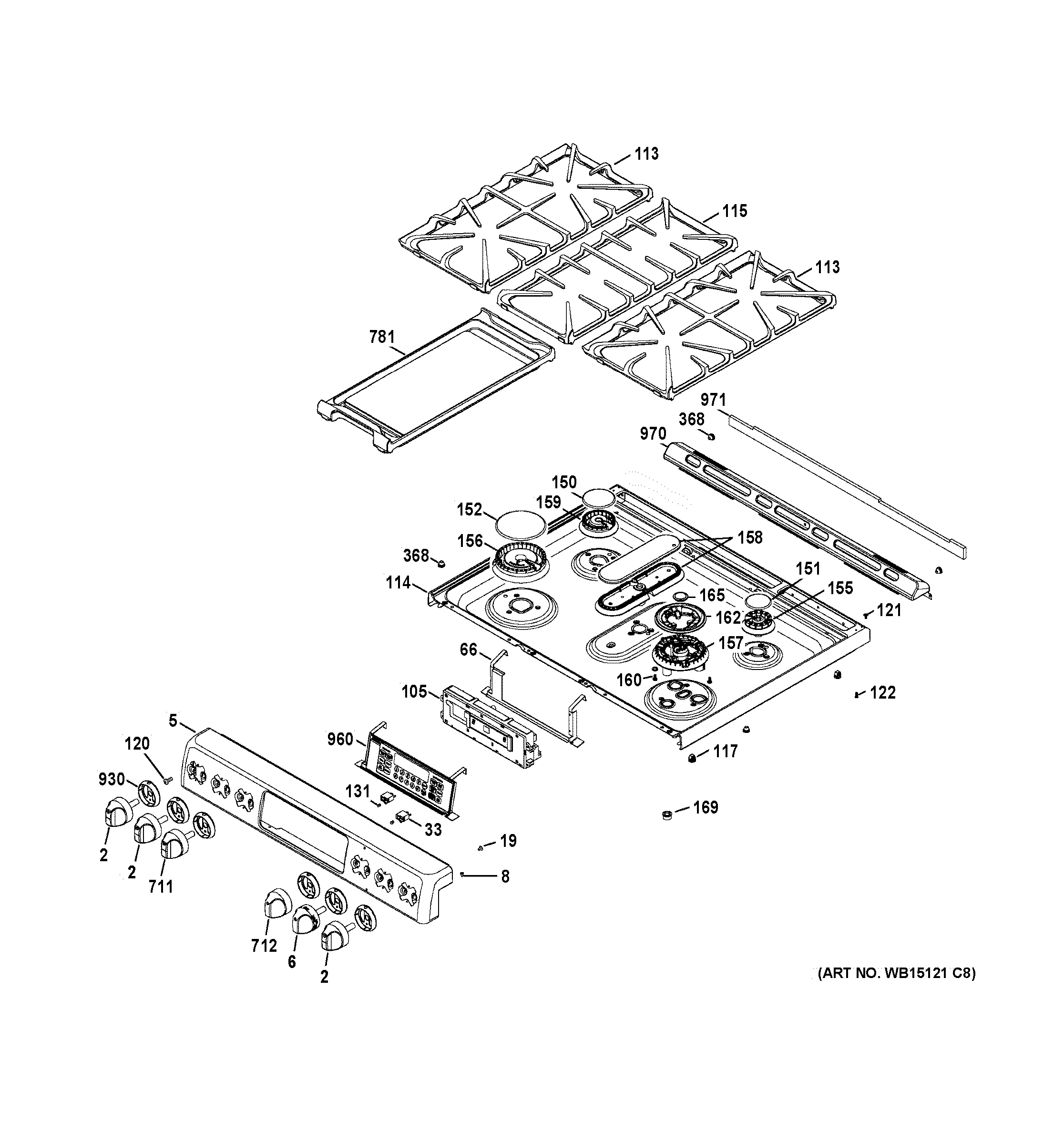

CGS990SET6SS CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB03X23083 GE Oven Knob Assembly
5	WB36X23120 GE Oven Manifold Panel
6	KNOB ASSEMBLY
8	WB01K10002 GE Oven Screw 8-32
19	WB1K8 GE Oven Thermostat Screw
33	WB25K10010 GE Oven Light Indicator Pilot
66	WB02K10169 GE Control Bracket
105	WB27K10423 GE Oven Control ERC3HP
113	WB31K10219 GE Oven Cast Side Grate
114	WB62X25403 GE Range Top
115	WB31K10218 GE Oven Cast Center Grate
117	WB14K10004 GE Oven Pin Locator
120	WB1K45 GE Oven Screw and Washer Assembly
121	WB1K5119 GE Oven Screw
122	WB01X24460 GE Oven Screw
131	WB25K10009 GE Oven Lens
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB29K10022 GE Oven Burner Cap Assembly
152	CAP BURNER ASM (15K)
155	WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156	WB16K10062 GE Oven Surface Burner Base
157	WB16X24999 GE Oven Triple Ring Burner
158	WB16K10076 GE Oven Oval Burner Assembly
159	WB16K10055 GE Oven Burner Base
160	WB01K10110 GE Oven Trilobular Screw
162	WB29K10044 GE Stove Burner Cap Cover
165	WB29K10045 GE Oven Surface Burner Cap
169	WB16K10083 GE Oven Venturi 15K LP
368	WB2K15 GE Oven Grate Bumper
711	WB03X23082 GE Range Burner Knob
712	WB03X26522 GE Oven Thermostat Knob Assembly
781	WB31K10220 GE Oven Griddle
930	WB04K10037 GE Oven Bezel Knob
960	WB27K10369 GE Oven Glass & Touch Board Assembly
970	WB07X25421 GE Vent Trim
971	VENT TRIM INSULATION
