CGS990SET9SS UPPER OVEN

CGS990SET9SS UPPER OVEN

Written by

in

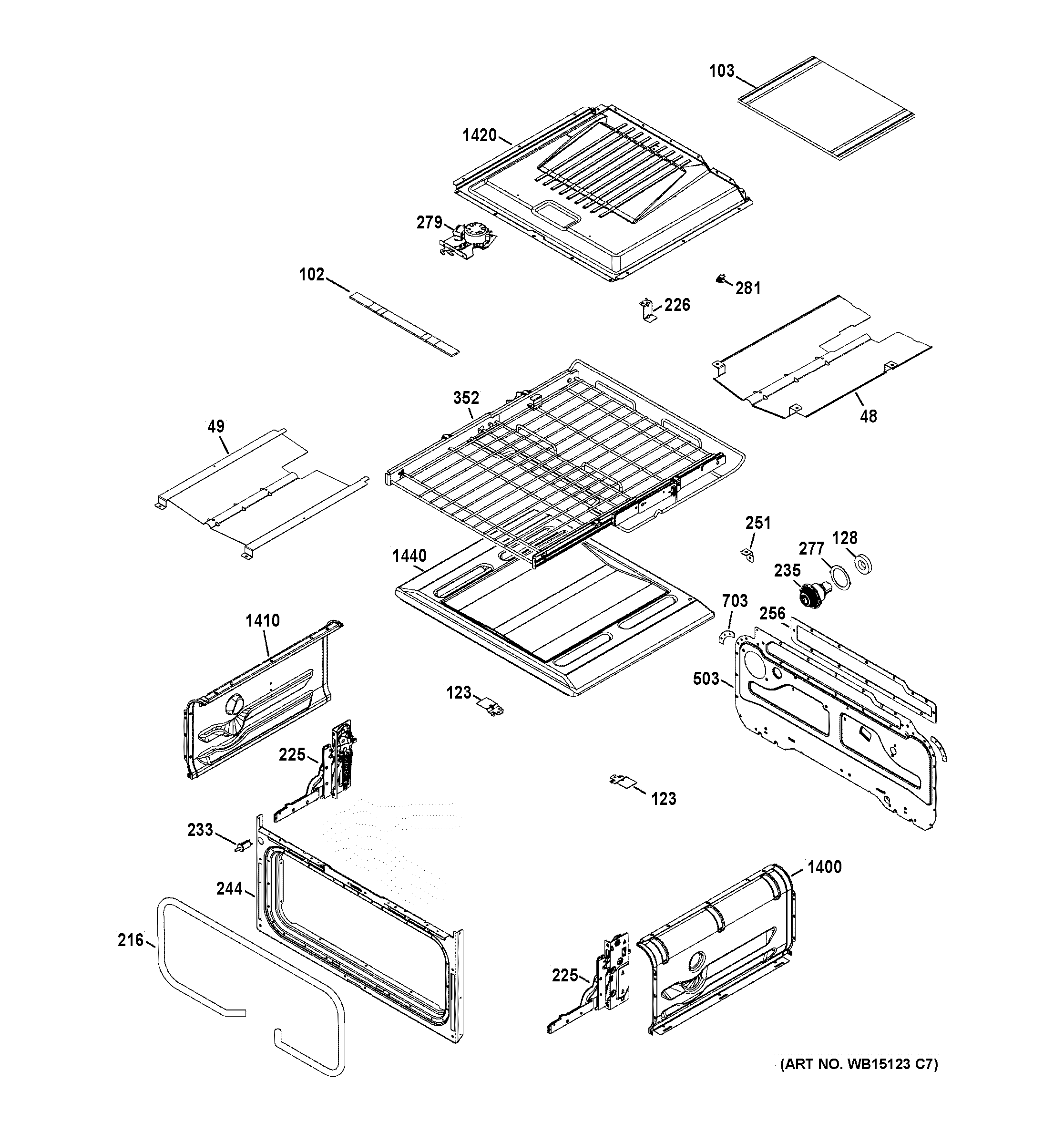

CGS990SET9SS UPPER OVEN

Products

PositionProduct
48WB49K10028 GE Oven Broil Deflector
49WB49K10029 GE Oven Bake Deflector Upper Center
102WB35K10204 GE Oven Insulation Wrap
103WB35K10205 GE Oven Insulation Wrap
123WB49K10036 GE Bake Deflector Component
128LAMP INSULATION
216WB32K10047 GE Oven Gasket
225WB10K10027 GE Oven Hinge Assembly
225WB10K10028 GE Oven Hinge Assembly
226BRACE OVEN TOP
233WB24K10068 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
244WB63K10250 GE Front Frame
251WB2K3 GE Angle Support
256GEN WB32K0001
277WB32K10044 GE Oven Light Gasket
279WB02K10315 GE Oven Automatic Latch
281WB02K10073 GE Oven Clip Capillary
352WB39K10040 GE Oven Rack Slide Assembly
503OVEN BACK UC
703BRACKET OVEN
1400WB53K10042 GE Oven Side UCS
1410WB53K10043 GE Oven Side Upper Cover
1420WB53K10044 GE Oven Top
1440WB63X20786 GE Oven Bottom Unit
