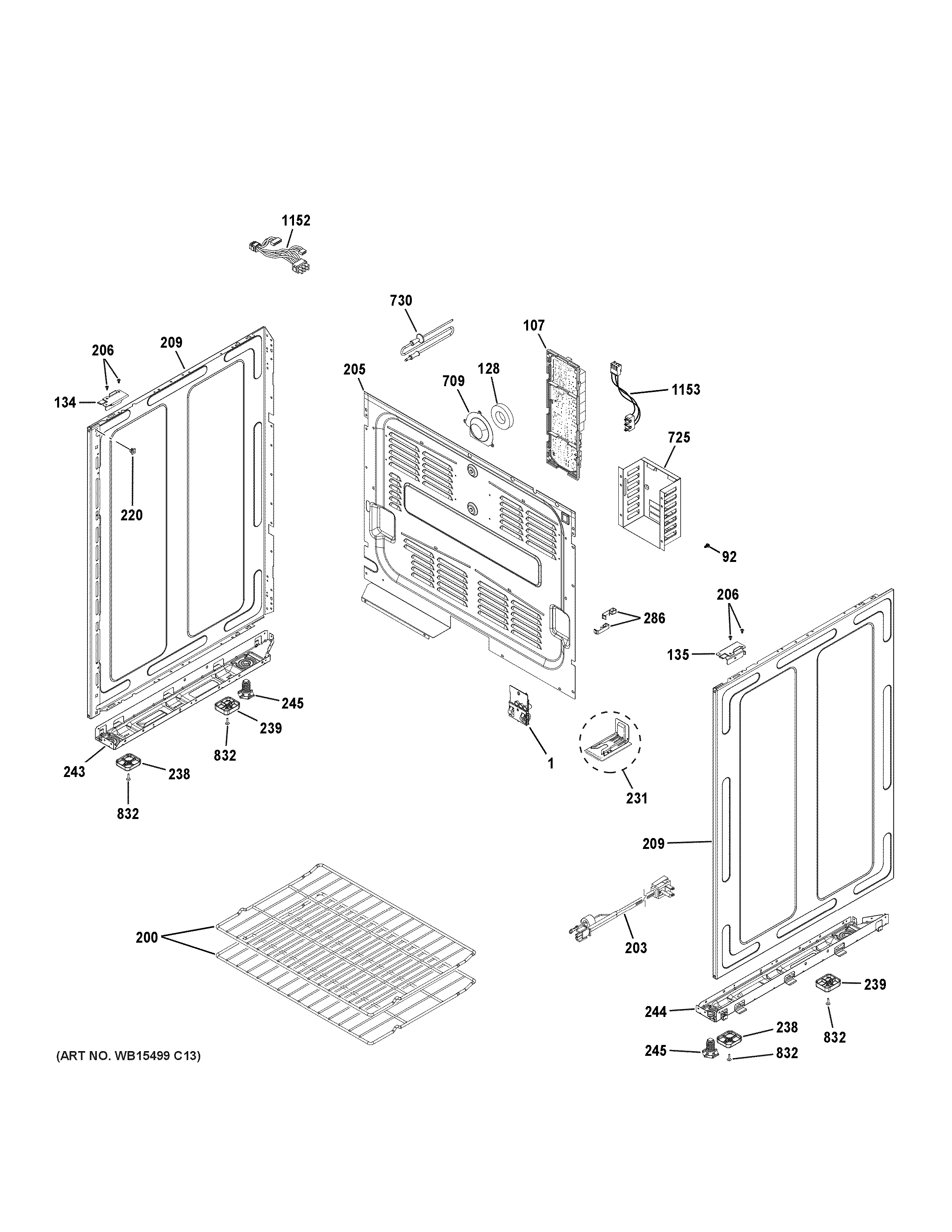

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB28X39142 GE LP Conversion Kit |
| 1 | WB28X29255 GE Range LP High Altitude Kit |
| 1 | WB28X29254 GE Range Natural Gas High Altitude Kit |
| 92 | WB1X1261 GE Oven Screw |
| 107 | WB27X29500 GE Oven Machine Board with Frame |
| 128 | LAMP INSULATION |
| 134 | FRONT SUPPORT LH |
| 135 | FRONT SUPPORT RH |
| 200 | WB48X21508 GE Oven Rack |
| 203 | WB18X28855 GE Oven Power Cord |
| 205 | COVER BACK |
| 206 | WB01K10091 GE Oven Screw |
| 209 | WB56X28847 GE Oven Side Panel |
| 220 | GEN WB02K0008 |
| 231 | WB02K10254 GE Oven Anti-Tip Bracket Assembly |
| 238 | WB16X20448 GE Oven Spacer Base |
| 239 | WB16X20449 GE Oven Base Spacer |
| 243 | WB63X25480 GE Oven Support Base Left |
| 244 | WB63X25481 GE Oven Support Base Right |
| 245 | WB02K10182 GE Oven Leveling Leg |
| 286 | WB02X21679 GE Oven Wire Clip |
| 709 | WB08K10018 GE Range Light Cover |
| 725 | WB34X25587 GE Motor Cover |
| 730 | WB20T10024 GE Oven Thermistor Probe |
| 832 | WR01X10065 GE Screw |
| 1152 | WB18X31621 GE Harness Latch |
| 1153 | WB18X28691 GE Oven Direct Connect Wiring Harness |
