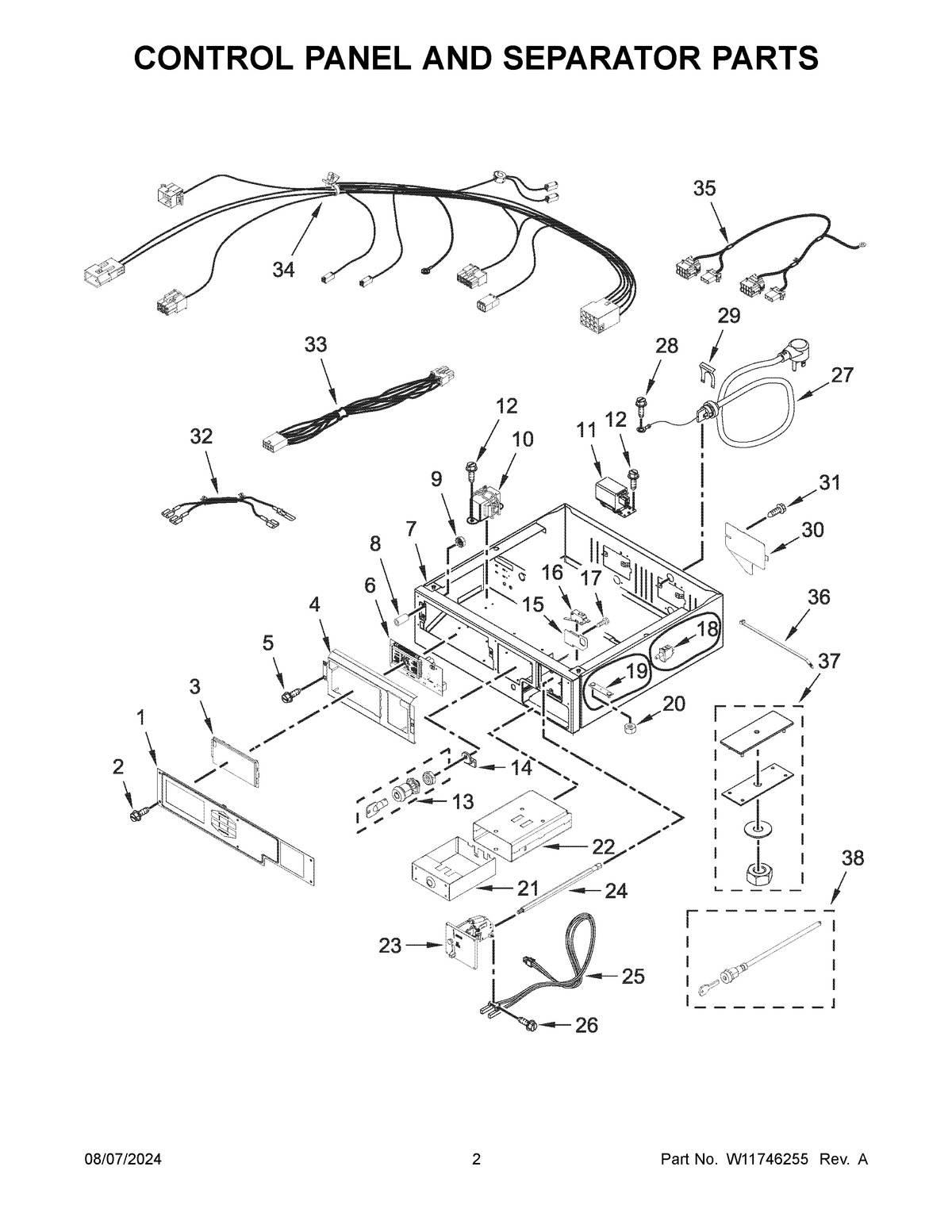

CGSP2958JQ0 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

PositionProduct
1FACIA CONSOLE
2WPW10131119 Whirlpool Screw
3WPW10133268 Whirlpool Cover
4PLATE, CONTROL MOUNTING
5W10756178 Whirlpool Screw
6CNTRL-ELEC
7COLLAR (NOT ILLUSTRATED)
7AWP33001882 Whirlpool Screw
7B3400500 Whirlpool Screw
9WPW10139046 Whirlpool Nut
10WPW10133285 Whirlpool Transformer
11WPW10367632 Whirlpool Filter
13W11231586 Whirlpool Lock
14W11165684 Whirlpool Cam
15W10160652 Whirlpool Bracket
16WPW10447152 Whirlpool VLT Switch
173400408 Whirlpool Screw
18WPW10131838 Whirlpool Voltage Switch
19W10159907 Whirlpool Bracket
20WPW10080190 Whirlpool Nut
21W11204019 Whirlpool Coin Box
22W11204020 Whirlpool Box
23ASSEMBLY, SINGLE COIN DROP
24WPW10137319 Whirlpool Bolt
25WPW10247389 Whirlpool Dryer Coin Optic Sensor
26WP3395530 Whirlpool Screw
27CORD-POWER
28W10850756 Whirlpool Screw
29W11712577 Whirlpool Clip
30W11539855 Whirlpool Refrigerator Pump
31WP90767 Whirlpool Screw
32JUMPER, LINE FILTER
33W10111027 Whirlpool Wire
34HARNESS, COLLAR
35JUMPER, LOWER TO COLLAR
36WPW10155270 Whirlpool Wire Tie
37W11416034 Whirlpool Security Kit
38W11308563 Whirlpool Lock Assembly
