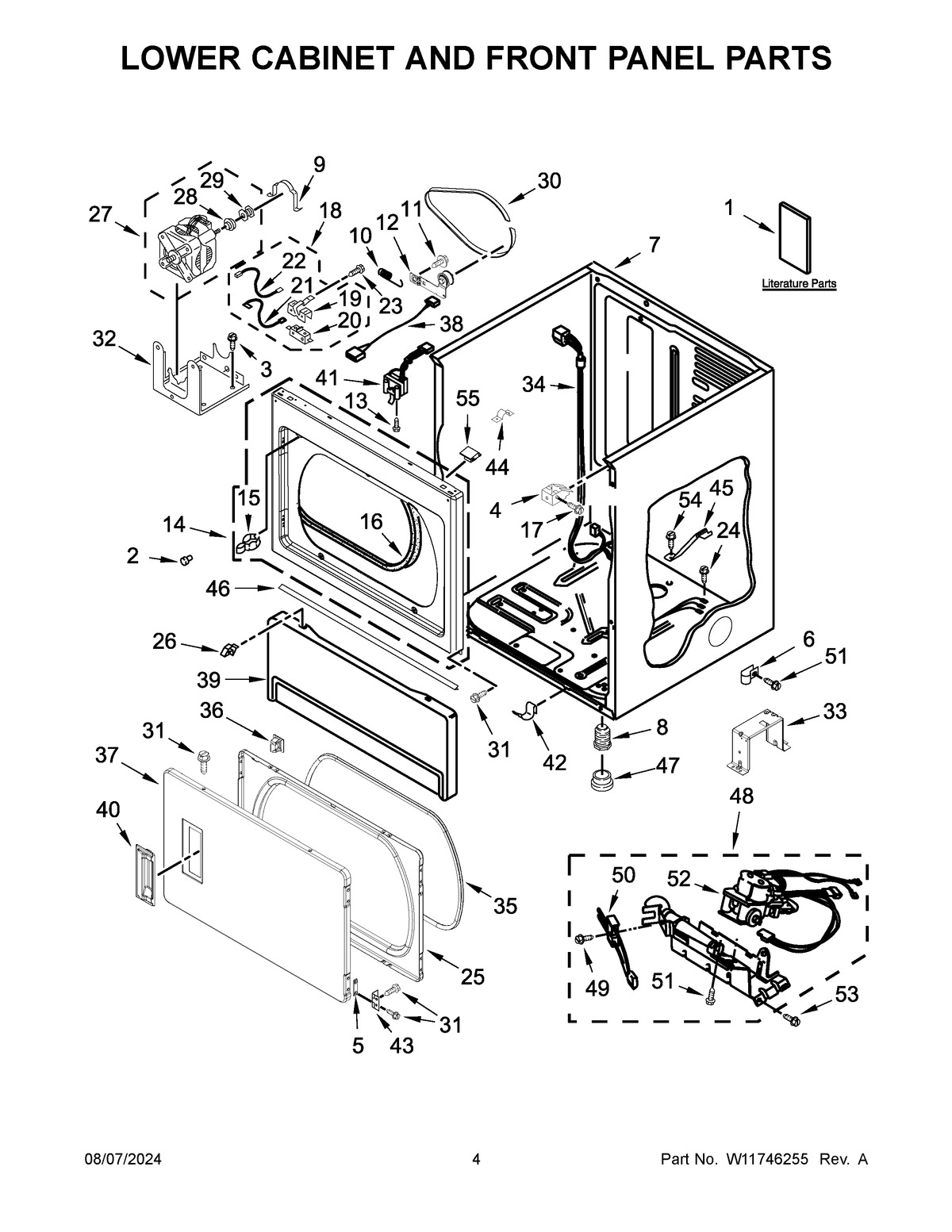

CGSP2958JQ0 03 – LOWER CABINET AND FRONT PANEL PARTS

CGSP2958JQ0 03 – LOWER CABINET AND FRONT PANEL PARTS

Written by

in

CGSP2958JQ0 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
NIW10470674 Whirlpool Dryer Side Vent Exhaust Kit
1INSTALLATION INSTRUCTIONS
1ATECH SHEET
2693152 Whirlpool Bumper
3SCREW
43391846 Whirlpool Clip
5W10191265 Whirlpool Plug
63387561 Whirlpool Clamp
7W11417441 Whirlpool Cabinet
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10344193 Whirlpool Idler Pulley
13WP3395530 Whirlpool Screw
14W10242810 Whirlpool Panel
16WP3387242 Whirlpool Seal
17681615 Whirlpool Screw
19WP8066120 Whirlpool Lever Assembly
20279782 Whirlpool Lid Switch
213398948 Whirlpool Wire
22W10167612 Whirlpool Wire
23WP98129 Whirlpool Screw
24WP488729 Whirlpool Refrigerator Door Screw
25280083 Whirlpool Rear Door
26WP3388229 Whirlpool Dryer Spring Clip
27W10841144 Whirlpool Drive Motor
28WP3393657 Whirlpool Belt Retainer
29WP8066184 Whirlpool Dryer Motor Pulley
30WPW10131172 Whirlpool Belt
31WP488627 Whirlpool Refrigerator Screw
32WP3387118 Whirlpool Base Assembly
33Bracket, Support
34HARNESS, UPPER/LOWER
35WP3390735 Whirlpool Door Seal
36279570 Whirlpool Dryer Door Latch Kit
37W11663440 Whirlpool Door
388283298 Whirlpool Wire Harness
39WP3406797 Whirlpool Toe Panel
40W11209427 Whirlpool Handle
41SWITCH-DOOR DRYER
42WPW10291934 Whirlpool Clip
43WPW10279703 Whirlpool Hinge Assembly
448528351 Whirlpool Clip
45W10181903 Whirlpool Bracket
46SEAL, DEFLECTOR
47BOOT, FOOT
48BURNER ASSEMBLY
49WPW10366705 Whirlpool Screw
50279311 Whirlpool Dryer Flat Igniter with Bracket
51WP693995 Whirlpool Screw
52279923 Whirlpool Gas Valve
55WP345670 Whirlpool Lock
