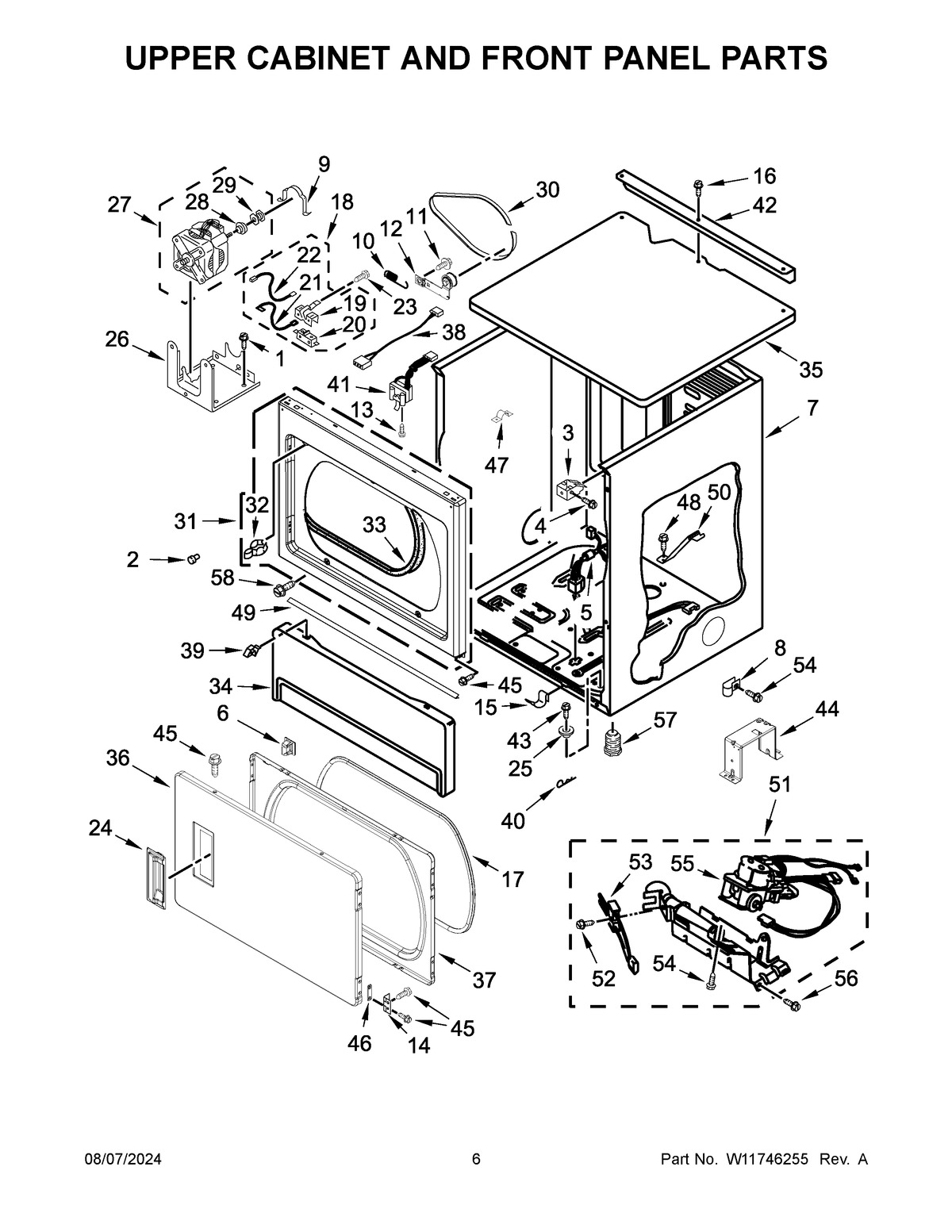

CGSP2958JQ0 04 – UPPER CABINET AND FRONT PANEL PARTS

CGSP2958JQ0 04 – UPPER CABINET AND FRONT PANEL PARTS

Written by

in

CGSP2958JQ0 04 – UPPER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
NIW10470674 Whirlpool Dryer Side Vent Exhaust Kit
1SCREW
2693152 Whirlpool Bumper
33391846 Whirlpool Clip
4681615 Whirlpool Screw
5HARNESS, UPPER/LOWER
6279570 Whirlpool Dryer Door Latch Kit
7W11417441 Whirlpool Cabinet
83387561 Whirlpool Clamp
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10344193 Whirlpool Idler Pulley
13WP3395530 Whirlpool Screw
14WPW10279703 Whirlpool Hinge Assembly
15WPW10291934 Whirlpool Clip
16WP488729 Whirlpool Refrigerator Door Screw
17WP3390735 Whirlpool Door Seal
19WP8066120 Whirlpool Lever Assembly
20279782 Whirlpool Lid Switch
213398948 Whirlpool Wire
22W10167612 Whirlpool Wire
23WP98129 Whirlpool Screw
24W11209427 Whirlpool Handle
25BUSHING
26WP3387118 Whirlpool Base Assembly
27W10841144 Whirlpool Drive Motor
28WP3393657 Whirlpool Belt Retainer
29WP8066184 Whirlpool Dryer Motor Pulley
30WPW10131172 Whirlpool Belt
31W10242810 Whirlpool Panel
33WP3387242 Whirlpool Seal
34WP3406797 Whirlpool Toe Panel
353389351 Whirlpool Top
36W11663440 Whirlpool Door
37280083 Whirlpool Rear Door
388283298 Whirlpool Wire Harness
39WP3388229 Whirlpool Dryer Spring Clip
40COTTER PIN
41SWITCH-DOOR DRYER
423979115 Whirlpool Bracket
43285875 Whirlpool Security Kit
44Bracket, Support
45WP488627 Whirlpool Refrigerator Screw
46W10191265 Whirlpool Plug
478528351 Whirlpool Clip
49SEAL, DEFLECTOR
50W10181903 Whirlpool Bracket
51BURNER ASSEMBLY
52WPW10366705 Whirlpool Screw
53279311 Whirlpool Dryer Flat Igniter with Bracket
54WP693995 Whirlpool Screw
55279923 Whirlpool Gas Valve
5749621 Whirlpool Leveling Feet
58SCREW
