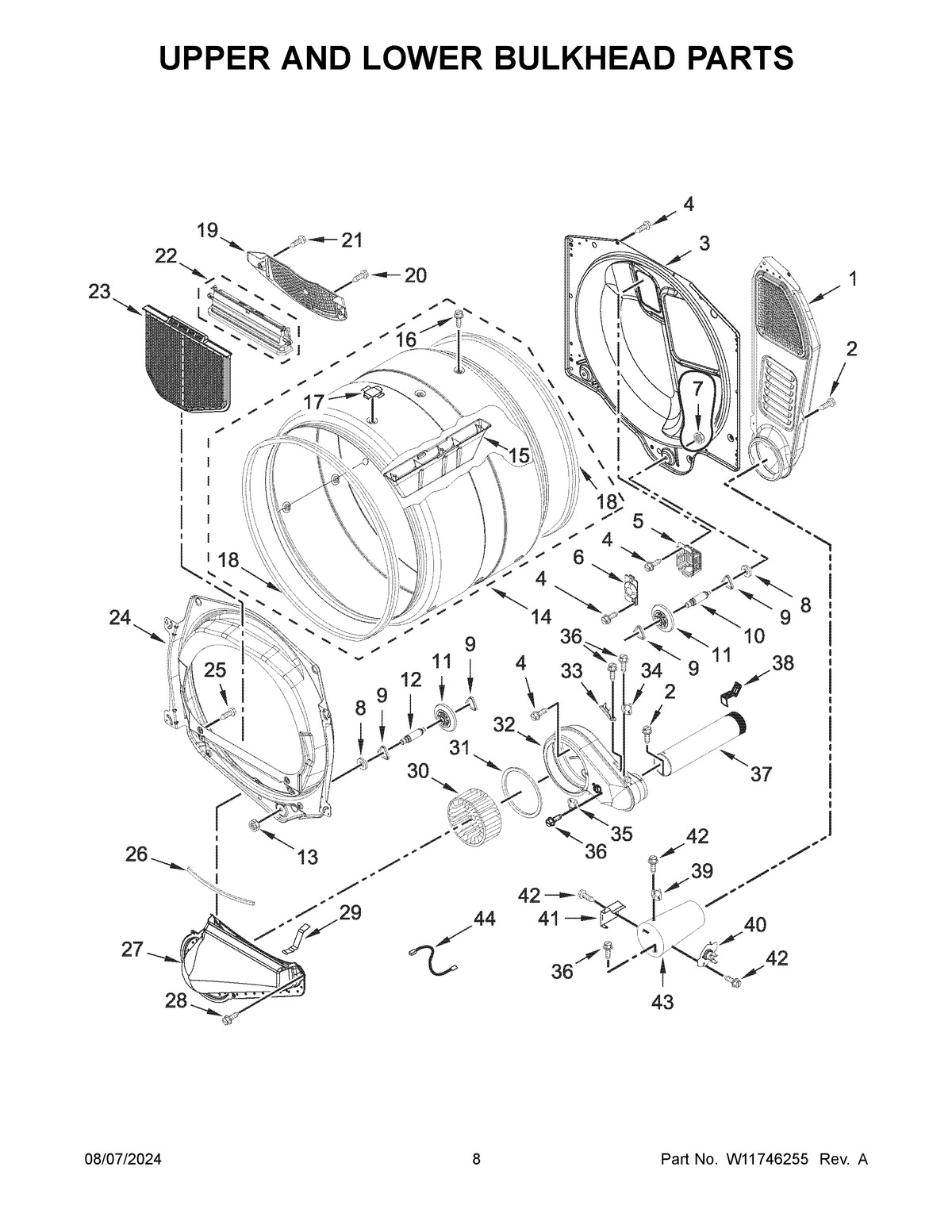

CGSP2958JQ0 05 – UPPER AND LOWER BULKHEAD PARTS

Products

Position	Product
1	W11168650 Whirlpool Air Duct
2	WP90767 Whirlpool Screw
3	W11299301 Whirlpool Bulkhead Assembly
4	WP488729 Whirlpool Refrigerator Door Screw
5	8578825 Whirlpool Bracket
6	W11226088 Whirlpool Lens Assembly
7	WPW10080190 Whirlpool Nut
8	W11236646 Whirlpool Washer Assembly
9	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
10	SHAFT
11	WPW10314173 Whirlpool Dryer Drum Support Wheel
12	SHAFT
13	WPW10080210 Whirlpool Nut
14	W10545923 Whirlpool Drum Assembly
15	WPW10113136 Whirlpool Drum Baffle
16	W10853898 Whirlpool Screw
17	8066086 Whirlpool Plug
18	280114 Whirlpool Dryer Drum Seal
19	W11086603 Whirlpool Dryer Link Screen Air Grille
20	WP3387230 Whirlpool Screw
22	W11129408 Whirlpool Out Housing
23	W10120998 Whirlpool Dryer Lint Screen Filter
24	WP697557 Whirlpool Bulkhead Assembly
25	WP308685 Whirlpool Microwave Screw
26	WP697813 Whirlpool Seal
27	WPW10128606 Whirlpool Lint Duct
28	WP489463 Whirlpool Refrigerator Screw
29	WP8066208 Whirlpool Clip
30	WHEEL
31	WP697770 Whirlpool Blower Cover Plate Seal
32	W11744012 Whirlpool Housing
33	WP3392519 Whirlpool Dryer Thermal Fuse
34	WPW10131836 Whirlpool Thermostat
35	WPW10193019 Whirlpool Thermostat
36	WP693995 Whirlpool Screw
37	279936 Whirlpool Exhaust Pipe
38	W11684573 Whirlpool Clip Assembly
39	THRMST-FIX
40	WP8573713 Whirlpool Thermal Fuse
41	WP338906 Whirlpool Dryer Gas Sensor
43	WP8573824 Whirlpool Funnel
44	WP3401707 Whirlpool Wire Assembly
