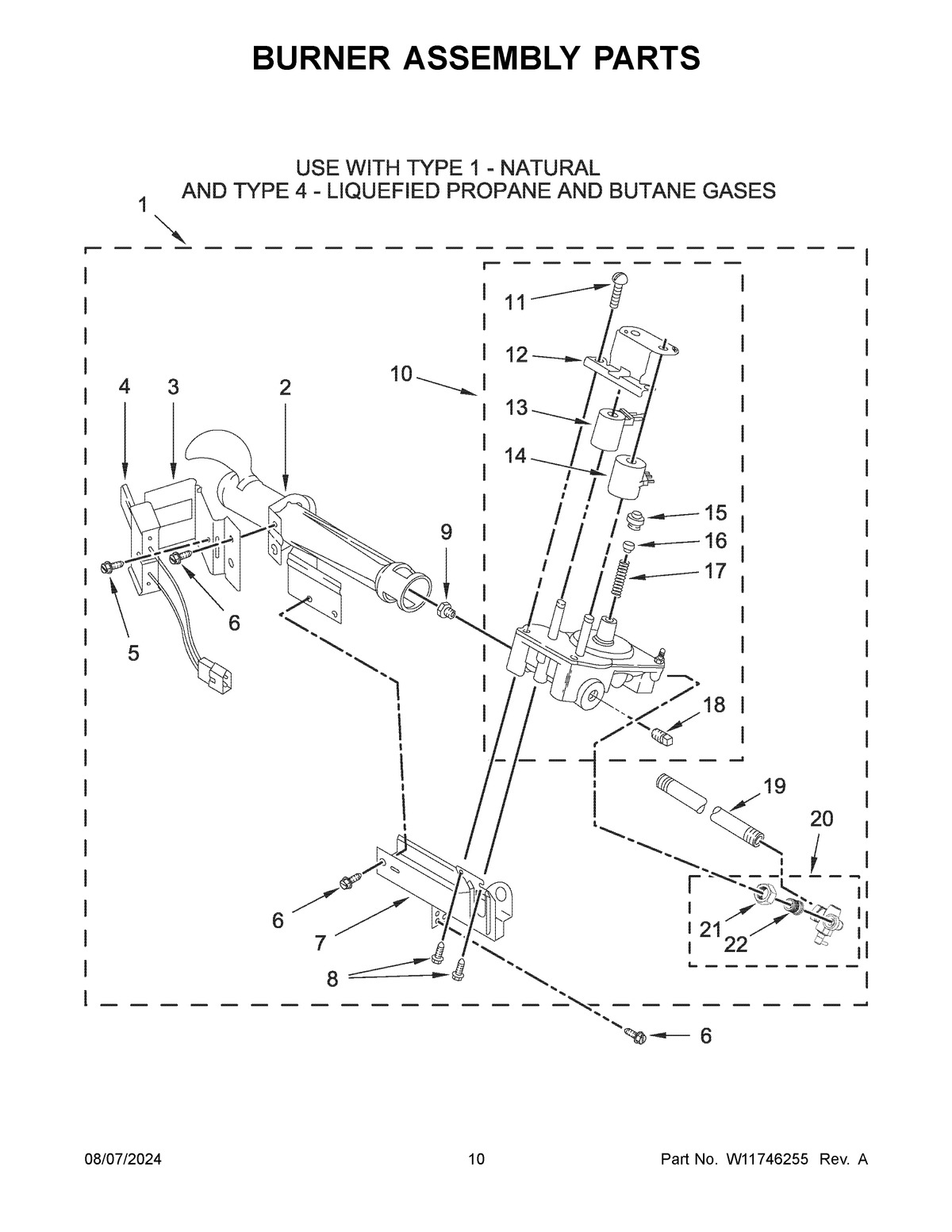

CGSP2958JQ0 06 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	49572A Whirlpool Dryer Propane Gas Conversion Kit
1	BURNER ASSEMBLY
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	Orifice, Burner (Type 1)
10	279923 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
18	W10295523 Whirlpool Plug
19	W10097610 Whirlpool Pipe
20	697441 Whirlpool Valve
21	Nut, Compression
22	3393767 Whirlpool Pipe
