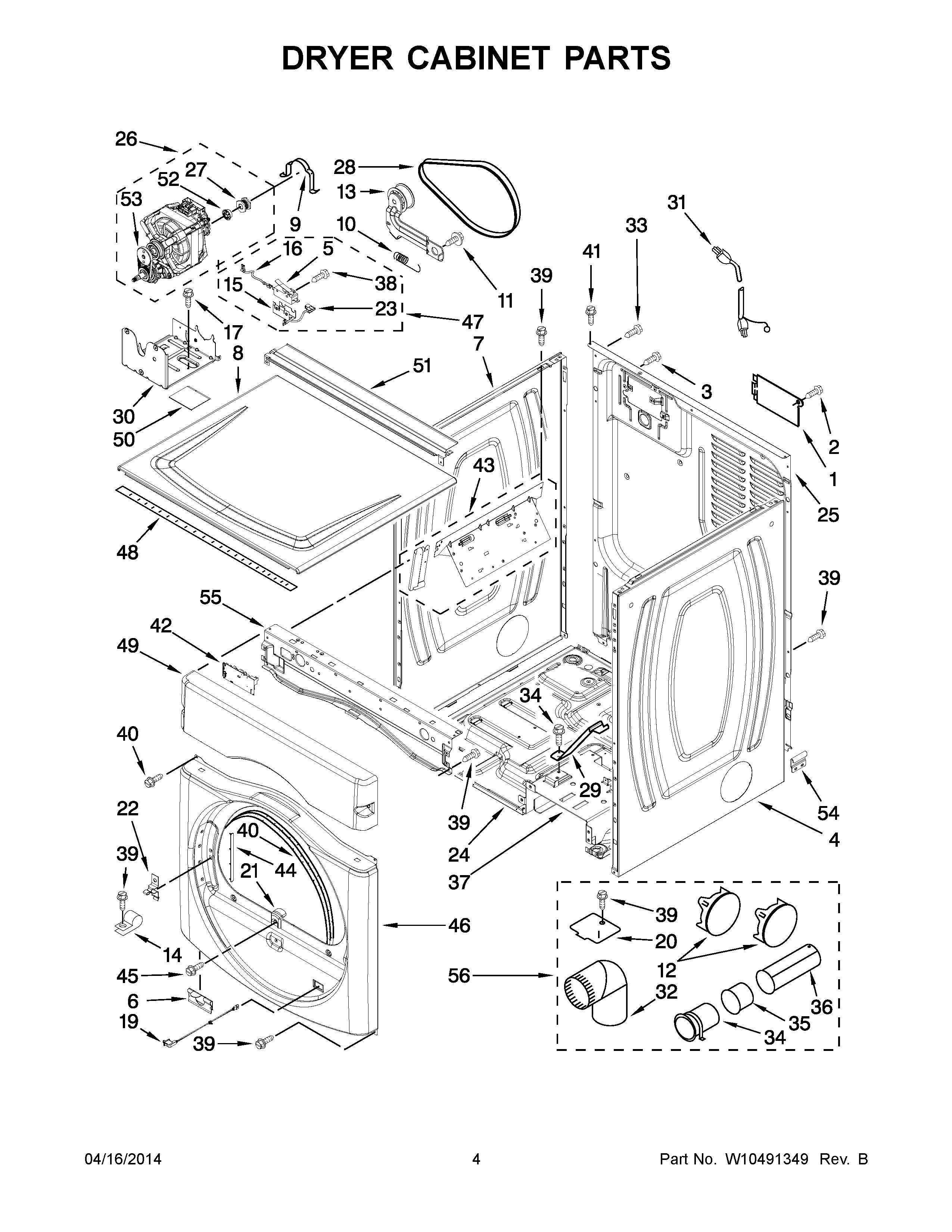

CGT8000AQ0 03 – DRYER CABINET PARTS

CGT8000AQ0 03 – DRYER CABINET PARTS

Written by

in

CGT8000AQ0 03 – DRYER CABINET PARTS

Products

Position	Product
1	W10819767 Whirlpool Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	W10542714 Whirlpool Panel
5	WP8564010 Whirlpool Plug Switch
6	W11295573 Whirlpool Clip
8	WPW10336080 Whirlpool Top Assembly
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	WPW10344192 Whirlpool Idler Pulley
14	3978776 Whirlpool Bracket
15	8564011 Whirlpool Bracket
16	W10167613 Whirlpool Wire
17	SCREW
19	W10128087 Whirlpool Door Switch
20	WPW10354249 Whirlpool Cover
21	8580015 Whirlpool Ramp
22	WP8565122 Whirlpool Strike Assembly
23	WIRE, MOTOR TO BELT SWITCH
24	W11116960 Whirlpool Base Assembly
25	Panel, Rear
26	W11234001 Whirlpool Drive Motor
27	WP8066184 Whirlpool Dryer Motor Pulley
28	WPW10131172 Whirlpool Belt
29	BRACKET, BURNER
30	W11676491 Whirlpool Base
31	W11222083 Whirlpool Power Cord
32	WPW10416072 Whirlpool Elbow
33	WP693995 Whirlpool Screw
34	WP8563747 Whirlpool Exhaust Pipe
35	WPW10331278 Whirlpool Exhaust Pipe
36	WP8563749 Whirlpool Exhaust Pipe
37	VAULT SWITCH, BRACKET
38	W10002600 Whirlpool Screw
39	WP488729 Whirlpool Refrigerator Door Screw
40	WP3387242 Whirlpool Seal
42	WPW10376685 Whirlpool Electronic Control Board
43	WP8563727 Whirlpool Bracket
44	8565043 Whirlpool Plug
45	WP308685 Whirlpool Microwave Screw
46	WPW10117421 Whirlpool Panel
47	W11247665 Whirlpool Switch
48	Seal, Foam
49	W11674367 Whirlpool Console
50	W11113654 Whirlpool Pad
51	BRACKET, WATER CHANNEL
52	WP3393657 Whirlpool Belt Retainer
53	WP3405160 Whirlpool Belt Assembly
54	BRACKET, STACK
55	WP8565237 Whirlpool Bracket Assembly
56	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
