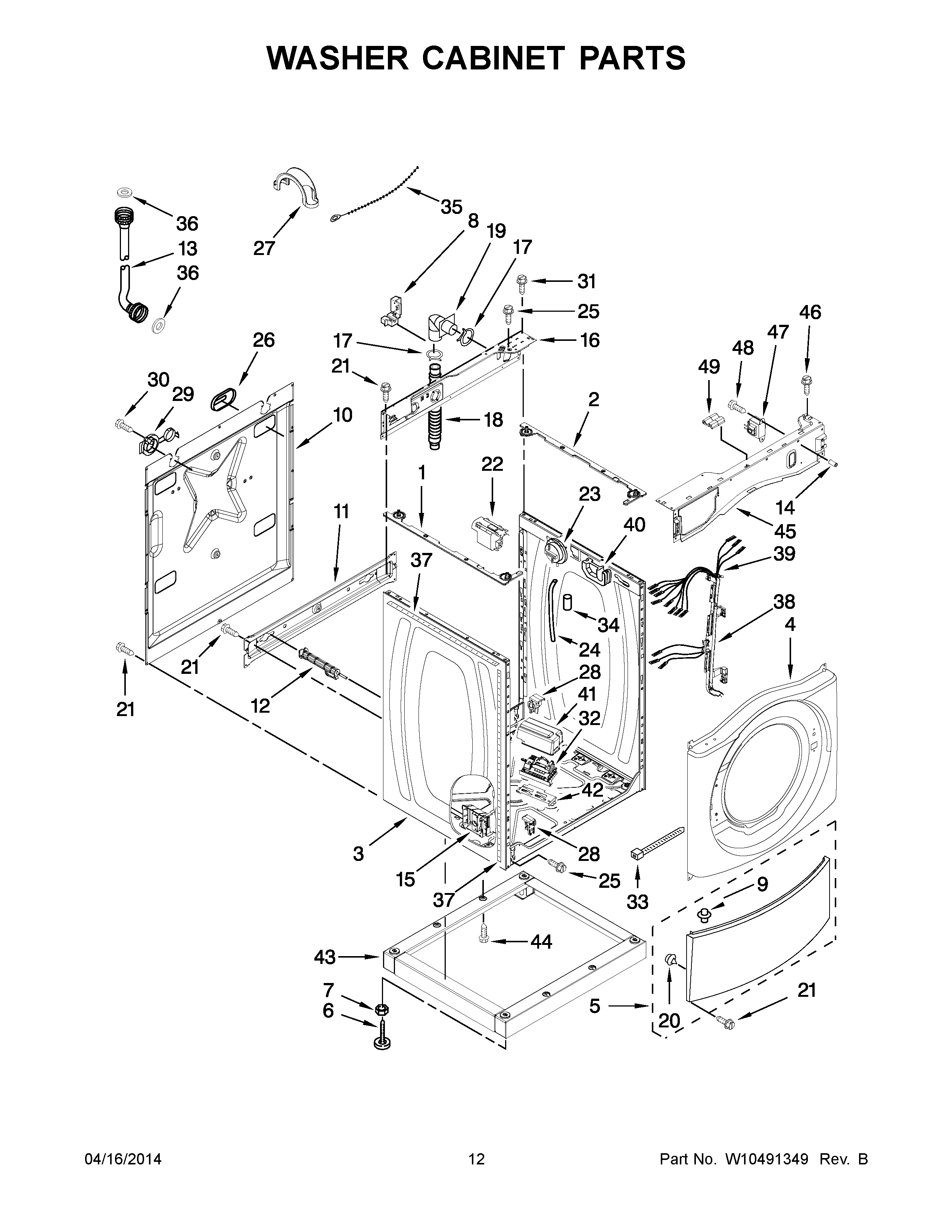

CGT8000AQ0 07 – WASHER CABINET PARTS

Products

Position	Product
1	W11175840 Whirlpool Spacer
2	RAIL-SPACER, RIGHT
3	W10198145 Whirlpool Cabinet
4	WPW10306505 Whirlpool Panel
5	WP8540664 Whirlpool Control Panel
6	W10862938 Whirlpool Leveling Feet
7	WP3359452 Whirlpool Nut
8	8182635 Whirlpool Strain Relief
9	8518891 Whirlpool Rivet
10	PANEL, REAR
11	W10189659 Whirlpool Brace
12	W10763471 Whirlpool Bolt
13	FILL HOSE 5' W/WASHER
13	WP89503 Whirlpool Washer Fill Hose
14	W10018050 Whirlpool Cap Assembly
15	WPW10384849 Whirlpool Electronic Control Board
16	W10244560 Whirlpool Brace
17	WP356138 Whirlpool Hose Clamp
18	WPW10106460 Whirlpool Hose Assembly
19	CONNECTOR
20	238614 Whirlpool Bumper Hinge
22	WPW10367632 Whirlpool Filter
23	SWITCH, PRESSURE
24	HOSE
25	8540479 Whirlpool Screw
26	WP8540268 Whirlpool Cover Assembly
27	WP8577378 Whirlpool Retainer
28	WPW10085220 Whirlpool Switch
29	W11116978 Whirlpool Grommet
30	8182201 Whirlpool Screw
32	W11181678 Whirlpool Electronic Control Board
33	WP2205813 Whirlpool Refrigerator Wire Tie
34	SLEEVE
35	WPW10339879 Whirlpool Wire Tie
36	WP16123 Whirlpool Washer
37	Seal, Foam
38	W10200785 Whirlpool Retainer
39	CCU TO MCU - POWER (2 POLE)
39	DOOR LOCK - POWER
39	W10330830 Whirlpool Wire Harness
39	CCU TO COLD FILL VALVE (4 POLE)
39	W10330829 Whirlpool Wire Harness
39	W10342214 Whirlpool Wire Harness
40	8540643 Whirlpool Bracket
41	COVER, CCU
42	BRACKET, CCU
43	W10103350A Whirlpool Pedestal
44	WPW10346892 Whirlpool Screw
45	BRACKET, CONSOLE
46	WP489442 Whirlpool Refrigerator Screw
47	W11403858 Whirlpool Transformer
48	8540329 Whirlpool Screw
49	BASE, RETAINER
