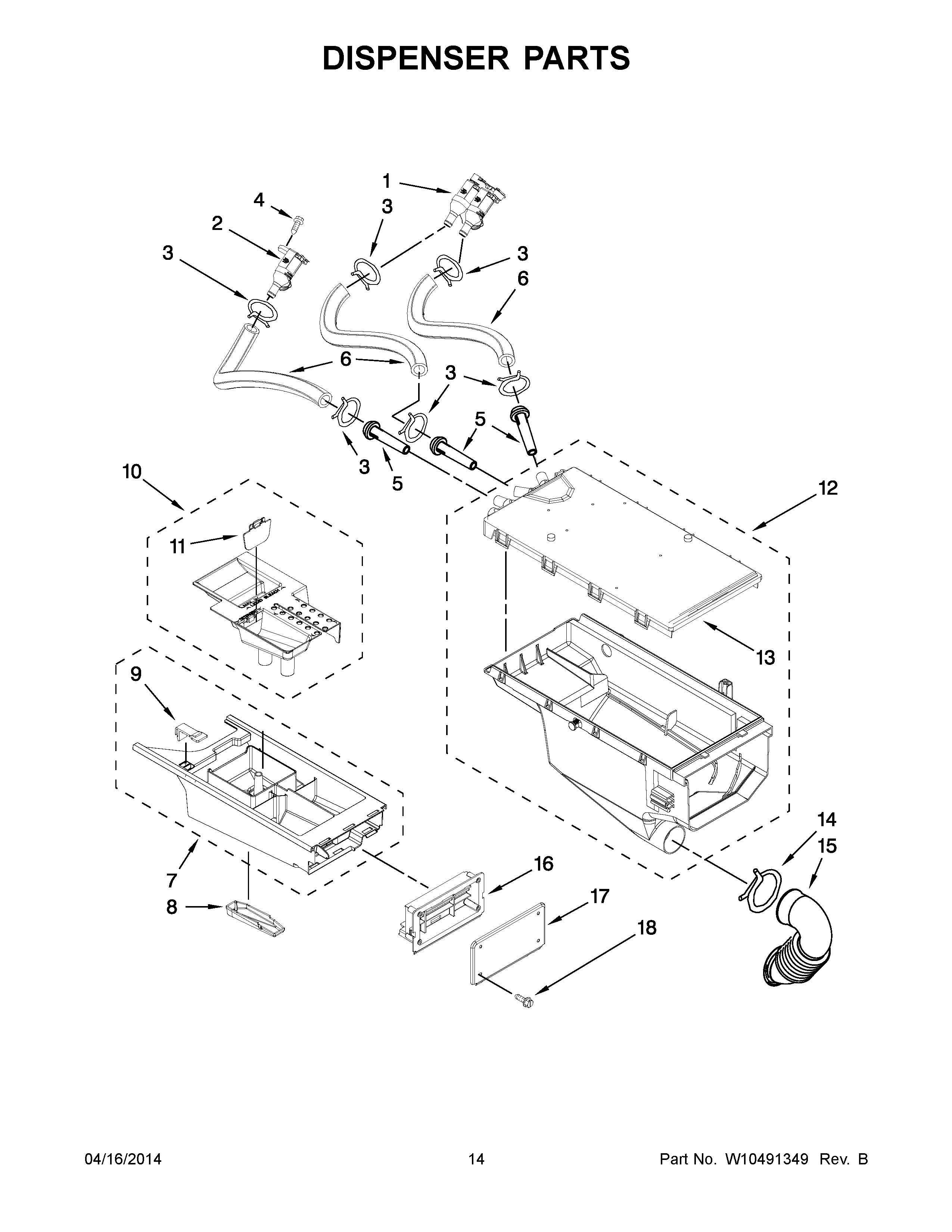

CGT8000AQ0 08 – DISPENSER PARTS

CGT8000AQ0 08 – DISPENSER PARTS

Written by

in

CGT8000AQ0 08 – DISPENSER PARTS

Products

PositionProduct
1WPW10212596 Whirlpool Washer Inlet Valve
2WPW10212598 Whirlpool Valve
3WP596669 Whirlpool Hose Clamp
5WP8183181 Whirlpool Nozzle
6W10803052 Whirlpool Hose
7W10395619 Whirlpool Washer Dispenser Drawer
8WP8540399 Whirlpool Cover Assembly
9WPW10198458 Whirlpool Retainer
10W10433390 Whirlpool Dispenser
11WPW10298953 Whirlpool Door Assembly
12W10364594 Whirlpool Dispenser
13WPW10212604 Whirlpool Plate
14W11622908 Whirlpool Dishwasher Clamp
15W11366227 Whirlpool Washer Dispenser Hose
16WPW10405607 Whirlpool Handle
17W10198368 Whirlpool Overlay
18WPW10137456 Whirlpool Screw
