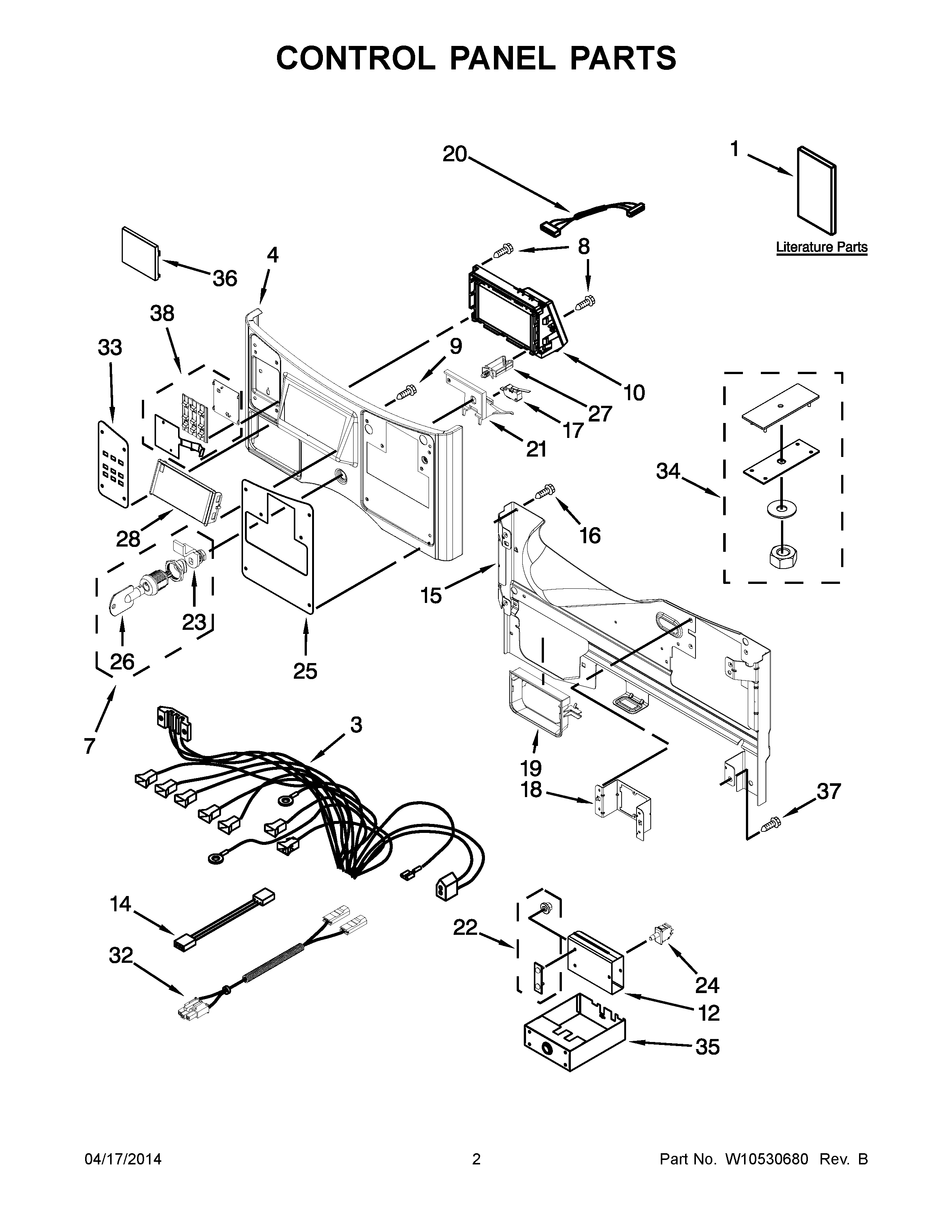

CGT8000AQ1 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10198367 Whirlpool Bezel
NI	W10198451 Whirlpool Cover Reader
1	SHEET, TECH
1	INSTRUCTIONS, INSTALLATION
3	WPW10242899 Whirlpool Wire Harness
4	W11181684 Whirlpool Control Panel
7	W10198223 Whirlpool Cam Lock
8	WPW10273971 Whirlpool Screw
9	3400408 Whirlpool Screw
10	W10827641 Whirlpool Electronic Control Board
12	W11204020 Whirlpool Box
14	W10342214 Whirlpool Wire Harness
15	BRACKET, CONSOLE
16	WP488729 Whirlpool Refrigerator Door Screw
17	WPW10447152 Whirlpool VLT Switch
18	W10198322 Whirlpool Bracket
19	W10198345 Whirlpool Collar
20	W11700545 Whirlpool Wire Harness
21	W10198375 Whirlpool Support
22	W10159907 Whirlpool Bracket
23	W11165684 Whirlpool Cam
24	WPW10131838 Whirlpool Voltage Switch
25	W10198335 Whirlpool Overlay
26	KEY
27	CLIP, TUBE
28	W10198390 Whirlpool Cover
32	W10300896 Whirlpool Wire Harness
33	W10198331 Whirlpool Push Button
34	W11416034 Whirlpool Security Kit
35	W11204019 Whirlpool Coin Box
36	COVER PD/PN
37	WPW10131119 Whirlpool Screw
38	WPW10198199 Whirlpool Switch
