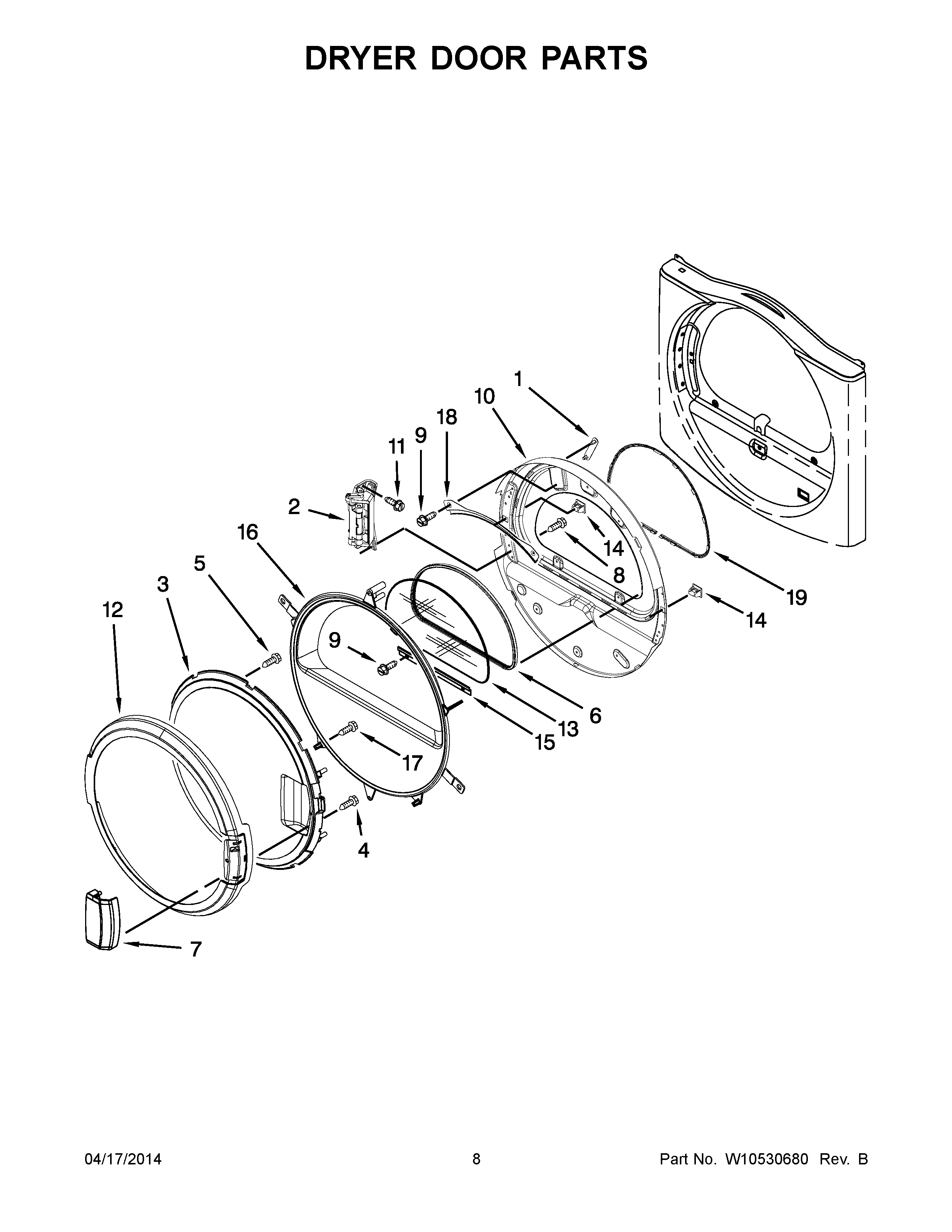

CGT8000AQ1 05 – DRYER DOOR PARTS

CGT8000AQ1 05 – DRYER DOOR PARTS

Written by

in

CGT8000AQ1 05 – DRYER DOOR PARTS

Products

PositionProduct
18565119 Whirlpool Plug
2ASSEMBLY, DOOR HINGE
3ASSEMBLY, DOOR INTERMEDIATE
4SCREW
53400618 Whirlpool Screw
6W11706993 Whirlpool Seal
8WPW10159996 Whirlpool Screw
9WP3373329 Whirlpool Dishwasher Screw
10WPW10421900 Whirlpool Door Assembly
11WP355515 Whirlpool Screw
12OUTER RING, DOOR
13WPW10286878 Whirlpool Window
14279570 Whirlpool Dryer Door Latch Kit
15W10822054 Whirlpool Retainer
16WINDOW
17WP8534022 Whirlpool Screw
188519356 Whirlpool Retainer
19WPW10407973 Whirlpool Door Seal
