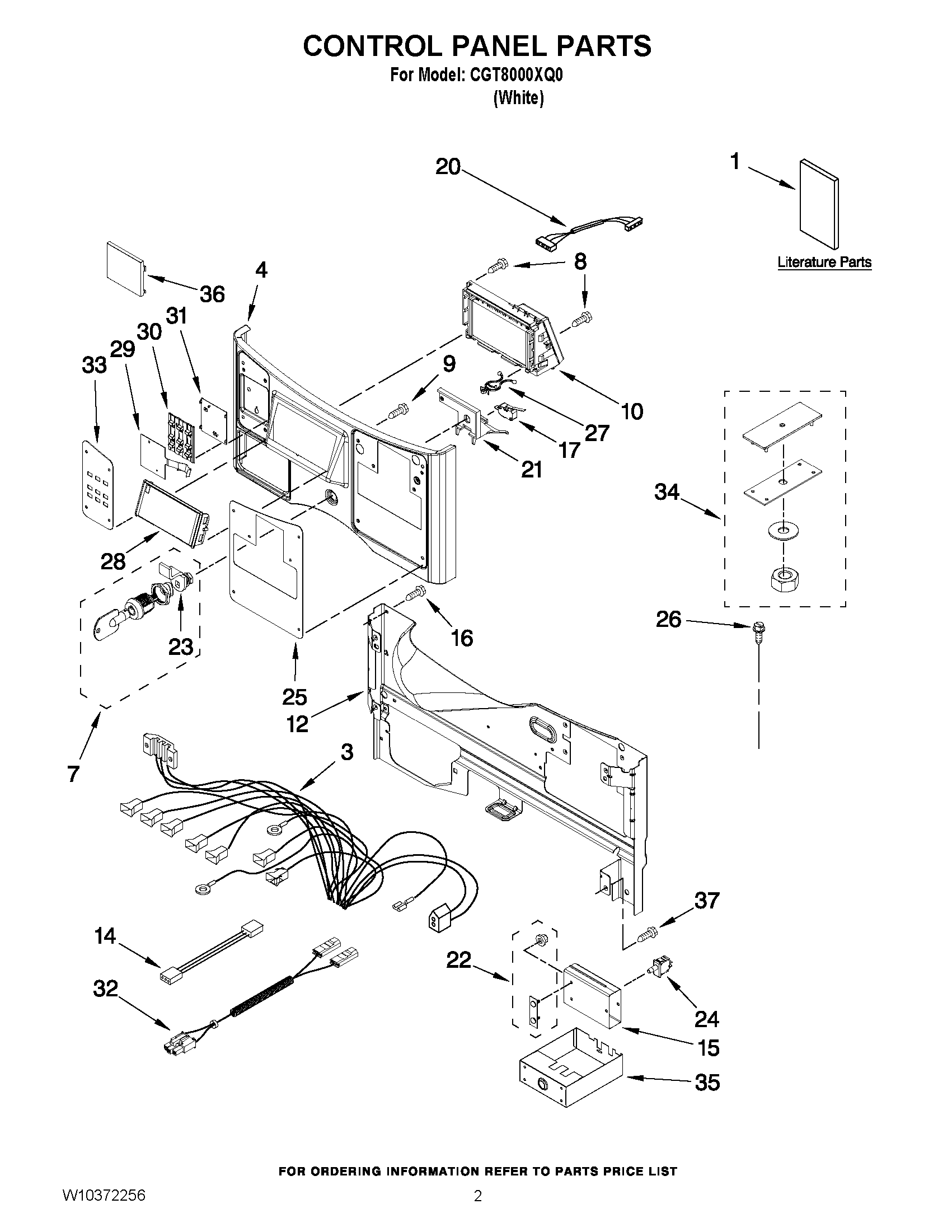

CGT8000XQ0 01 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10372256
1	TECH SHEET
1	INSTALLATION INSTRUCTION
3	HARNESS, MAIN
4	PANEL ASSEMBLY
7	SERVICE & PROGRAMMING LOCK
8	SCREW
9	SCREW, 4-40 X 5/8
10	TECHBOX ASSEMBLY
12	VAULT BODY, ASSEMBLY
14	MAY W10342214
15	MAY W10198303
16	SCREW
17	MAY W10133280
20	MAY W10242897
21	SUPPORT-CONSOLE
22	MOUNTING STRAP, WELD ASSEMBLY
23	CAM-LOCK
24	MAY W10131838
25	MAY W10198335
27	Clip, Wire
28	WINDOW-DISPLAY
29	MAY W10198342
30	MAY W10198311
31	MAY W10198383
32	MAY W10300896
33	MAY W10198331
34	MAY W10169579
35	COIN BOX
36	MAY W10198366
37	SCREW
