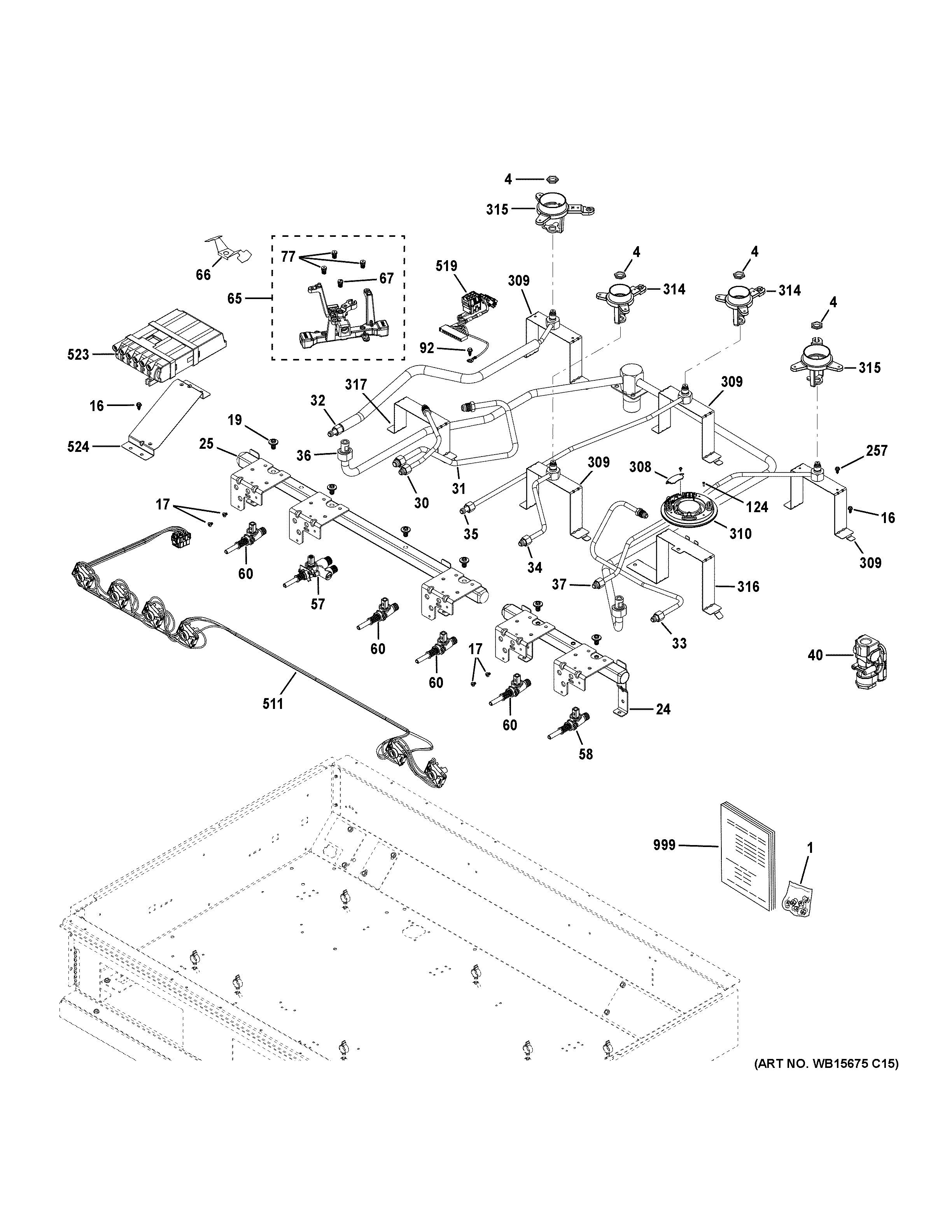

CGU366P2T1S1 GAS & BURNER PARTS

Products

Position	Product
1	WB28X39726 GE High Altitude Natural Gas Conversion Kit
1	WB28X40688 GE LP Conversion Kit
1	WB28X40687 GE LP Conversion Kit
4	WB01K10037 GE Oven Economic Nut
16	SCREW
17	WB01K10002 GE Oven Screw 8-32
19	WB01K10067 GE Oven Screw 1/4" HD 20
24	PIPE MANIFOLD
25	PIPE MANIFOLD
30	TUBE AND NUT SIMMER SUPPLY INJET MULTI R
31	TUBE AND NUT MAIN SUPPLY INJET MULTI RIN
32	TUBE SUPPLY GRILL
33	WB28X39389 GE Simmer Supply Tube and Nut
34	TUBE SUPPLY FRONT BURNER
35	TUBE SUPPLY REAR BURNER
36	WB28X39508 GE Manifold Dual Pipe
37	TUBE SUPPLY REAR BURNER
40	WB21X39660 GE Gas Regulator Pressure
57	WB21X43803 GE Burner Valve 3R 310
58	WB21X39510 GE Vortex Single Valve
60	VALVE BURNER 270
65	WB16X28867 GE Stove Burner Injector Assembly
66	WB02X41668 GE Ground Strap
67	WB28X29600 GE Oven Orifice Spud
77	WB28X28843 GE Oven Natural Gas Orifice Spud
92	WB1X1261 GE Oven Screw
124	WB01K10043 GE Oven Screw
257	SCR 8-18 AB IHW 3/8 SN
308	COVER INJET VORTEX
309	BRACKET INJET
310	LP INJET VORTEX ASM
310	WB16X39954 GE Vortex Injector Assembly
314	WB02X24726 GE Range Injector Large
315	WB02X24725 GE Oven Inlet XLV2
316	BRACKET INJET
317	WB34X39746 GE Injector Bracket
511	WB18X39323 GE Burner Box Harness
519	WB18X40520 GE Spark Module Harness
523	WB13X39923 GE Spark Module
524	WB34X28667 GE Ignition Module Bracket
999	PM MINI MANUAL AND WIRING
999	PM INSTALL INSTRUCTIONS
999	WB02T10111 GE Cleaner Stainless Steel
999	PM ATTENTION INSTALLER
999	PM OWNERS MANUAL
