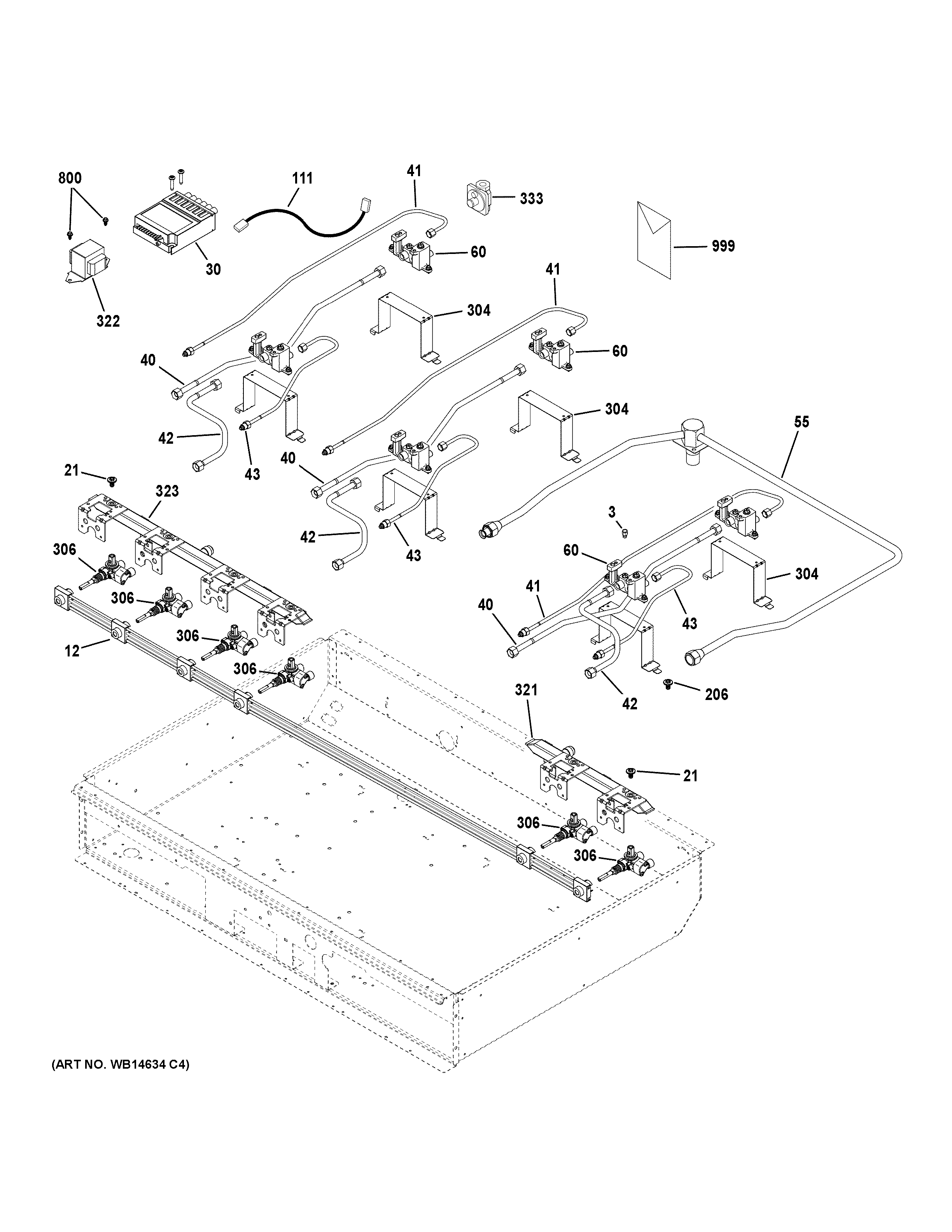

CGU366SEH2SS GAS & BURNER PARTS

Products

Position	Product
3	WB28K10530 GE Oven Grill Spud Orifice
3	WB28T10117 GE Oven LP Main Orifice Spud
3	WB28T10118 GE Oven LP Main Orifice Spud
3	WB28T10159 GE Oven NG Simmer Orifice Spud
3	WB28T10155 GE Oven NG Main Orifice Spud
3	WB28K10529 GE Oven Griddle Spud Orifice
12	WB18X31496 GE Burner Box Harness
21	WB01K10067 GE Oven Screw 1/4" HD 20
30	MODULE SPARK
40	WB28K10509 GE Nut and Tube Assembly
41	WB28K10511 GE Tube and Nut Assembly
42	WB28K10510 GE Oven Tube and Nut Assembly
43	WB28K10512 GE Tube and Nut Assembly
55	WB28K10731 GE Oven Swaged Elbow Assembly
60	WB28T10114 GE Oven Injector Burner 18K
111	WB18K10050 GE Oven Harness
206	WB01K10091 GE Oven Screw
304	WB02K10192 GE Range Injection Bracket
306	VALVE DUAL
321	WB28K10549 GE Manifold Pipe Assembly
322	WB27K10298 GE Oven Transformer
323	WB28K10534 GE Left Pipe Manifold Assembly
333	WB21K10137 GE Oven Regulator
800	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
999	WB02T10111 GE Cleaner Stainless Steel
999	WB02K10359 GE Oven Mastic Tape 4 in x 2 in
999	PM INSTALL INSTRUCTIONS
999	PM MINI MANUAL
999	PM OWNERS MANUAL
