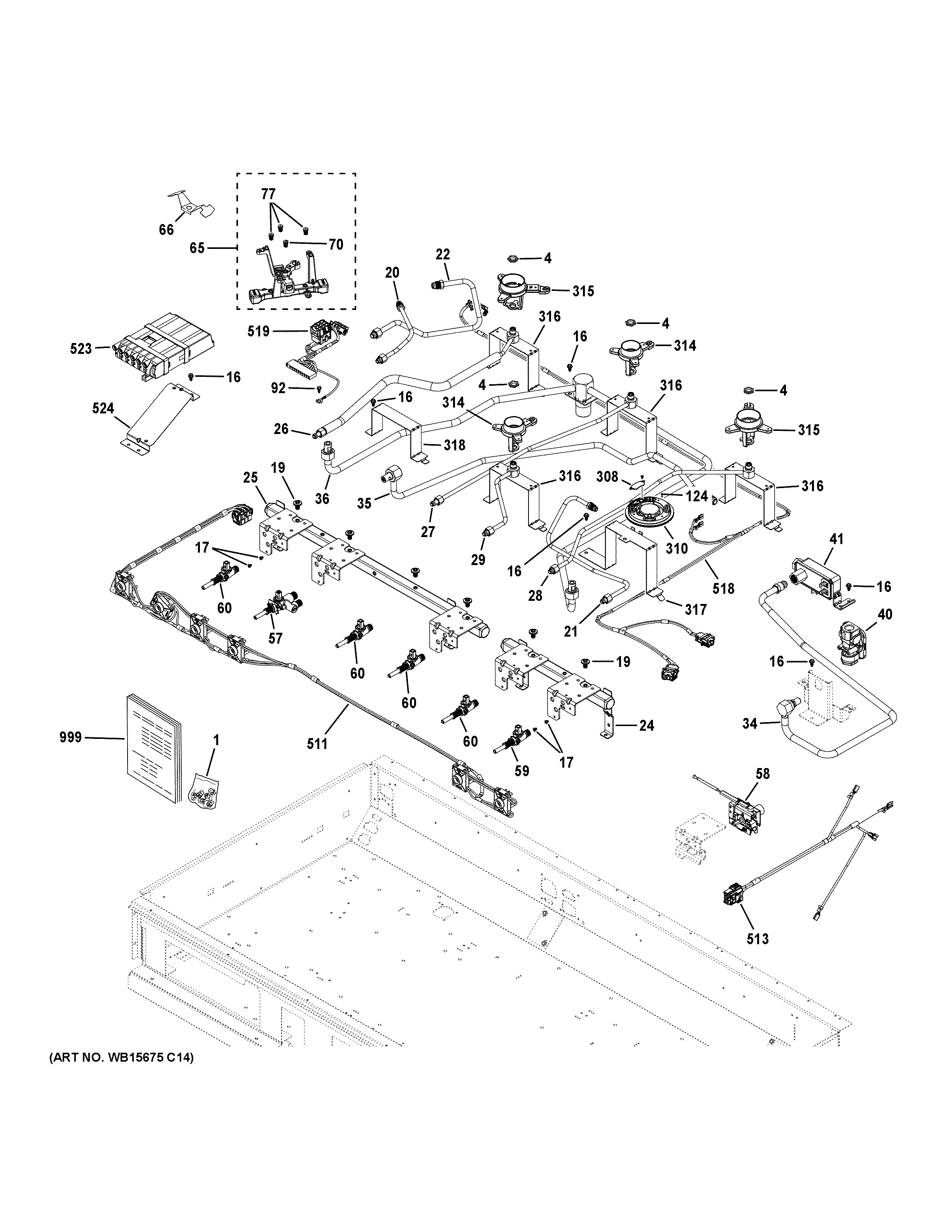

CGU486P2T1S1 GAS & BURNER PARTS

Products

Position	Product
1	WB28X39728 GE High Altitude Natural Gas Conversion Kit
1	WB28X39729 GE High Altitude Propane Burner
1	WB28X40688 GE LP Conversion Kit
4	WB01K10037 GE Oven Economic Nut
16	SCREW
17	WB01K10002 GE Oven Screw 8-32
19	SCR 8 HD 1/4 – 20
20	TUBE AND NUT SIMMER SUPPLY INJET MULTI R
21	WB28X39389 GE Simmer Supply Tube and Nut
22	TUBE AND NUT MAIN SUPPLY INJET MULTI RIN
24	PIPE MANIFOLD
25	PIPE MANIFOLD
26	TUBE SUPPLY GRILL
27	TUBE SUPPLY REAR BURNER
28	TUBE SUPPLY REAR BURNER
29	TUBE SUPPLY FRONT BURNER
34	WB28X39402 GE Griddle Supply Tube and Nut
35	TUBE AND NUT SUPPLY GRIDDLE
36	WB28X39508 GE Manifold Dual Pipe
40	WB21X39660 GE Gas Regulator Pressure
41	WB21X39606 GE Single Safety Valve
57	WB21X43803 GE Burner Valve 3R 310
58	WB24X39677 GE Thermostat
59	WB21X39510 GE Vortex Single Valve
60	VALVE BURNER 270
65	WB16X28867 GE Stove Burner Injector Assembly
66	WB02X41668 GE Ground Strap
70	WB28X29600 GE Oven Orifice Spud
77	WB28X28843 GE Oven Natural Gas Orifice Spud
92	WB1X1261 GE Oven Screw
124	WB01K10043 GE Oven Screw
308	COVER INJET VORTEX
310	WB16X39954 GE Vortex Injector Assembly
310	LP INJET VORTEX ASM
314	WB02X24726 GE Range Injector Large
315	WB02X24725 GE Oven Inlet XLV2
316	BRACKET INJET
317	BRACKET INJET
318	WB34X39746 GE Injector Bracket
511	WB18X39323 GE Burner Box Harness
513	HARNESS THERMOSTAT EXT
518	HARNESS THERMOSTAT
519	HARNESS SPARK MODULE
523	WB13X39923 GE Spark Module
524	WB34X28667 GE Ignition Module Bracket
999	PM INSTALL INSTRUCTIONS
999	PM MINI MANUAL AND WIRING
999	PM OWNERS MANUAL
999	PM ATTENTION INSTALLER
