CGU486SDL1SS CONTROL PANEL

CGU486SDL1SS CONTROL PANEL

Written by

in

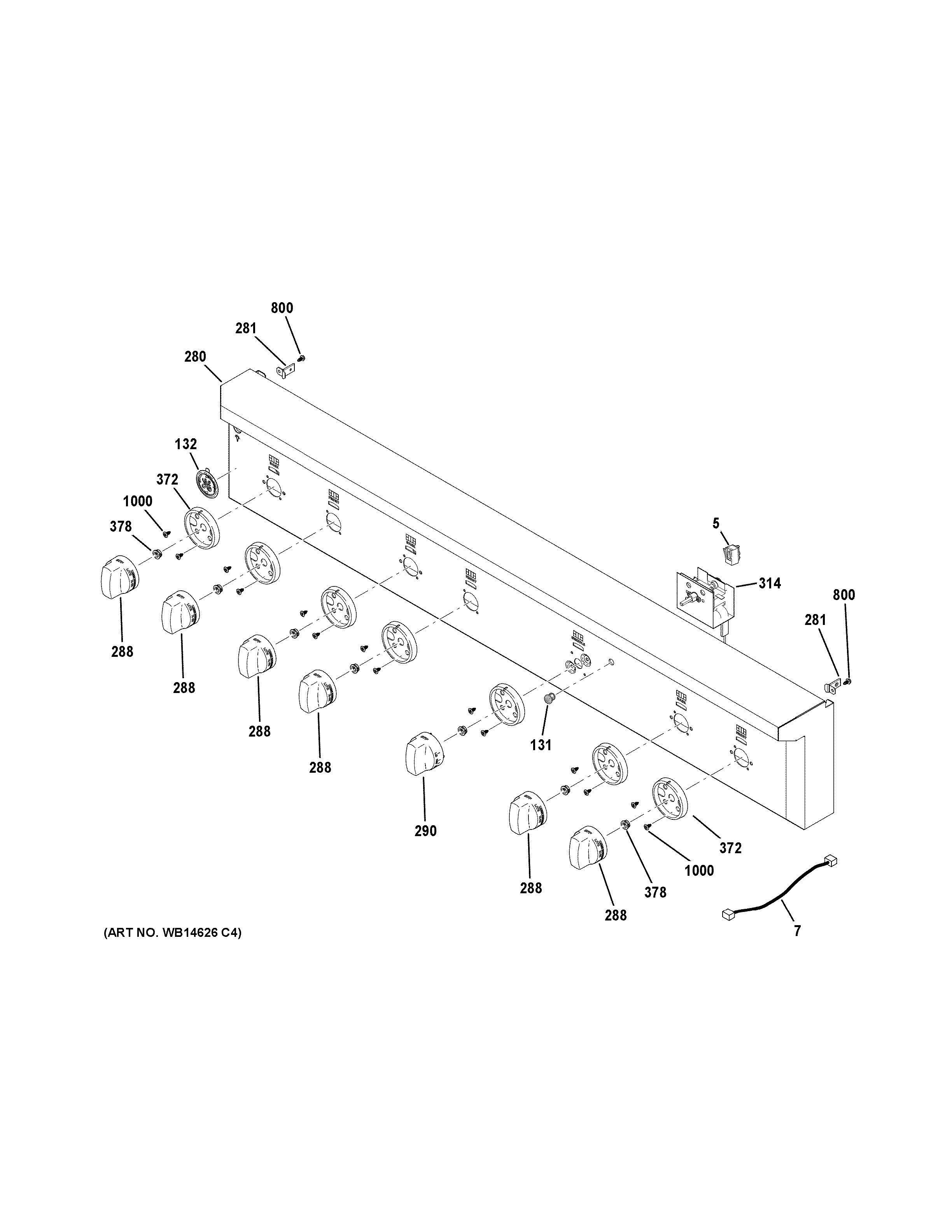

CGU486SDL1SS CONTROL PANEL

Products

PositionProduct
5LAMP PILOT
7WB18K10085 GE Harness
131LENS
132BADGE GE ASM
280WB36X30228 GE Control Panel and Rail Assembly
281WB02K10211 GE Range Bracket Control Panel
288WB03X30219 GE Knob Assembly
290KNOB ASM GRIDDLE
314WB21K10136 GE Oven Thermostat Assembly
372BEZEL KNOB
378WB02K10217 GE Bushing Bezel
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1000WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
