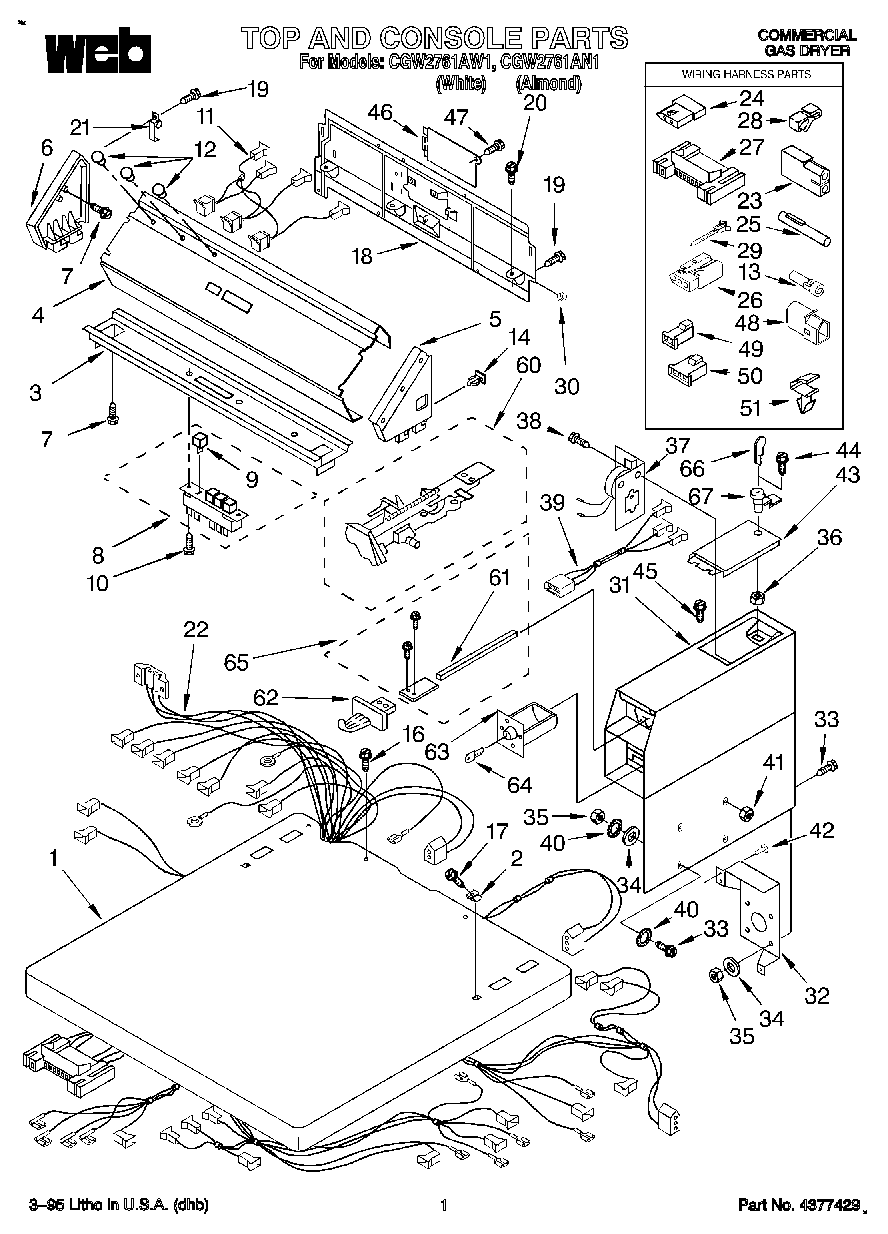

CGW2761AN1 01 – TOP AND CONSOLE

Products

Position	Product
1	Top, Cabinet (White)
1	Top, Cabinet (Almond)
2	WP357213 Whirlpool Hinge Stopper
3	Bracket, Control
4	Panel, Control
5	Cap, End (R.H.)
6	Cap, End (L.H.)
7	WPW10109200 Whirlpool Screw
8	Switch, Pushbutton
9	Button (4)
10	WP965173 Whirlpool Dishwasher Screw
11	Lights, Indicator (240 Volts)
12	WP3348109 Whirlpool Light Lens
13	Plug
14	WP689559 Whirlpool Nut
16	SCREW
17	WP388326 Whirlpool Screw
18	Panel, Rear (Upper)
19	WP488729 Whirlpool Refrigerator Door Screw
20	WP489069 Whirlpool Compactor Screw
21	Hinge, Console (2)
22	Harness, Main
23	Receptacle, Latching (2-Way) (Uses Terminal 94614)
24	WP717253 Whirlpool Dishwasher Connector
25	Receptacle
26	Receptacle, 3-Way Terminal (Use W/94614)
27	3395683 Whirlpool Connector
28	Clip, Ground
29	WP3391018 Whirlpool Wire Tie
30	Bushing, Snap
31	Case, Meter (Almond)
31	Meter Case (For White Model)
32	Bracket, Meter Case (White)
32	Bracket, Meter Case (Almond)
33	Bolt, 5/16-18 x 3/4 (3)
34	WP348197 Whirlpool Washer Assembly
35	90984 Whirlpool Nut
36	WP90406 Whirlpool Nut
37	Timer
38	Screw, 1/4 x 20 x 3/8
39	Harness, Timer
40	Washer
41	Nut, Break- A-Way (2)
42	Rivet (3)
43	W11283272 Whirlpool Washer Dryer Meter Case Access Door
43	Door, Service (For Almond Model)
44	Screw & Washer
45	Screw, No. 10
46	Cover, Terminal Block
47	WP308685 Whirlpool Microwave Screw
48	353424 Whirlpool Connector
49	Connector, 2-Position (Gas Valve)
50	Connector, 3-Position (Gas Valve)
51	WP3394427 Whirlpool Clip
