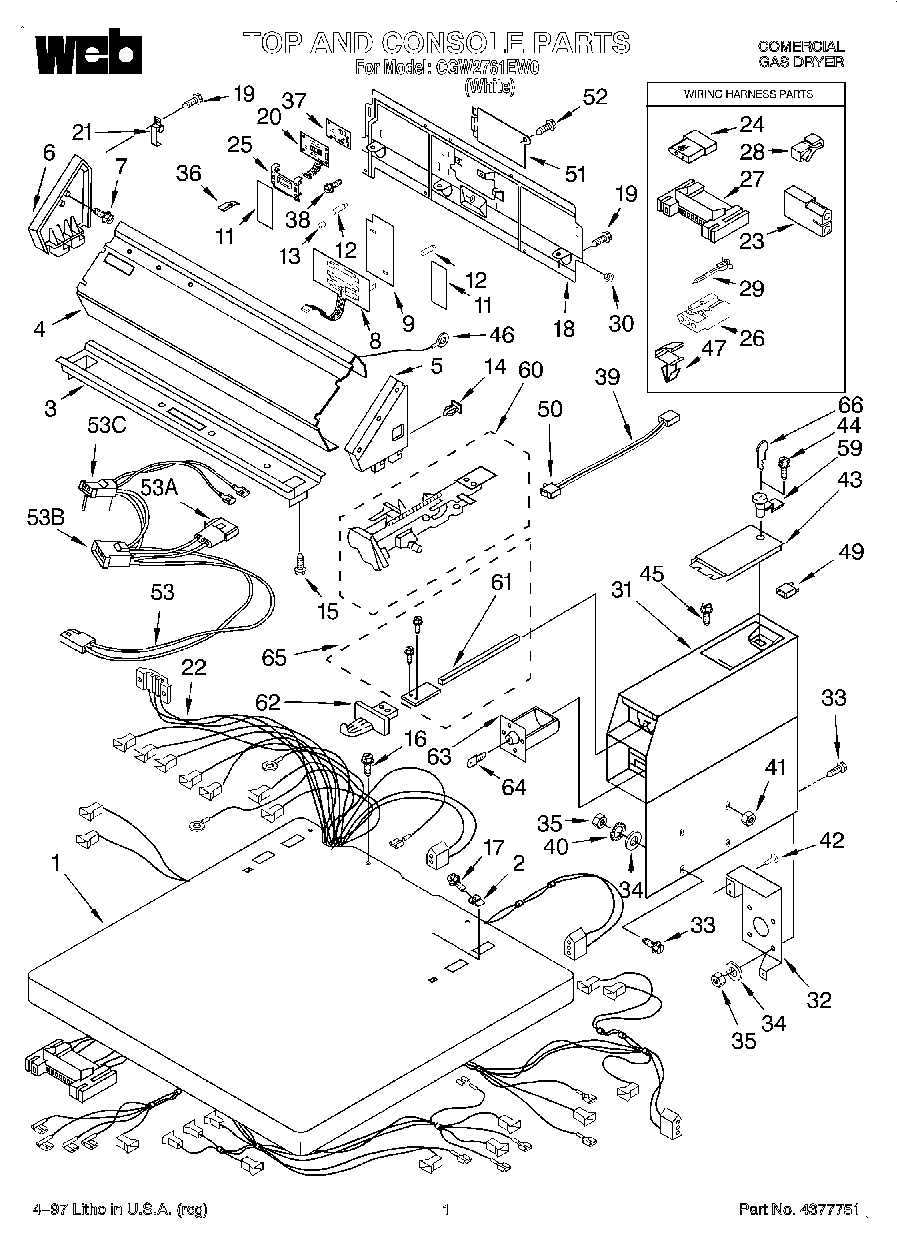

CGW2761EW0 01 – TOP AND CONSOLE

Products

Position	Product
1	Top, Cabinet (White)
2	WP357213 Whirlpool Hinge Stopper
3	Bracket, Control
4	Panel, Control
5	Cap, End (R.H.)
6	W11686050 Whirlpool Drive Motor
7	WPW10109200 Whirlpool Screw
8	Switch, Membrane
9	Backer Plate
10	WPW10366705 Whirlpool Screw
11	Backer Plate, Side (2)
12	Mounting Stud
13	Cap, Stud
14	WP689559 Whirlpool Nut
15	Wire, Ground
16	SCREW
17	WP388326 Whirlpool Screw
18	Panel, Rear (Upper)
19	WP488729 Whirlpool Refrigerator Door Screw
20	Display Board
21	Hinge, Console (2)
22	Harness, Main
23	Receptacle, Latching (2-Way) (Uses Terminal 94614)
24	WP717253 Whirlpool Dishwasher Connector
25	Lens, Display
26	WPL 717315
27	3395683 Whirlpool Connector
28	Clip, Ground
29	WP3391018 Whirlpool Wire Tie
30	Bushing, Snap
31	Case, Meter
32	Bracket, Meter Case (White)
33	Bolt, 5/16-18 x 3/4 (3)
34	WP348197 Whirlpool Washer Assembly
35	90984 Whirlpool Nut
36	Clip (2)
37	Control Board
38	WP90767 Whirlpool Screw
39	Wire Harness
40	Washer
41	Nut, Break- A-Way (2)
42	Rivet (3)
43	W11283272 Whirlpool Washer Dryer Meter Case Access Door
44	Screw & Washer
45	Screw, No. 10
46	Wire, Ground
47	WP3394427 Whirlpool Clip
48	686770 Whirlpool Support Bracket
49	Switch, Service Diagnostic
50	Switch, Vault Counter
51	Cover, Terminal Block
52	WP308685 Whirlpool Microwave Screw
53C	WP3403499 Whirlpool Connector
53B	WP3403498 Whirlpool Connector
53	WP3401850 Whirlpool Wire Harness
53A	Plug, 3-Way
