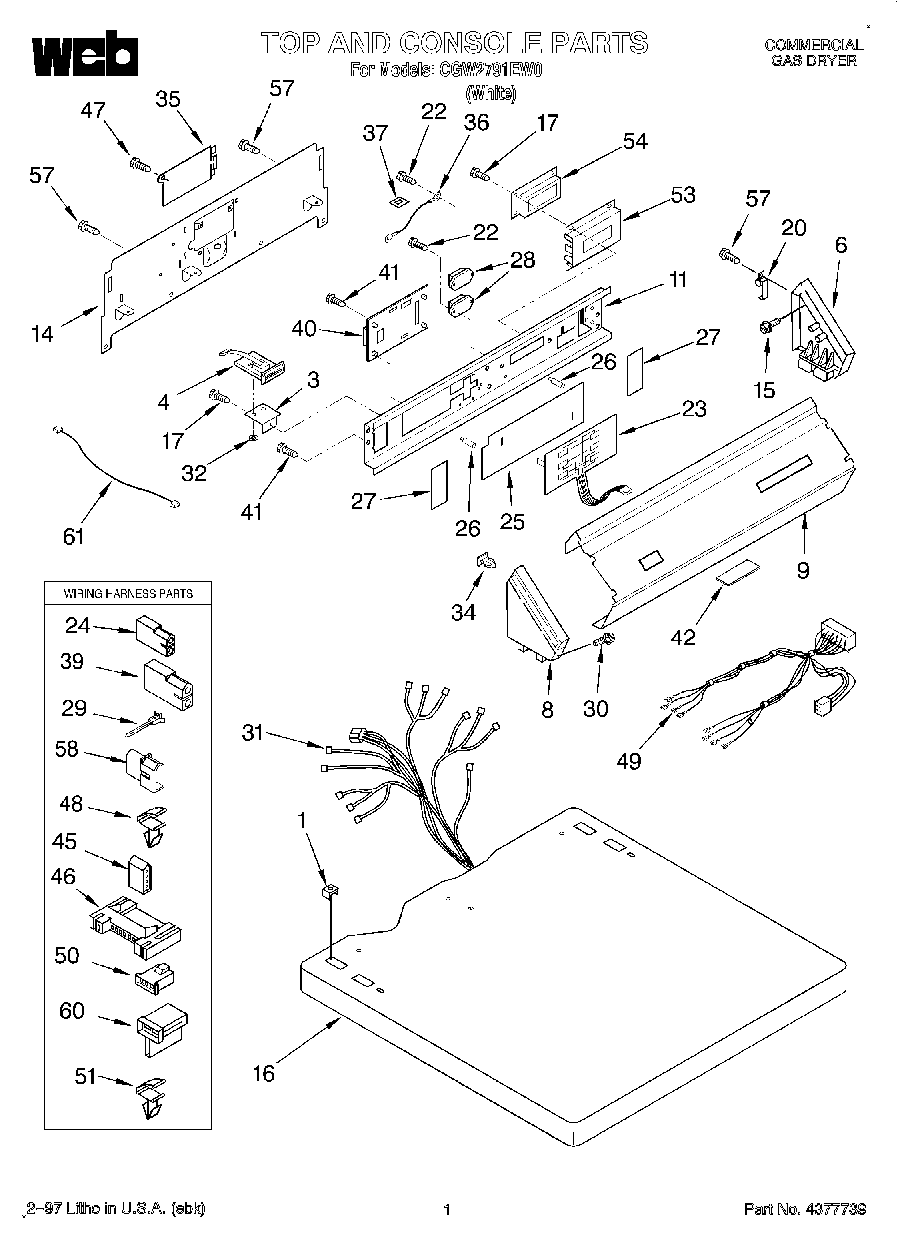

CGW2791EW0 01 – TOP AND CONSOLE

CGW2791EW0 01 – TOP AND CONSOLE

Written by

in

CGW2791EW0 01 – TOP AND CONSOLE

Products

PositionProduct
1WP357213 Whirlpool Hinge Stopper
3Bracket, Card Reader
43949598 Whirlpool CD Reader
6Cap, End (R.H.)
8W11686050 Whirlpool Drive Motor
9Panel, Control
11Bracket, Control
14Panel, Rear
15WPW10109200 Whirlpool Screw
16Top
17WP90767 Whirlpool Screw
20Hinge, Console (2)
22SCREW
23Switch, Membrane
24Receptacle, Latching (2-Way) (Uses Terminal 94614)
25Backer Plate
26Mounting Stud
27Backer Plate, Side (2)
28WP8566493 Whirlpool Relay
29WP3391018 Whirlpool Wire Tie
30WP388326 Whirlpool Screw
31Harness, Wiring
32Nut, Push-In
34WP689559 Whirlpool Nut
35Cover, Terminal Block
36Wire, Ground
37W10113937 Whirlpool Clamp
39WP717253 Whirlpool Dishwasher Connector
40Board, Control
41WPW10366705 Whirlpool Screw
42686770 Whirlpool Support Bracket
45Plug
463395683 Whirlpool Connector
47WP308685 Whirlpool Microwave Screw
49Harness, Console
50WP3403498 Whirlpool Connector
51WP3394427 Whirlpool Clip
53Bezel, Display
54Display, Eletronic
57WP488729 Whirlpool Refrigerator Door Screw
58WPL 717315
60WP3403499 Whirlpool Connector
61VFD Cable
