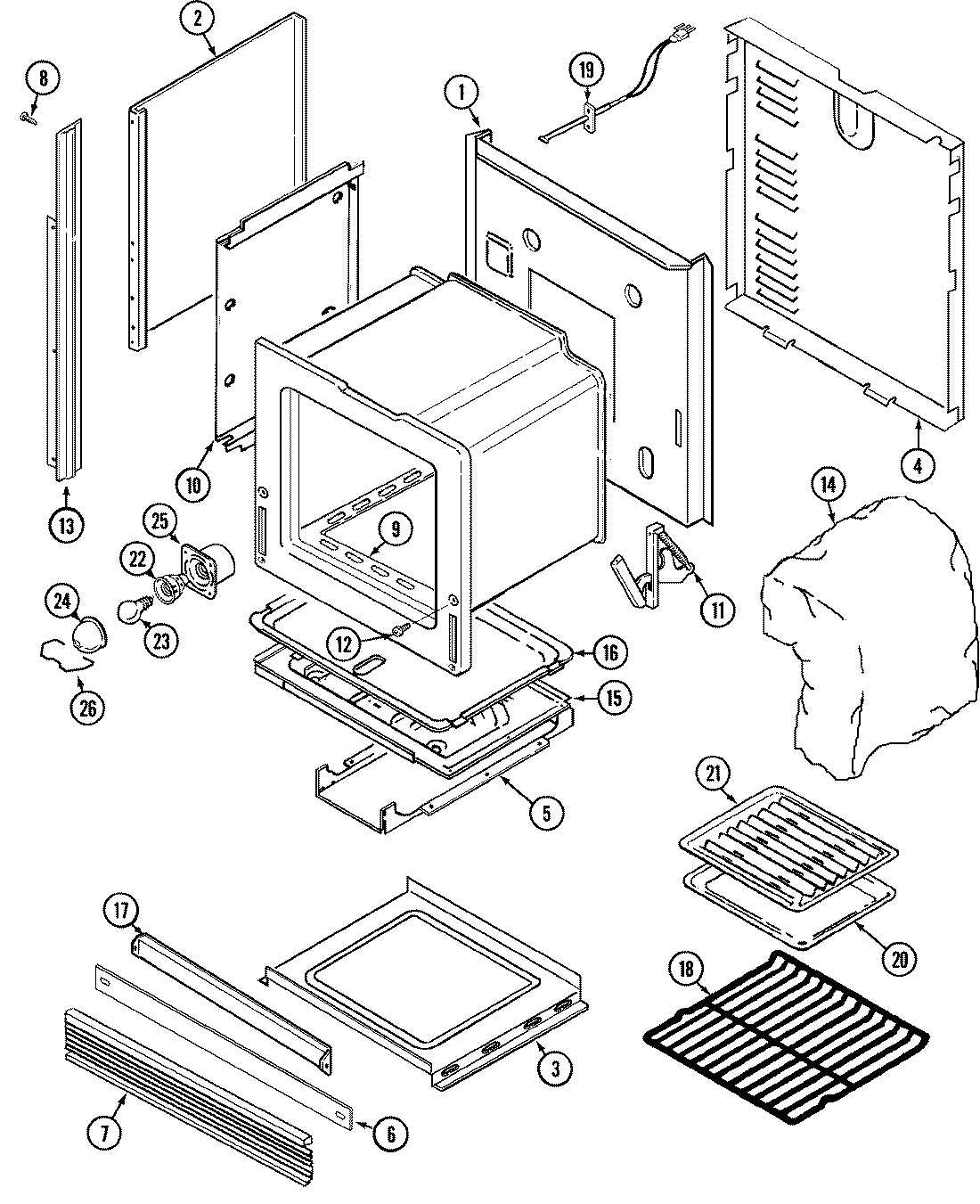

CGW3330ADW 01 – BODY

CGW3330ADW 01 – BODY

Written by

in

CGW3330ADW 01 – BODY

Products

PositionProduct
1MAY 8008P021-60
1MAY 74004108
2MAY 2618F083-51
3MAY 74001742
4MAY 4005F405-51
5MAY 3807F429-51
6MAY 4005F354-71
7MAY 74004130
8SCREW
9MAY 5504A003-19
9MAY 74002377
10MAY 74001436
11HINGE-OVEN DOOR
12SCREW (10-24X5/16-NI)
13MAY 74004136
13MAY 74004135
14MAY 74003036
14MAY 74003503
14WP74010942 Whirlpool Insulation
15MAY 74003242
16MAY 74001651
17BAFFLE, OVEN FRONT
18WPW10282492 Whirlpool Oven Rack
19MAY 74003413
20MAY Y3401F02019
21MAY Y3413F01619
22MAY 74003387
23RANGE ONLY 40W 120V APPL BULB
24MAY 74003389
25MAY 74003388
26MAY 74003391
